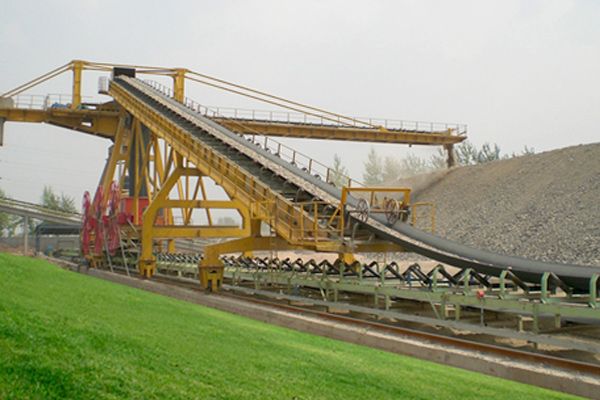

Product Name: Side Cantilever Stacker
Capacity: 250-40,00t/h
Arm Length: 14.5-40m
Handling Material: Coal, coke, limestone, bauxite, iron ore, pellet ore, clay and other bulk materials
As a kind of large-scale blending process equipment used for stacking limestone, iron ore, raw coal and other bulk materials, the cantilever stacker can arrange the different materials in the delamination or sub-line way according to the related requirements.
As a kind of large-scale blending process equipment used for stacking limestone, iron ore, raw coal and other bulk materials, the cantilever stacker can arrange the different materials in the delamination or sub-line way according to the related requirements, as a result, they can have uniform physical performance and property, besides, the normal stacking function and homogenizing function are also available. Therefore, it is mainly used for the raw materials homogenizing treatment in the iron and steel enterprises, chemical engineering, cement and other industries.
With the stacking quantity range and stacking arm range of 50-4000t/h and 11m-50m respectively, our company's side cantilever stacker can make the cross-stockpile operation, stack multiple materials, satisfy the different stacking processes, realize the unmanned operation and integration between machinery, electricity and liquid, therefore, it can be said that the above-mentioned stacker has favorable homogenization effect, small occupation area and high automation degree.

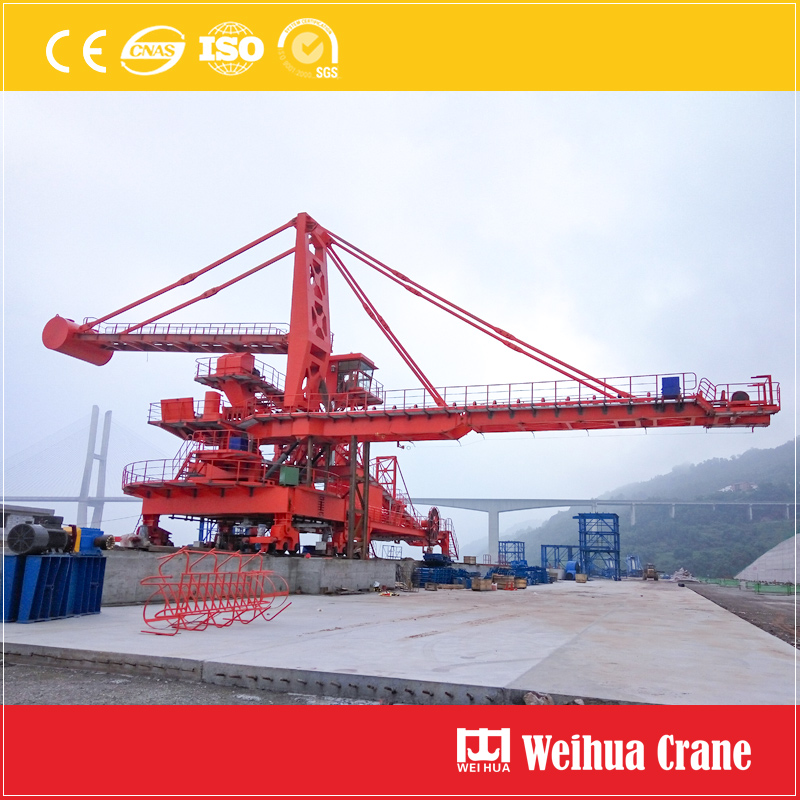

.jpg)

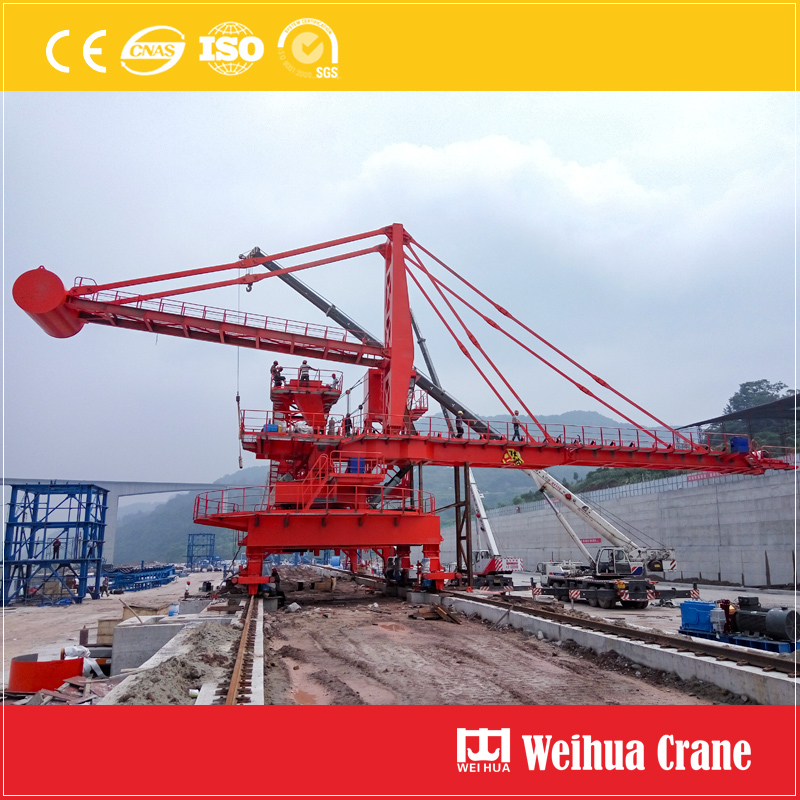

.jpg)
.jpg)
Links: Belt Conveyor | Ship Loader | Bulk Material Stacker and Reclaimer
| Equipment Model | Unit |
DB 250. 145 |
DB 800. 225 |
SDB 500. 15 |
DBH 700. 37 |
DBH 600. 19.5 |
DBH 1500. 27.8 |
DBH 2200.30 |
DBH 3000.35 |
DBH 4000.40 |
|
| Name | Side cantilever stacker | Twin blades | Side cantilever rotary stacker | ||||||||
| Production Capacity | t/h | 250 | 800 | 500 | 700 | 600 | 1500 | 2200 | 3000 | 4000 | |
| Material characteristics | Applicable materials | Coal, coke, limestone, bauxite, iron ore, pellet ore, clay and other bulk materials | |||||||||
| Density | t/m³ | 0.5~2.5 | |||||||||
| Particle size | mm | 0~300 | |||||||||
| Arm length | m | 14.5 | 22.5 | 15 | 37 | 19.5 | 27.5 | 30 | 35 | 40 | |
| Pitching angle | ° | ﹣17~﹢17 | |||||||||
| Conveyor | Bandwidth | mm | 650~2200 | ||||||||
| Belt speed | m/s | 1~4 | |||||||||
| Traveling speed | Forward direction | m/min | 9~15 | ||||||||
| Inversion direction | m/min | 11~20 | |||||||||
| Rail gauge | m | 4 | 4.5 | 4 | 6 | 5 | 6 | 7 | 8 | 8 | |
| Maximum wheel load | KN | 250 | |||||||||
| Recommended steel track | P38/P43/P50 | ||||||||||
| Power supply mode | Cable drum/safety sliding contact line | ||||||||||
| Contact mode | Cable drum/safety sliding contact line/wireless | ||||||||||
| Control mode | PLC program control, manual and single action | ||||||||||
