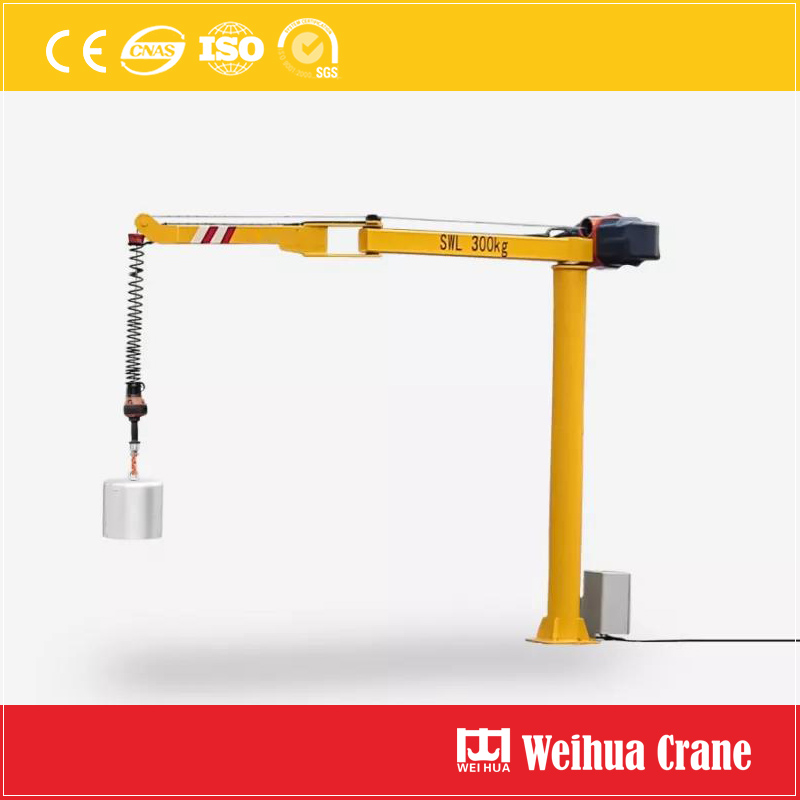

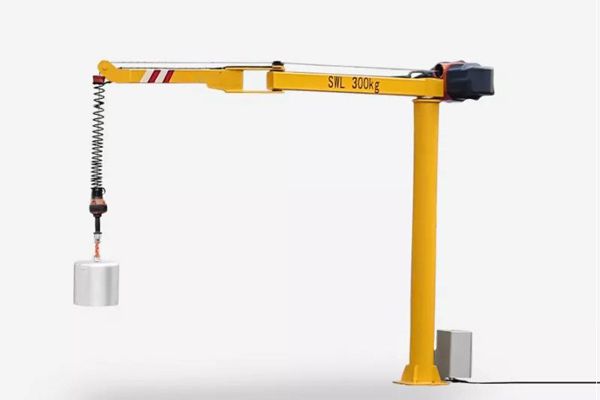

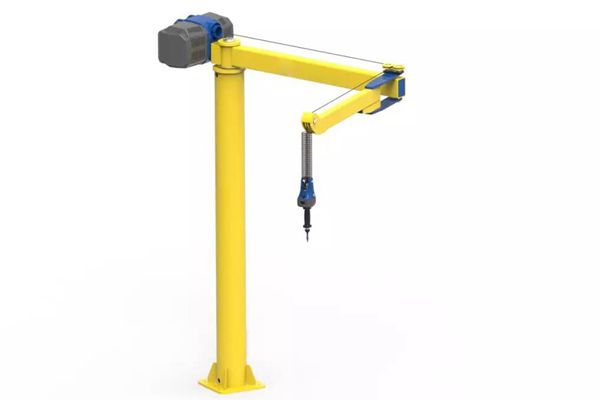

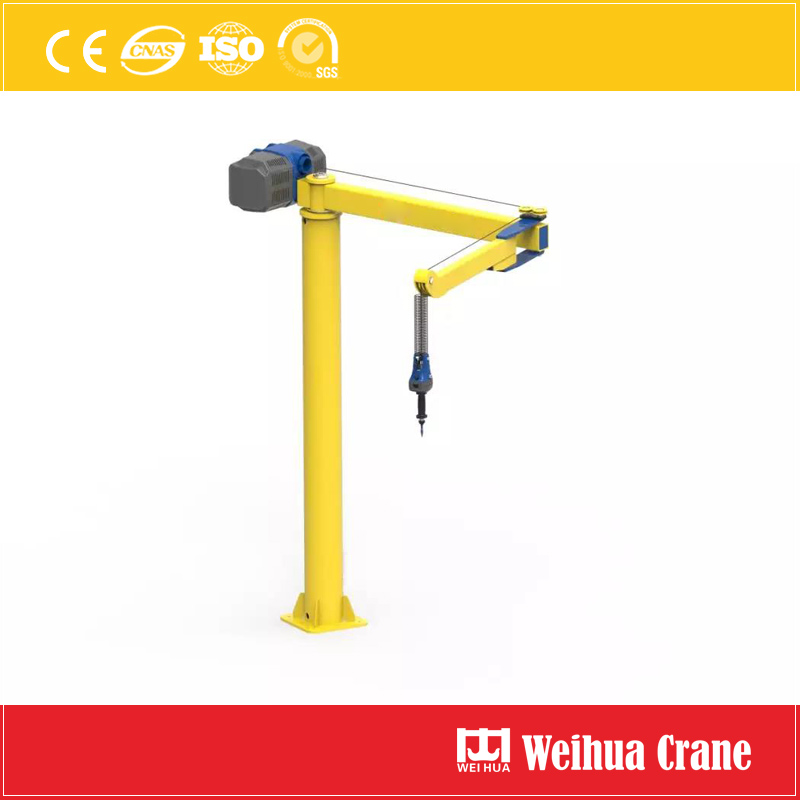

Folding Arm Jib Crane

This jib crane is an intelligent folding arm jib crane with a folding cantilever and intelligent hoisting mechanism. It is mainly composed of a column, a main arm/jib, a folding arm and a smart servo electric hoist. The main arm of the crane can be rotated around the column, and the folding arm can be rotated around the main arm, and the rotation is manual controlled. The pick-up device of the electric hoist can be equipped with spreaders, clamps and suction cups. The control device can be coaxial pressure handles, coaxial slide handles, full touch handles, stepless shifting handles, wireless remote controls, etc. Customized services can be implemented by setting various functions through the expansion port according to various usage conditions.

Application:

Auto assembly, machining, warehouse stacking, tool change, equipment overhaul, repetitive lifting, component assembly, machine manufacturing, assembly, etc.

Features:

1. Easy to install, simple operation, maintenance-free;

2. flexibly switching of hand mode and floating;

3. Stable lifting, less noise;

4. Double limit, safe and reliable;

5. Various control, good support;

6. Excellent human-computer interaction, good scalability;

7. Small hook blind area, large coverage;

8. Combination of rotary and hoisting work, good handling efficiency;

9. The position of the hanging point is under control and accurate positioning;

10. High work duty, speed control, quick operation response.
