Crane Control Handles

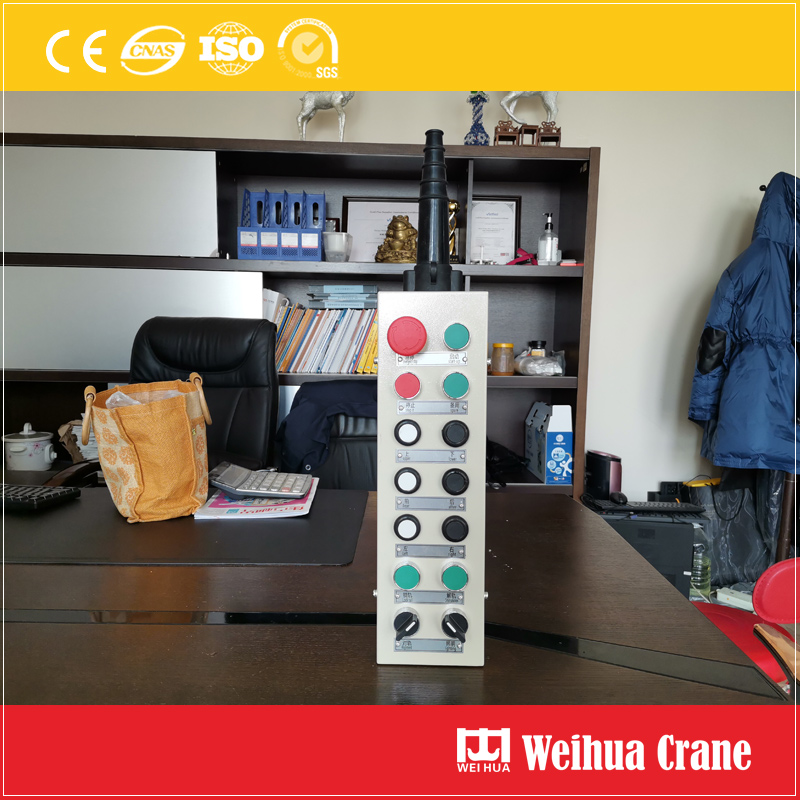

Crane control handles can be a wire pendant, wireless remote control or radio control, etc. It can be used to control electric hoist, trolley crab, open winch hoist, etc. on the overhead crane or gantry crane. The wire pendant is usually with rated voltage below 500V, rated current below 15A, which can work in the rain and snow, dusty environment. The wireless remote control handle are different in size. It can be a handle piece or a control panel with joystick (This kind is for large cranes).

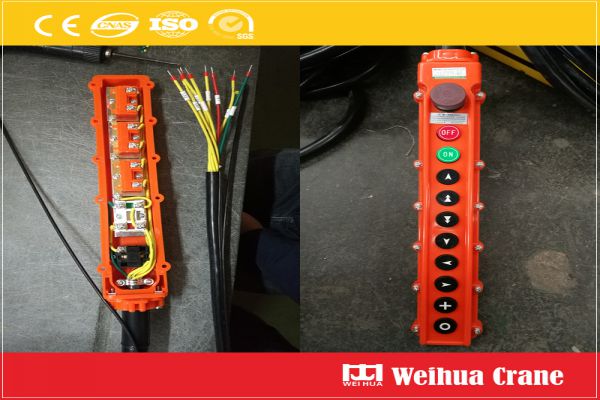

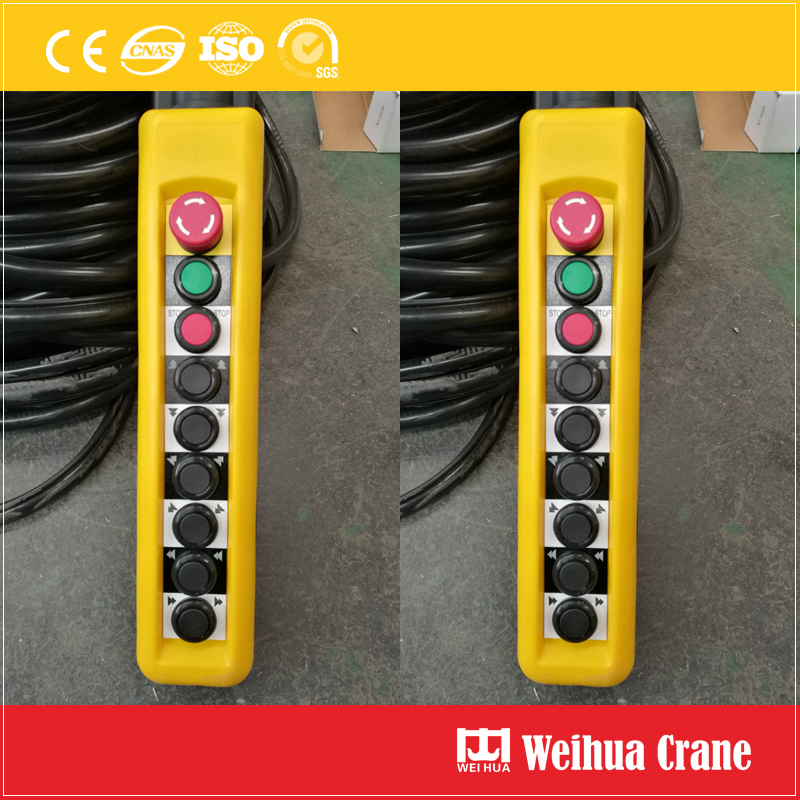

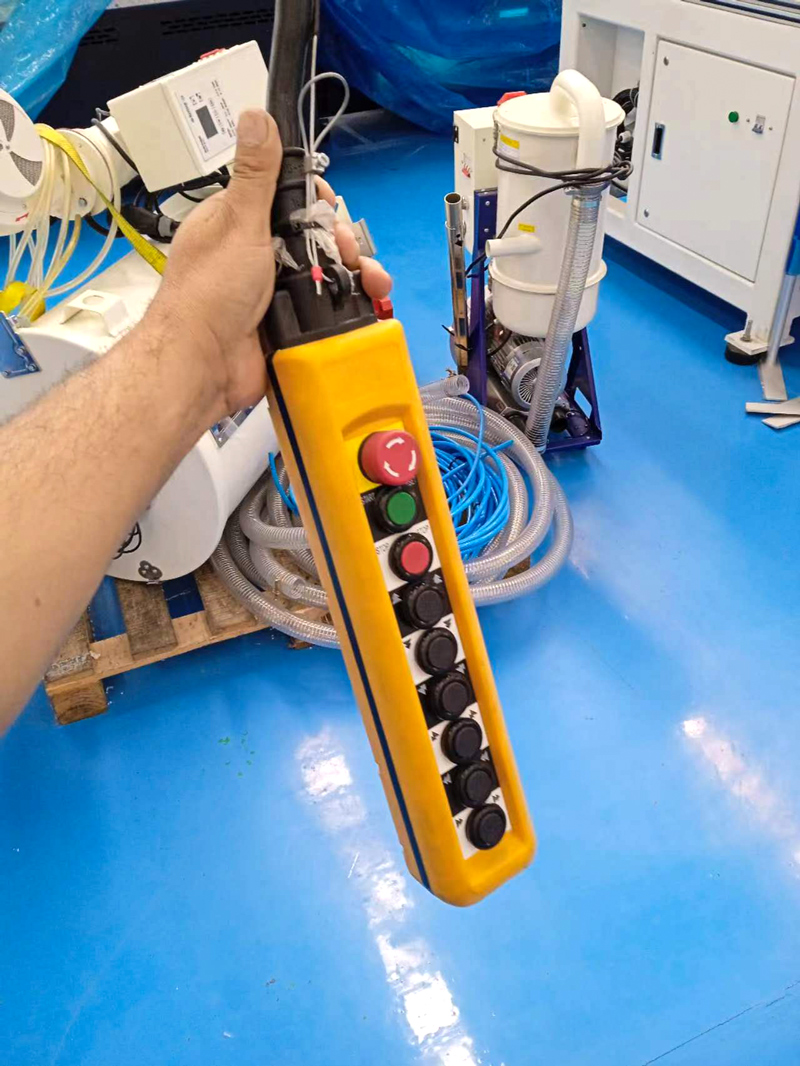

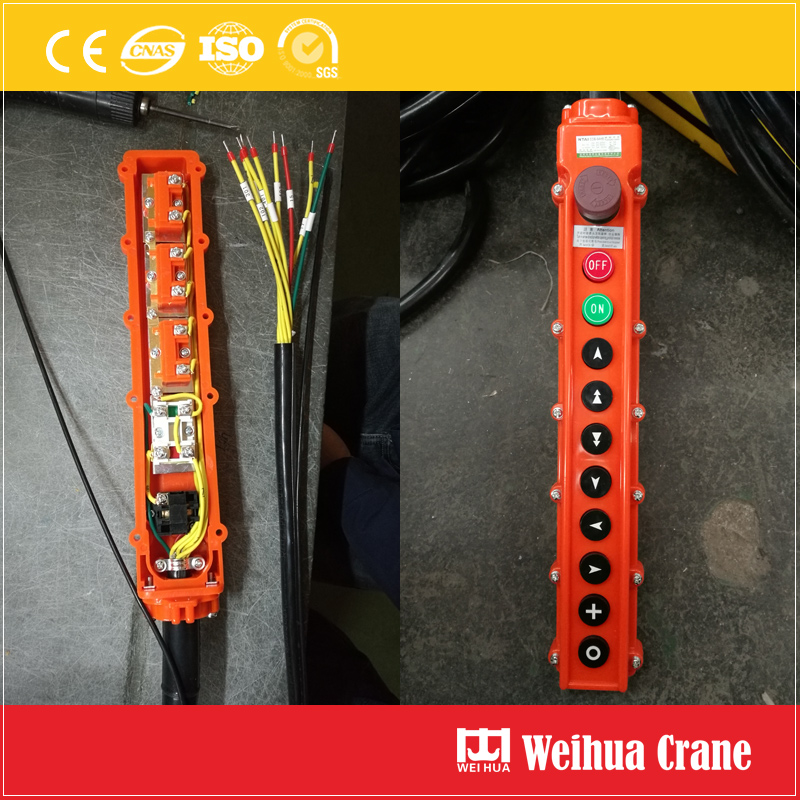

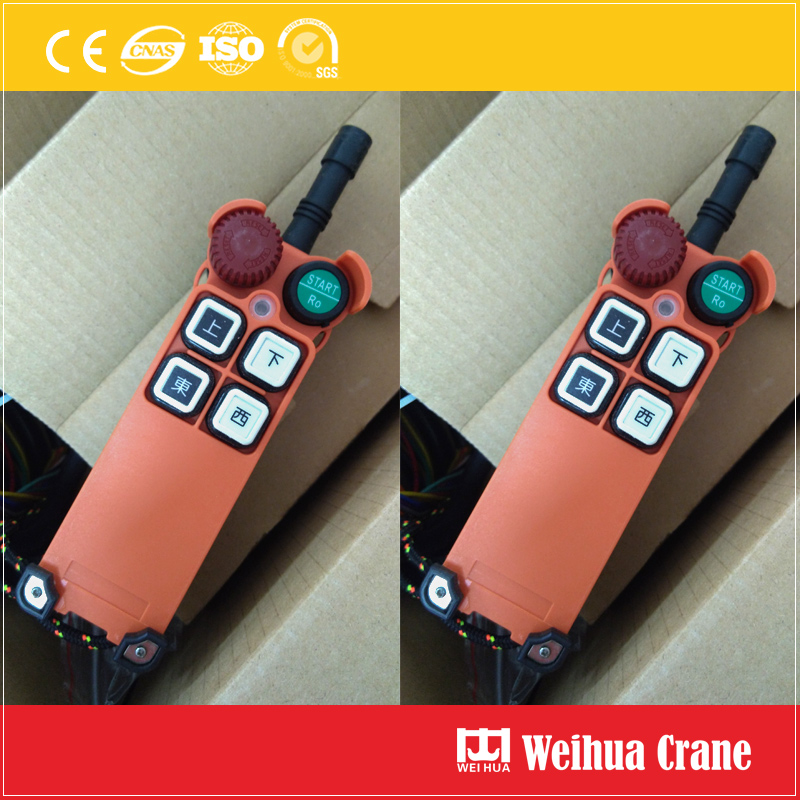

Features of Wire Pendant and Wireless Handle Piece.

1. Nylon fiber shell, glass fiber, strong and durable;

2. Fixing screws, easy to install and simple;

3. Dust-proof structure, metal contact keys, feel comfortable;

4. ABS plastic body with good-looking appearance and reasonable structure.

5. Rubber cable sleeve and waterproof seal.

6. Simplified circuit for safety operation.

7. COB button.

8. Contact resistance ≤50M.

9. Mechanical life: Momentary type: press 1 million times, Emergency stop self-locking button: press 50,000 times.

10. Electric life: Emergency stop self-locking button: press 50,000 times.

11. Protection: IP65.

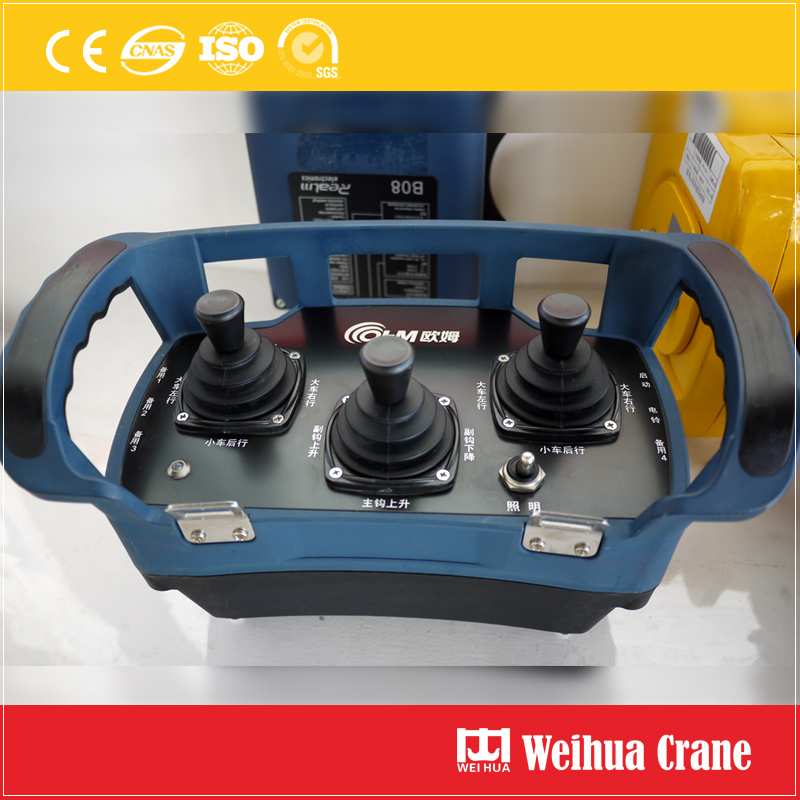

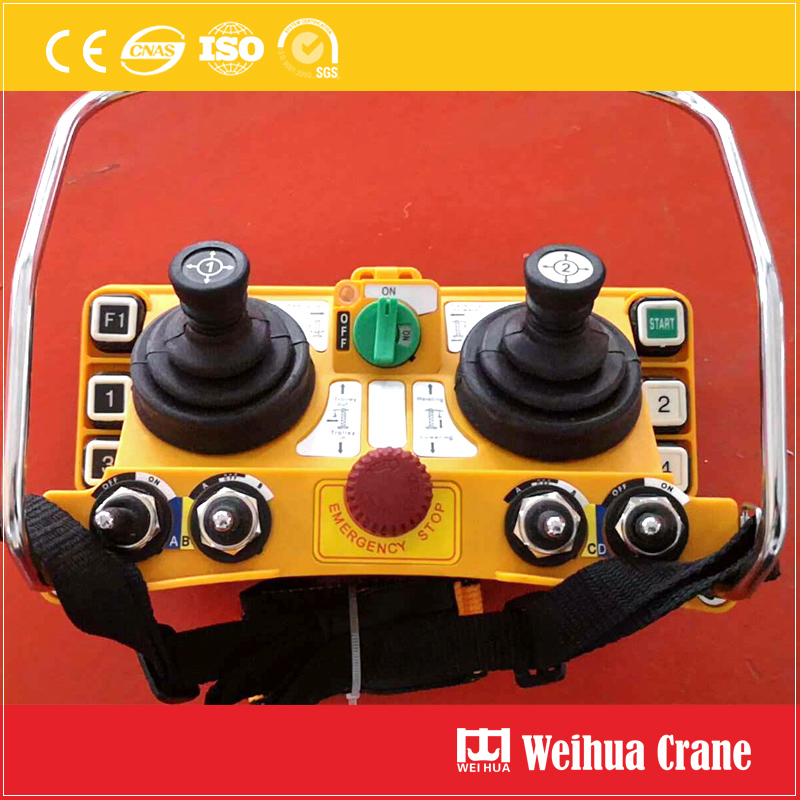

Joystick remote control is usually used for the control of Double Girder Overhead Crane and Gantry Crane. Different from a crane pendant control, this joystick control is U-frequency mainly with 1 or 2 joysticks to control the inverter cranes.

Features of Joystick Remote Control:

1. Anti-interference, large crystal oscillator above 100;

2. Programmable output settings, up to 16 output points;

3. Nylon-reinforced reinforced plastic case to prevent damage caused by falling and strong collision;

4. Operating distance can be 100 meters;

5. Receiver with output cable for easy and fast installation;

6. Transmitter three-stage power indicator;

7. Acceleration delay setting can be planned (making the crane run smoother);

8. Multiple security protection design: Hamming code watchdog line 32-bit non-repetitive identification code.

Main Data of Joystick Control:

• Size: 20*11*9 cm;
• Weight: about 1 kg;
• 2 five-speed paragraph feeler;
• 6 single speed buttons (including power button);
• 1 emergency stop mushroom head;
• 1 rotating key;
• 2 2-stage selector switches;
• 2 3-stage selector switches;
• More than 40 relay outputs (software settings);
• Installed closed and open relay;
• Support passive antenna (optional);
• Working temperature: –35~+80°C;
• Transmitter power supply 4 AA alkaline batteries / rechargeable battery;
• Receiver power supply AC48/110/220/380V (optional);
• Protection class IP65;
• Identification code 4.3 billion groups no-repeat identification code;
• Hamming code ≥ 4
