1. Single-Pole Conductor Bar System
2. Seamless Conductor Rail System
3. Solid Steel Conductor Rail System
Conductor rail system can be the single pole conductor bar system, seamless conductor rail system, and solid copper steel conductor rail system. 200A-5000A, 3P, 4P, 50A, 80A, 100A, 120A, 140A.
Conductor rail system can be the single pole conductor bar system, seamless conductor rail system, and solid steel conductor rail system. As a leading crane manufacturer, Weihua provides all kinds of power supply systems for cranes.

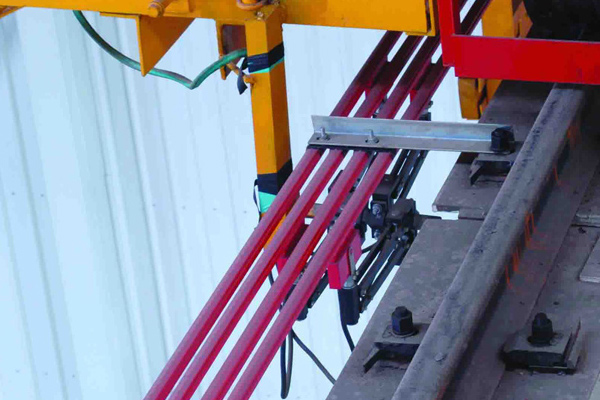

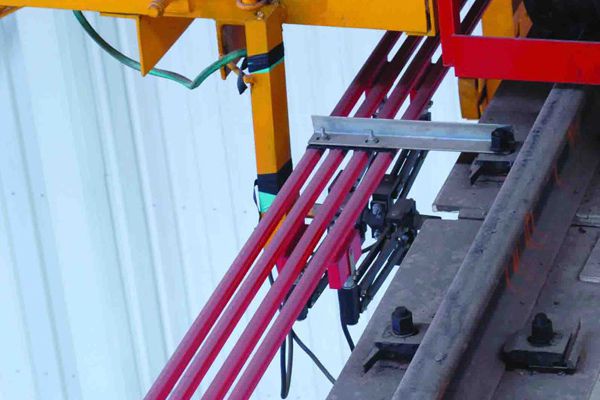

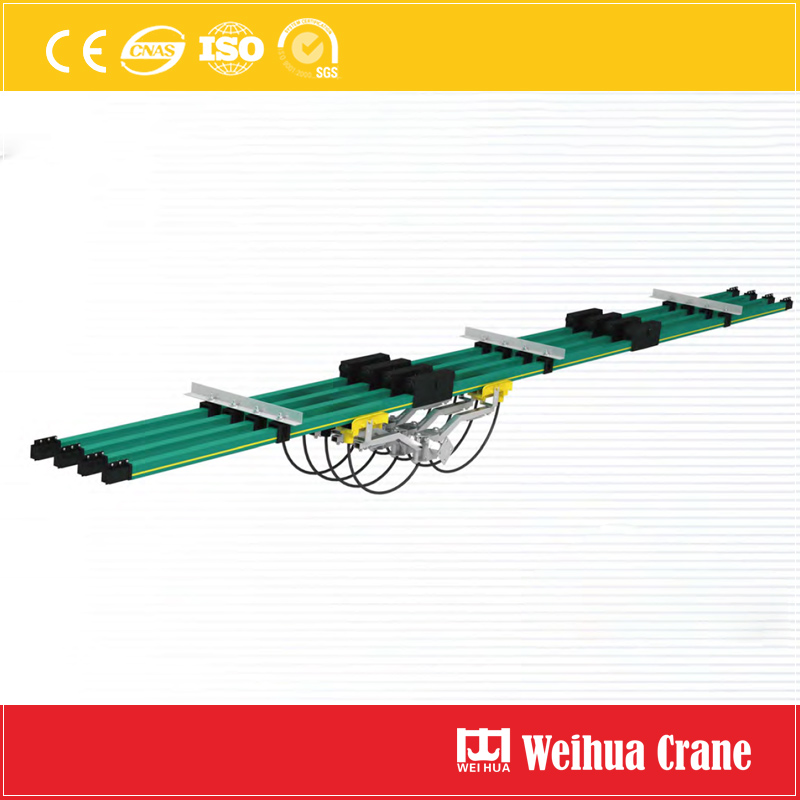

1. Single-Pole Conductor Bar System
The single pole conductor bar materials are copper (200A-5000A) and aluminum (150A-3000A). The aluminum conductor bar is provided with a proven stainless steel contact surface (There is no need to add stainless steel strip in case the conductor used as busbar).

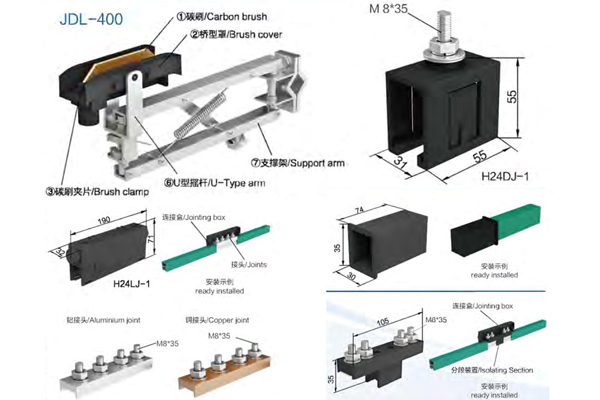

Any numbers of poles conductor bar can be installed vertically or horizontally, on straight or curved system. This single pole conductor bar system can be used outdoor with a protective cover which is antioxidant, UV resistant, impact resistant. For high temperature environment (-40 ~ 115℃), the protective cover is available with different sizes for different sized conductor bar. Besides, we supply the full set conductor system, including conductor bar, protective cover, jointing material, feed sets, end caps, hangers, expansion section, Current Collector, tow arm, support bracket, isolation section, etc.
Weihua also provides curved conductor bar with R≥1200mm. All conductor bars are approved by CCC, ISO9001 and CE.

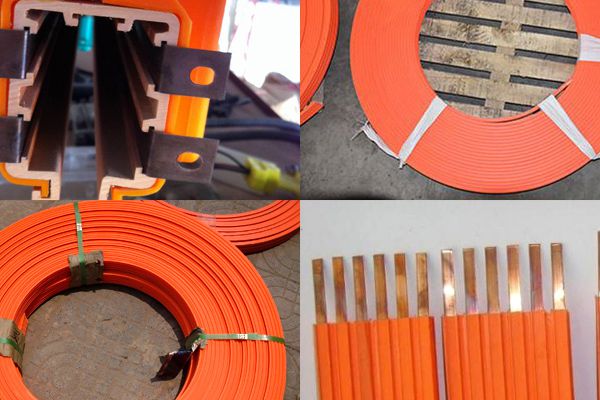

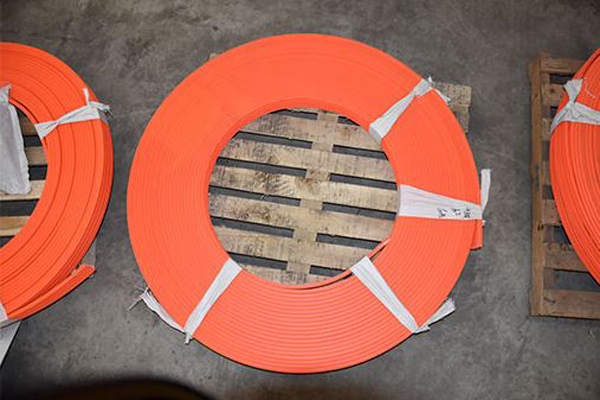

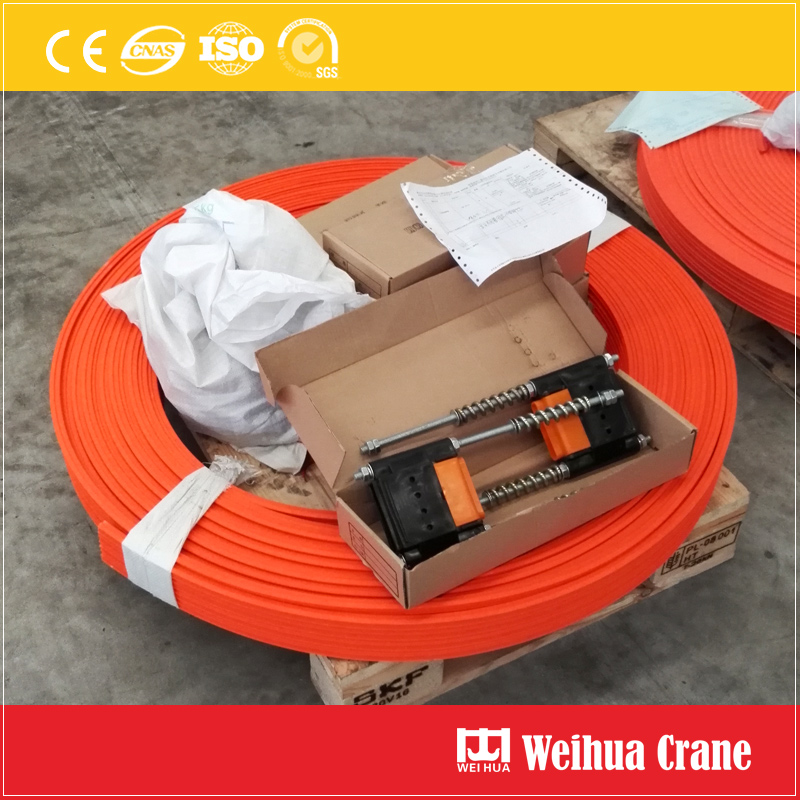

2. Seamless Conductor Rail System
The seamless conductor rail system is without any joints within length 1000m, which is available for 3P, 4P (50A, 80A, 100A, 120A, 140A) with load matching. Meanwhile 3P, 4P can be combined into the 6P or other level. Weihua provides complete seamless conductor rail system including components such as hanger clamp, bended joints, Current Collector, towing bracket, end tensioner/feeding, towing arm, carbon brush, support bracket, etc.
The seamless conductor rail system has the features of quick and easy installation, economical and practical, stable operation, fast speed, less noise, flexible power supply, etc.
4P Conductor Data:
Rating: 4P, 660V, 50A-120A
Conductor material: copper
Insulation cover/jacket: Rigid PVC within 75℃
Color: Orange (Eye-catching warning color)
3P Conductor Data:
Rating: 3P, 660V, 50A-120A
Conductor material: copper
Insulation cover/jacket: Rigid PVC within 75℃

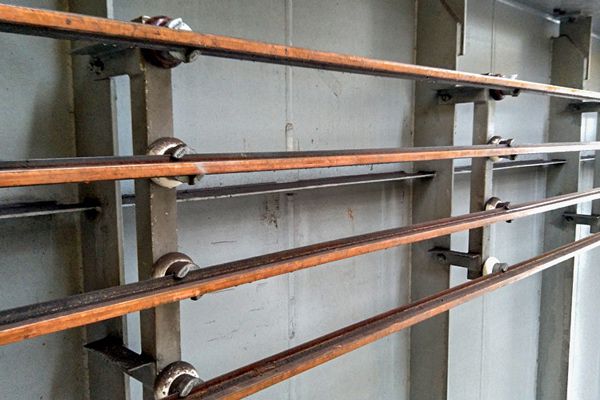

3. Solid Steel Conductor Rail System
The solid steel conductor rail system is an open style conductor system which is composed of a ladder type copper rod and a channel steel or a T shape copper row and a groove type aluminum. It is supported by high-strength special insulators to form a mobile sliding line that feeds lifting equipment.
The length of the conductor bar section is usually 6m and the insulation bracket installation spacing is generally 3m. This open solid conductor system is usually for large tonnage cranes. The power supply current is usually ≥800A, 1000A, 1600A, etc.

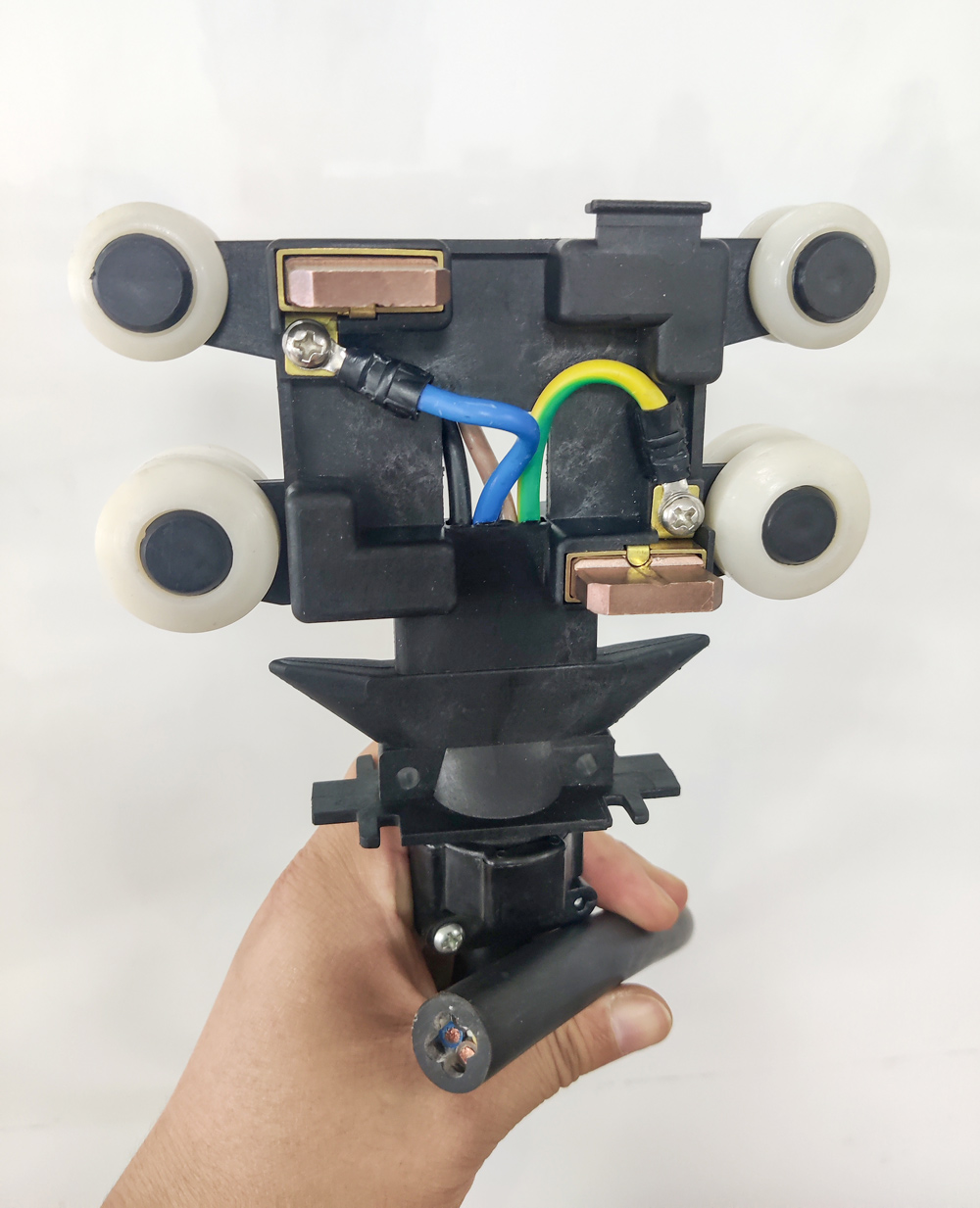

A multi-pole current collector for tube-type conductor
