Battery Powered Straddle Carrier

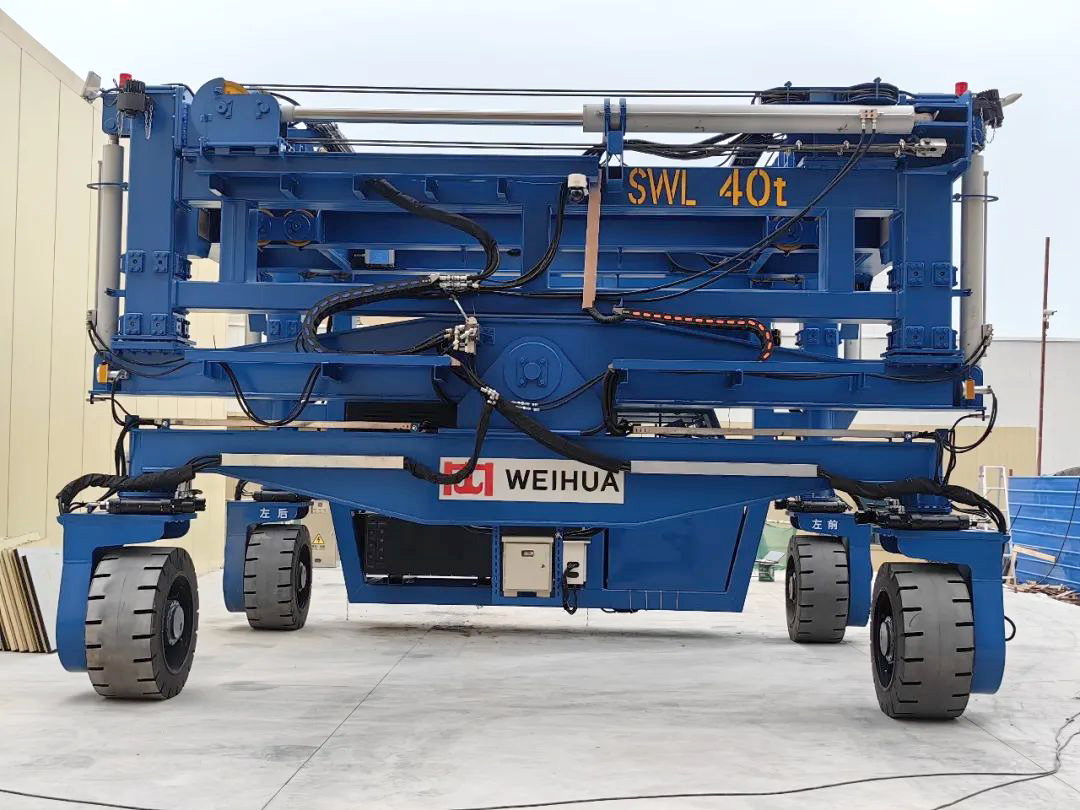

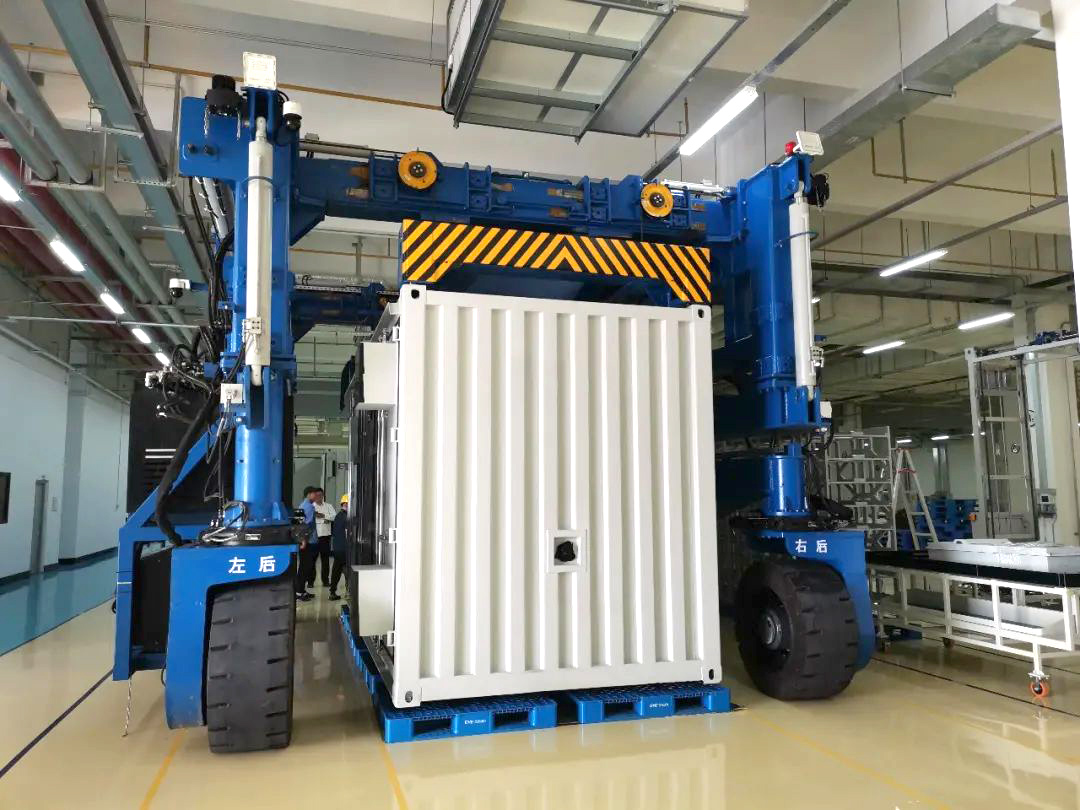

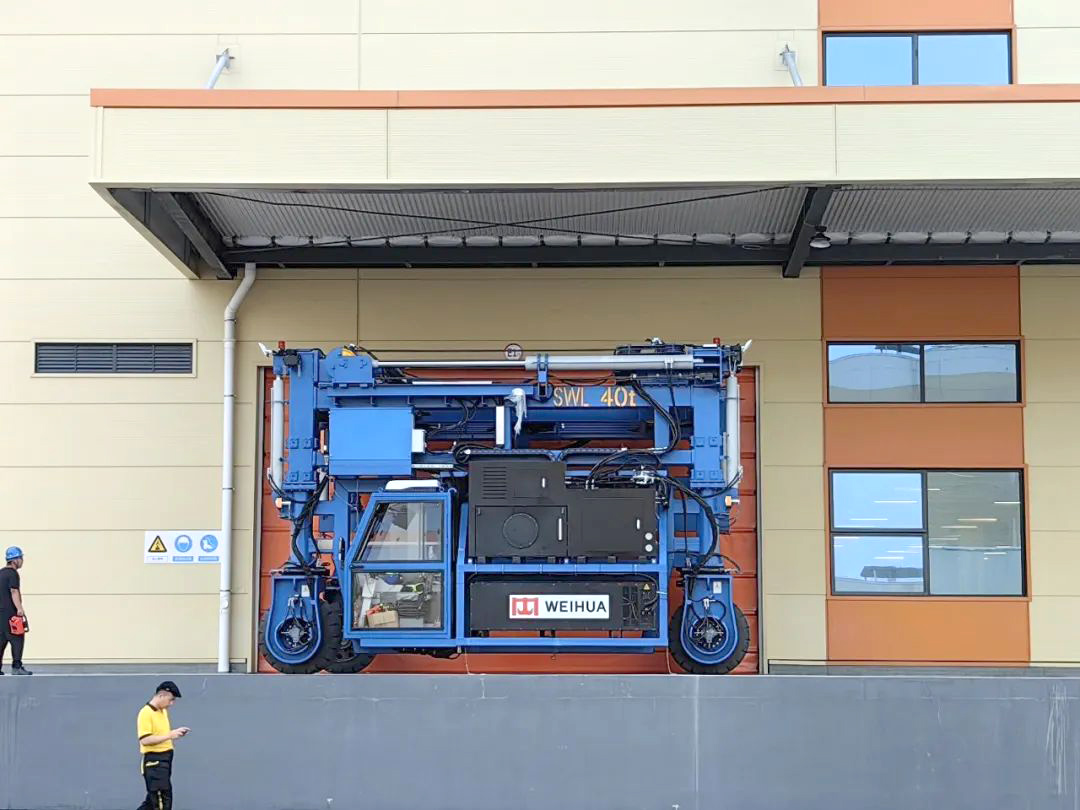

This straddle carrier Model WHKYC40 is a battery powered multifunctional straddle carrier for container handling, which is a new generation of container loading and unloading equipment independently developed by Weihua Crane based on modern cutting-edge technology. The entire machine is powered by a lithium battery, driven by an electric motor with fully hydraulically driven, running smoothly, without noise or pollution.

Features:

1. The straddle carrier adopts advanced sensing and monitoring systems, which can independently complete the automatic identification, positioning, movement, and loading and unloading of heavy containers. It has high lifting synchronization accuracy, stepless speed adjustment, and strong overload capacity, which can effectively improve the safety and efficiency of logistics operations.

2. Compared to the 3% slope climbing capacity of traditional tire mounted cranes, this straddle carrier can achieve 10% steep slopes climbing with a full load, with strong capabilities!

3. The straddle carrier is customized according to customer needs, fully tailored to the container handling environment, with a delicate appearance. The design of the entire machine with more functions, a greater flexibility and safety.

Compact body with flexible steering:

• Free access to workshop workstations, especially suitable for narrow spaces with limited width and height. Such as factory workshops, storage yards, logistics parks, etc.
• It can achieve various steering modes such as straight and walking turning, horizontal and walking turning, oblique turning, 360 degree turning in place, Ackermann turning, etc. The turning is smooth and pressure free.

4. Flexible control: There are two operating modes: the cab and wireless remote control, which can be switched at any time.

5. Multiple protection:

• Safe operating system: It can quickly switch to an emergency system when the main system fails. The emergency system can achieve functions such as safe container drop and low speed operation of cross transport vehicles with no load.
• Protection system: radar anti-collision, video monitoring and alarm, dangerous area warning, overload protection, overvoltage protection, anti slip and stall, continuously variable speed, automatic pressure maintaining, etc.
• Anti-sway device: The container does not swing during walking, especially when climbing, to ensure the stability and safety of the cross carrier.
