Product Name: Rubber Tyred Container Gantry Crane / RTG
Capacity: 35t, 40t
Working Level: A6, A7, A8
Span: 23m, 27m

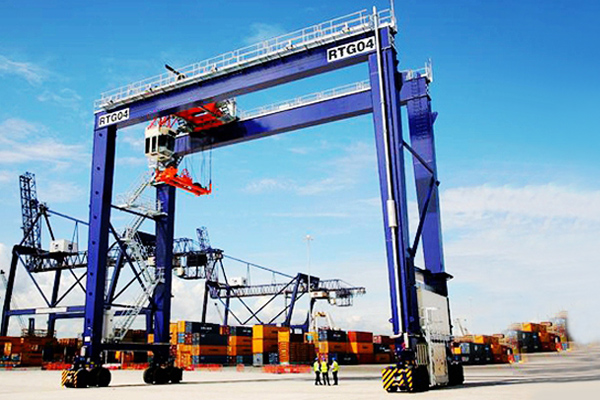

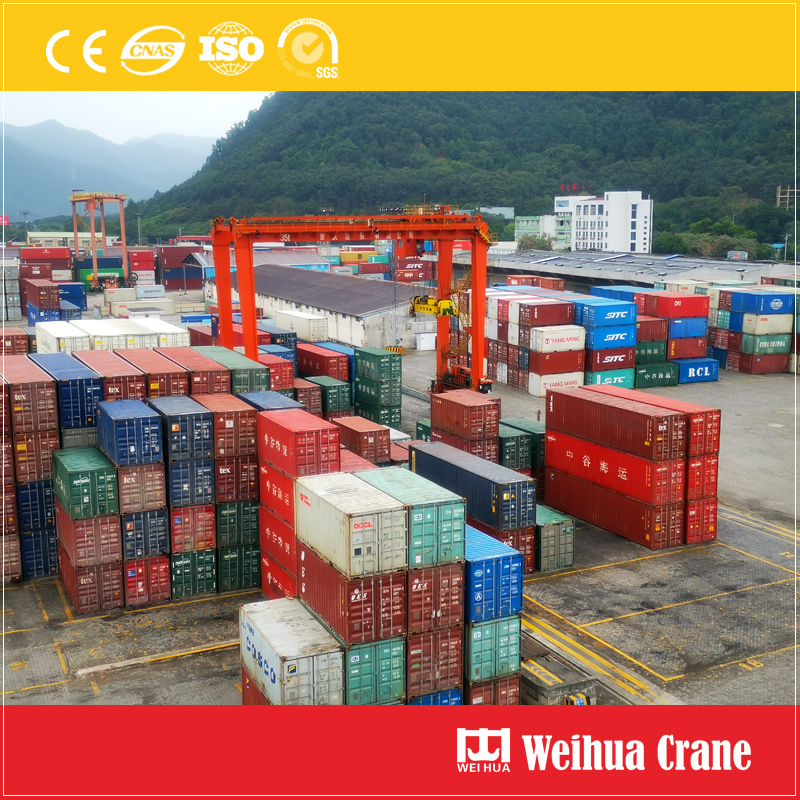

Rubber tyred container gantry crane is usually called RTG for short, which is employed to stack containers in container storage yards. It is flexibly moved by its own rubber tyres for transshipping containers.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.

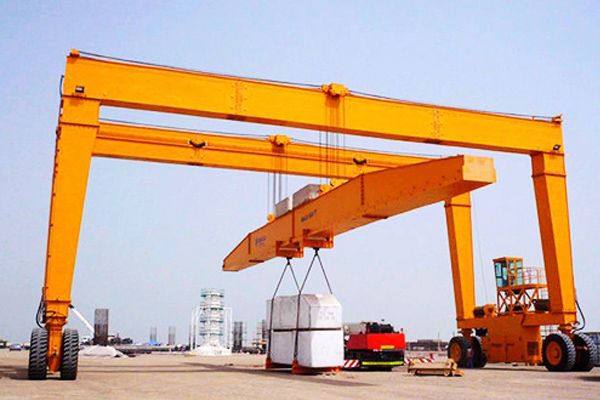

Read More >Rubber tire container gantry crane is employed to handle containers, large component at the loading/unloading places and container yard. This rubber tyred gantry crane is fitted with multiple hooking point's spreaders to meet the needs of different lifting situations. The whole crane can carry out 360° steering with flexible movement.
Full hydraulic drive for crane traveling mechanism and lifting mechanism with Step less speed change. The long traveling use hydraulic closed circuit with good transmission efficiency, less fault. There are safety indicator and overlord limiter to ensure safety of operators and products. All operation are controlled by CAN-BUS control.
.jpg)
Features of Rubber Tyred Container Gantry Crane:

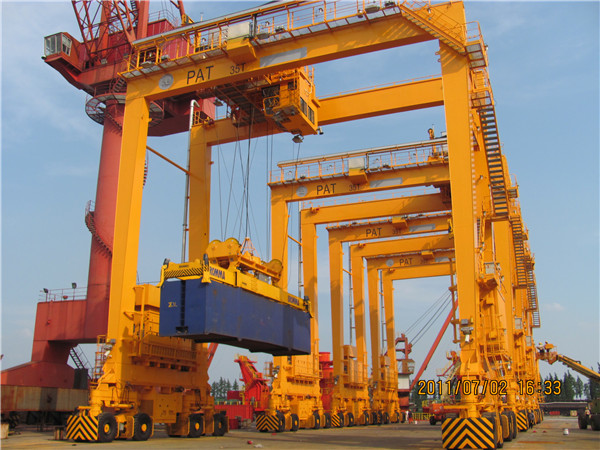

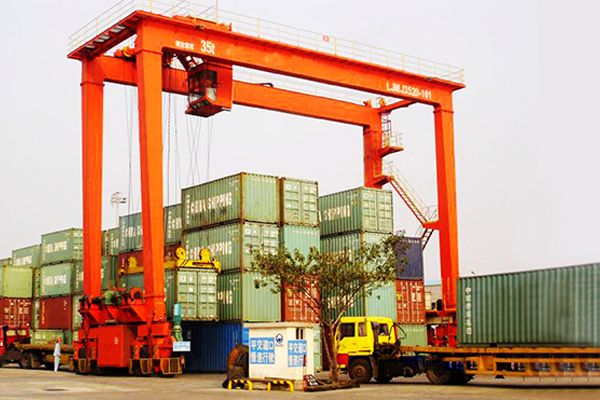

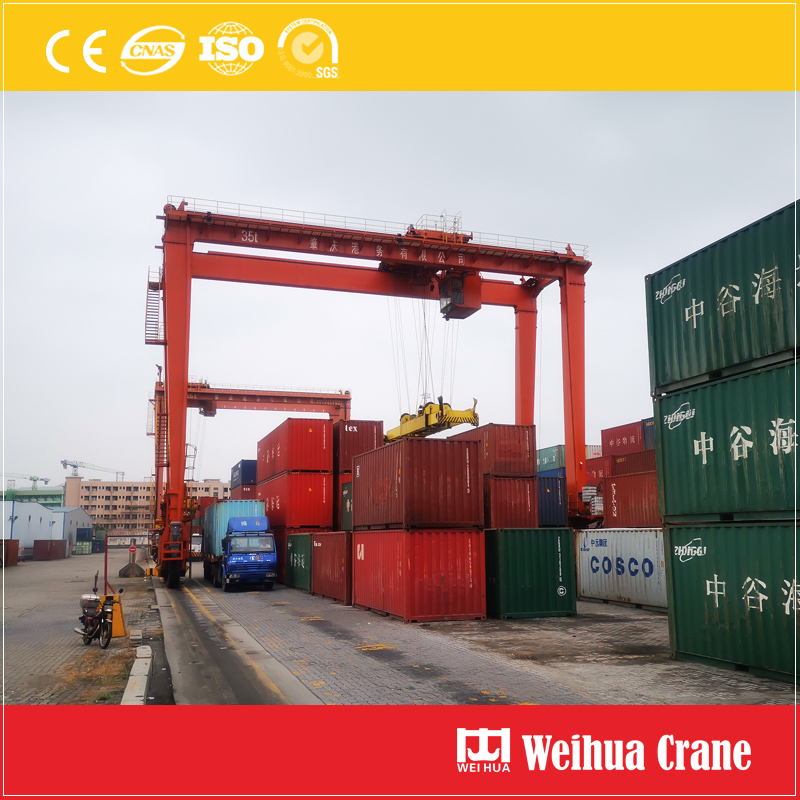

1. Rubber tyred container gantry crane is usually called RTG for short, which is employed to stack containers in container storage yards. Rubber tyred container ganry crane is flexibly moved by its own rubber tires for transshipping containers.
2. Weihua rubber tyred container gantry crane is equipped with specialized spreaders to lift standard-sized 20GP, 40GP, 45HQ containers and hydraulic storage tanks.
3. The trolley and crane traveling mechanisms equip three-in-one reducer with convenient maintenance.

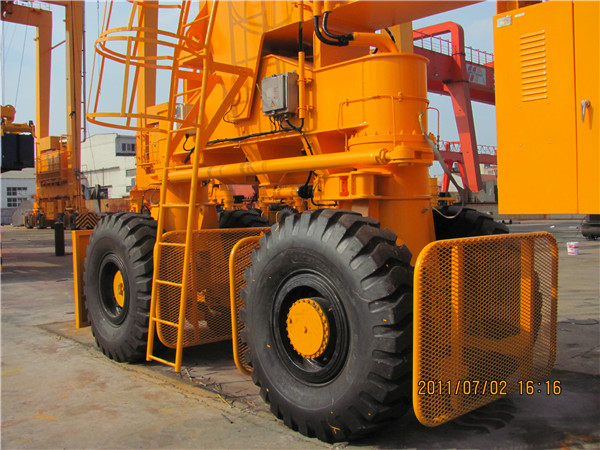

4. The tires of this container gantry crane can rotate 90°and move obliquely at 20° and 45°.
.jpg)
.jpg)

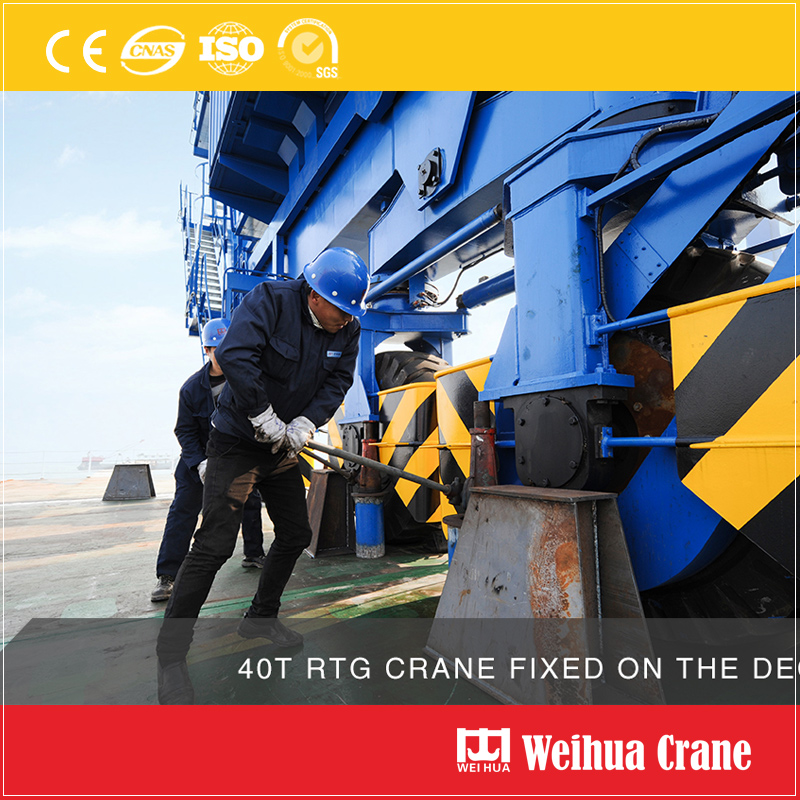

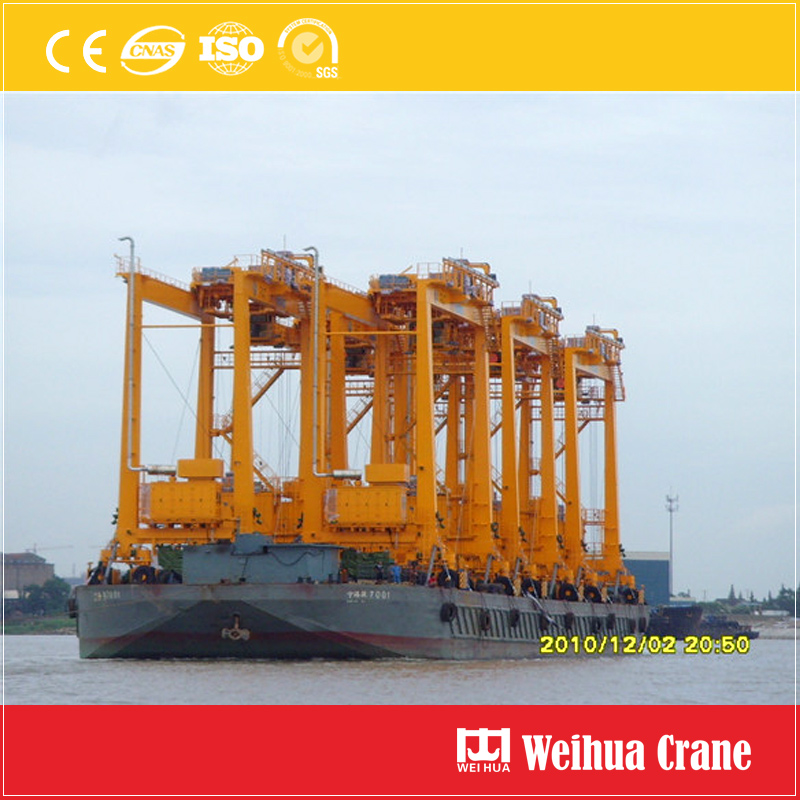

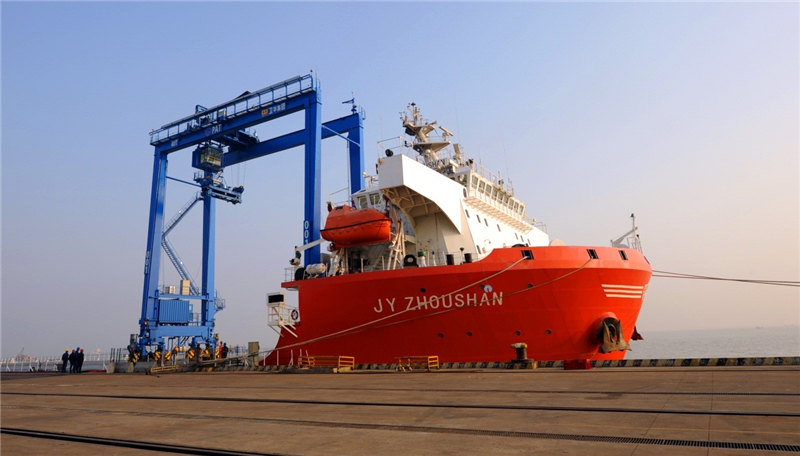

Full Set Rubber Tyre Gantry Crane Fixed at the Cargo Ship Deck
.jpg)
.jpg)
| Model | LJ35/40-23 | Light Type LJ40-32 | |||||
| Lifting Capacity(under spreader)(t) | 35, 40 | 40 | |||||
| Work Duty | A7, A8 | A6, A7 | |||||
| Span (m) | 23, 47 | 23, 47 | |||||
| Lifting Height (m) | 12.2~17.8 | 16.5 | |||||
| Stack Layers/Passing Layers | 3/4~5/6 | 5/6 | |||||
| Container Model | 20′,40′, 45′ | 20′,40′, 45′ | |||||
| Spreader Rotating Angle | ±5° | ±5° | |||||
| Hoisting Speed (m/min) | 13/26， 23/52 | 12/18, 18/28 | |||||
| Cross Travel Speed (m/min) | 50，70 | 24 | |||||
| Long Travel Speed (m/min) | Full Load-90, Without Load-130 | Full Load-20 Without Load-40 | |||||
| Max. Wheel Load (KN) | 310 | 310 | |||||
| Total Rating (KW) | 150, 230 | 110, 150 | |||||
| Power Supply | Electric, Diesel Engine, Electric-disel Engine | ||||||
Links: RMG Crane | Quayside Container Crane | FEM/DIN Gantry Crane | Gantry Crane for Shipbuilding
.jpg)
FEM/DIN Double Girder Overhead Crane

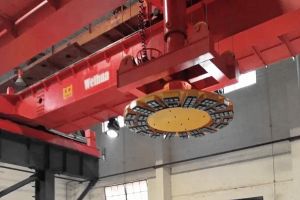

CNC Crane with High Precision Positioning
.jpg)
Gantry Crane for Shipbuilding

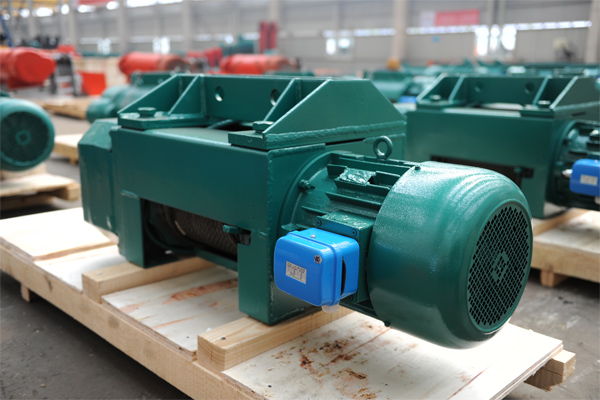

Metallurgy Electric Hoist YHII
