Capacity: 1t~20t

Lift Height: 6m~36m

Fitted on I-beam monorail girder





Features:

1. C-shape design to reduce headroom for the maximum lift height;

2. Directly driven travel wheel (maintenance-free);

3. Two wheels of the trolley are driven synchronously and equipped with a guide wheel to ensure low noise and low loss;

4. Good performance, robust components, long service life, cost effective;

5. Modular design, quick and easy maintenance, less operation cost;

6. Simple operation, first class project support;

7. Versatile in application with many combinations, sizes and variants;

8. Complete quality assurance system, strict quality control and all-round quality management.





HOIST MOTOR:

1. Rugged 12/2-pole cylindrical-rotor motor (selection of frequency conversion)

2. Less vibration, quiet running;

3. Thermal contacts to protect against overheating;

4. Designed for extended operating periods, classified in accordance with FEM;

5. IP 54 enclosure.





BRAKE:

1. DC disc brake with brake release monitoring (optional)

2. Min. safety factor of 1.8;

3. Rapid response through integrated brake module.





CONTROL SYSTEM:

1. Conventional contactor control;

2. Frequency conversion operation;

3. Electronic module for control of time functions;

4. Overload protection fitted as standard for increased safety;

5. Control by means of DST control pendant (optional);

6. Ergonomic and rugged design with 7 or 9 buttons;

7. Emergency off switch fitted as standard;

8. Accurate 2-pole rotating limit switch.





ROPE DRUM GUIDE:

1. Generously dimensioned drum for long rope service life;

2. Precisely machined rope grooves;

3. Rope guide made of heavy duty composite material;

4. Reliable fleet angle up to ±4 degree without physical contact between rope and rope guide.

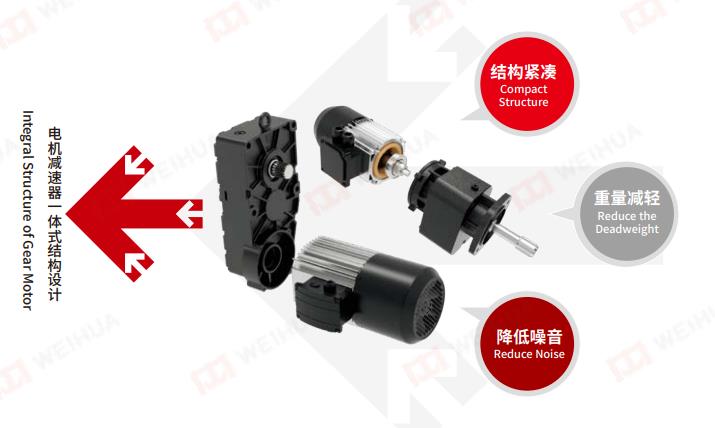

GEAR BOX:

1. 3-stage, helical gear reducer;

2. Low running noise;

3. Lifetime lubrication.





HOOK BLOCK:

1. Ergonomically designed and operator friendly;

2. Pulley made of special materials with low noise;

3. Smooth running.
