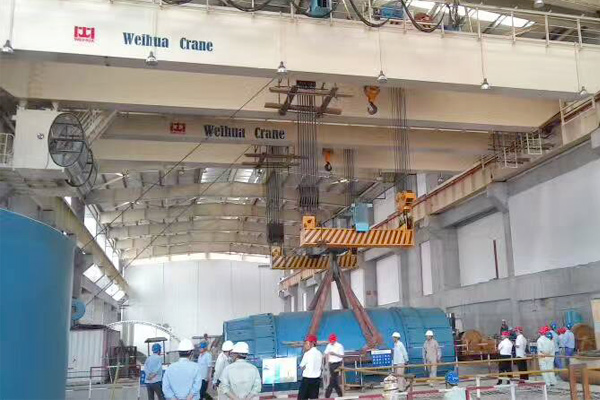

Product Name: Overhead Crane for Power Plants
Lifting Capacity: 80/20t, 100/20t
Span: 10.5-31.5m
Lifting Height: 24-30m

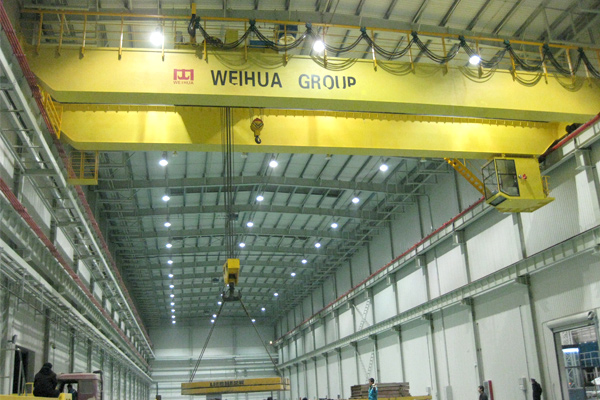

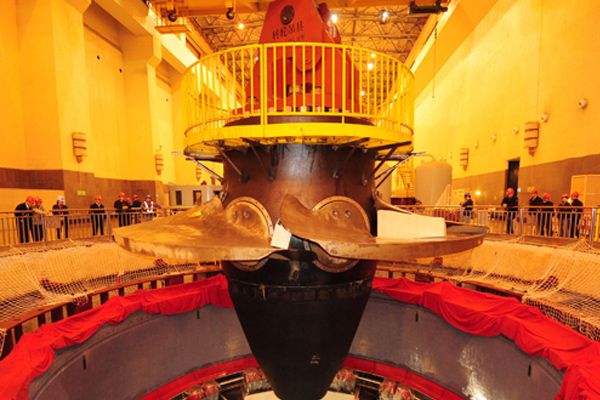

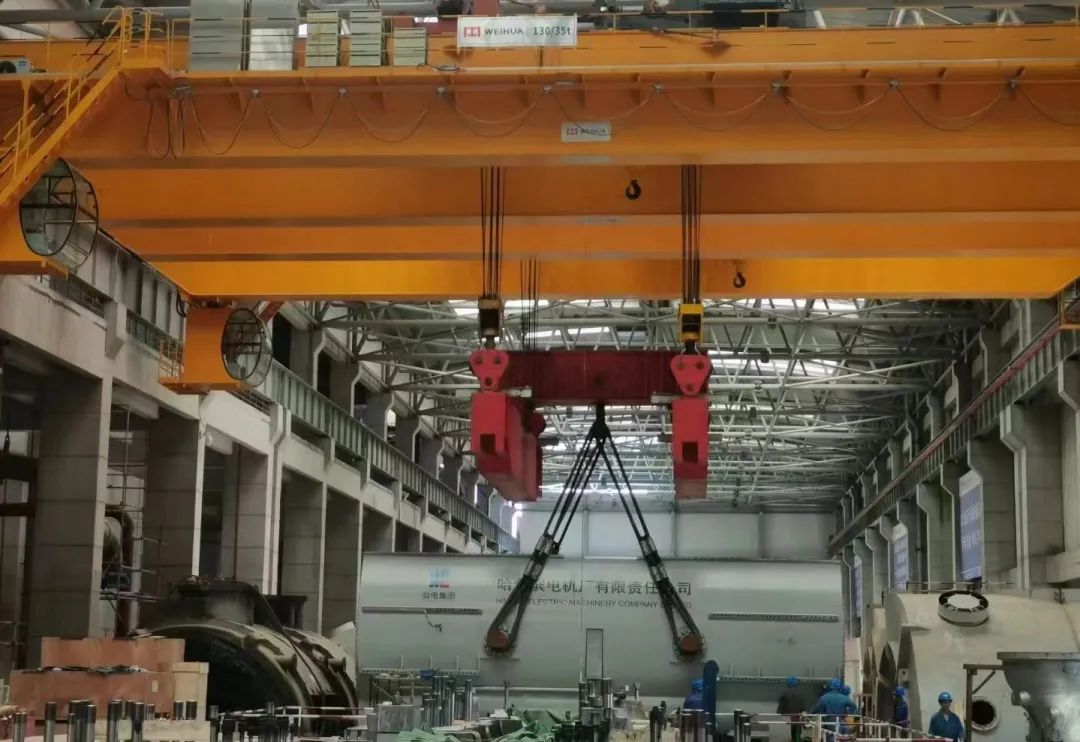

This overhead crane is employed to lift and assemble stator and rotor in power plants, which has the features of light weight, low energy consumption and less maintenance free.

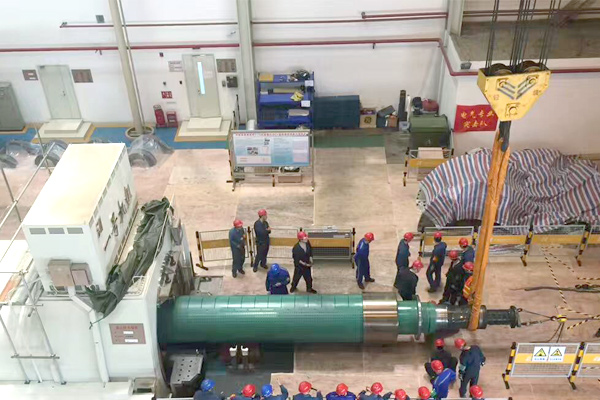

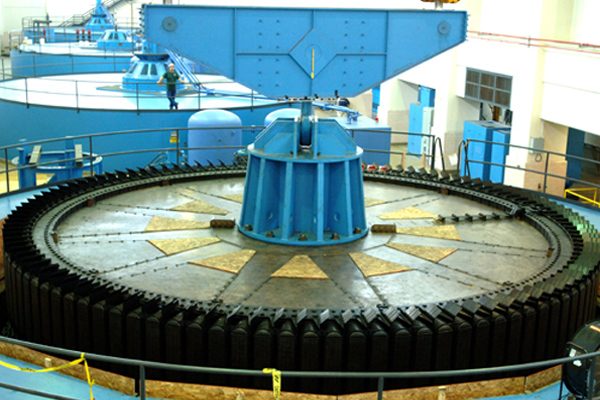

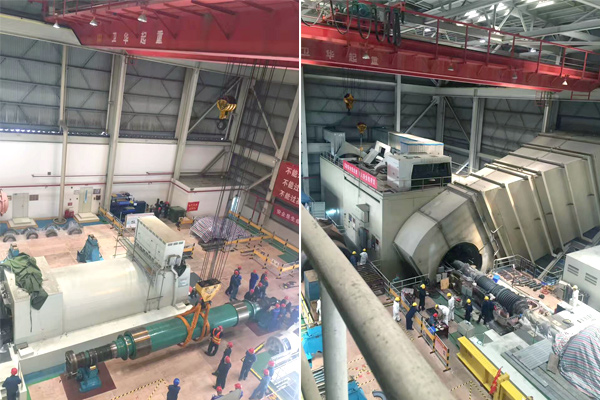

This overhead crane for power plants is employed to lift and assemble stator, steam turbine stator and rotor in power plants, which has the features of light weight, low energy consumption and less maintenance.
We develop crane software by 3D modeling and finite element analysis and optimize lifting mechanism and steel structure. The use of high strength materials increase carrying capacity and reduce weight with less wheel load pressure.
Features of Overhead Crane for Power Plants:
1. Saving working space: small limit of left and right space to increase the working space. Small space over the track/rail, thus the workshops space can be fully used.
2. Less cost of service and maintenance: reliable performance and durability to reduce extra cost. High quality and performance components need less maintenance and repair. Low energy consumption.
3. High performance: Adopt frequency conversion tech to lower operating load and make the crane traveling in high speed within light load. Its 1:10 speed range insures the crane traveling smoothly and reduces the impact to workshop. Anti-sway technology to realize precise positioning.
.jpg)

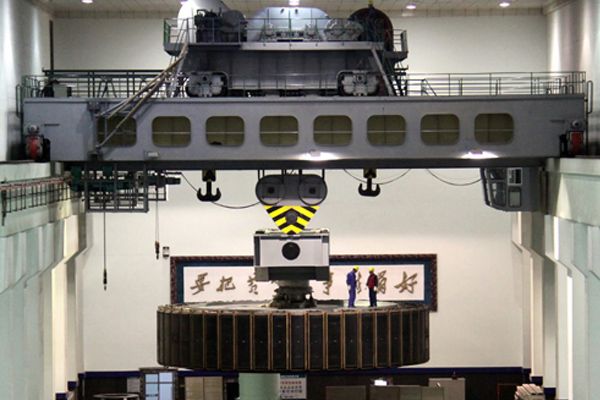

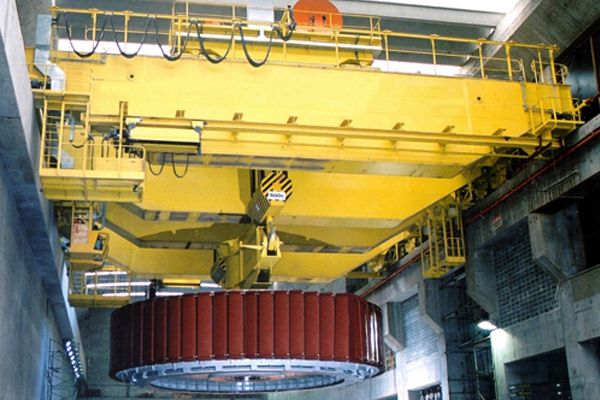

Overhead Crane on Dam for Hydropower

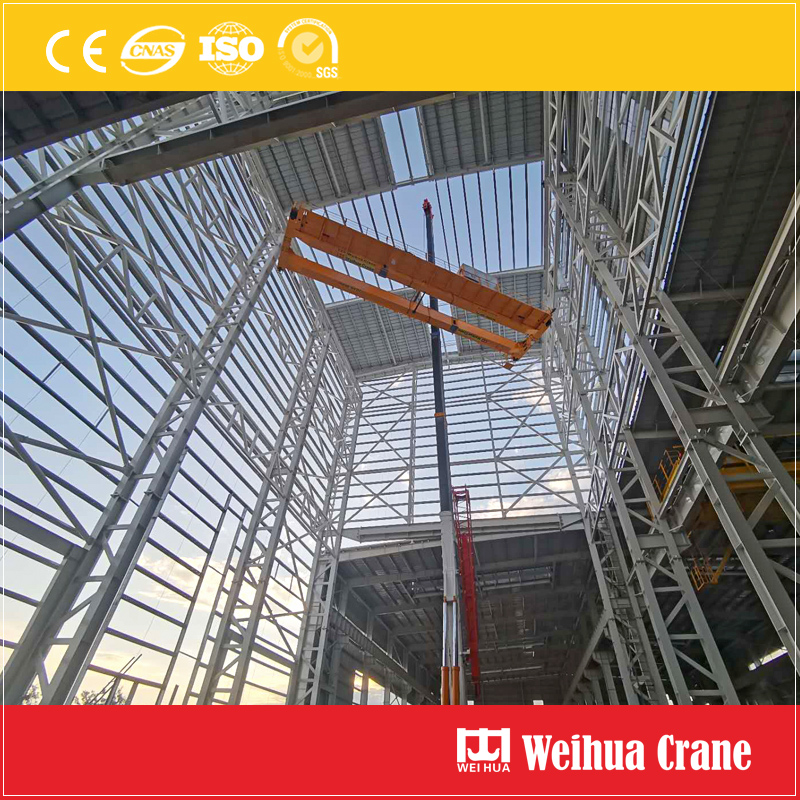

Overhead Crane Installation in Cambodia
.jpg)
| Technical Specifications | ||||||||
| Lifting Capacity | t | 80/20 | 100/20 | |||||
| Main Hook | 80 | Main Hook | 100 | |||||
| Vice Hook | 20 | Vice Hook | 20 | |||||
| Lifting Height | m | Main Hook | 28 | Main Hook | 24 | |||
| Vice Hook | 30 | Vice Hook | 30 | |||||
| Span | m | 10.5~31.5 | 10.5~31.5 | |||||
| Hoist Lifting Speed | m/min | main Hook | 0.15~1.5 | main Hook | 0.15~1.5 | |||
| Vice Hook | 0.63~6.3 | Vice Hook | 0.63~6.3 | |||||
| Traveling Speed | m/min | Crane | 1.5~15 | Crane | 1.5~15 | |||
| Trolley | 3~30 | Trolley | 2~30 | |||||
| Max Wheel Load | KN | 231~296 | 286~349 | |||||
| Work Duty | A3 | A3 | ||||||
