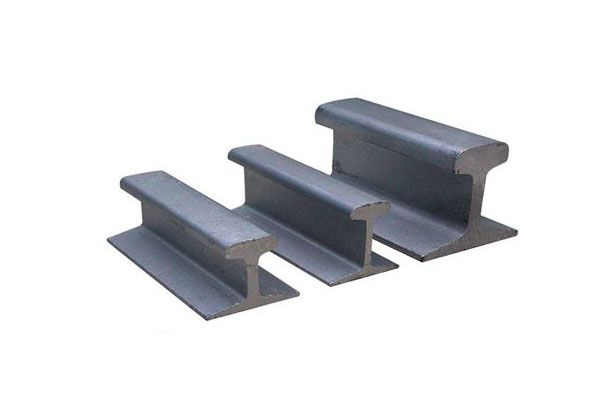

Crane rails is for the running of cranes and P shape rail is the most commonly used. We provide various crane rails models such as QU70, QU80, QU120, etc.
1. Application scope: Overhead Crane, Gantry Crane, RMG, Project Crane, etc.
2. The rail joints could be cut into straight joint or 45°oblique joint.
3. P shape rail is the most commonly used.

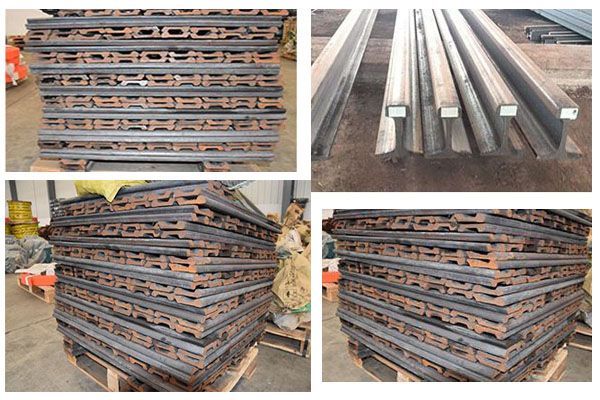

Crane rails are the main body of crane tracks. Crane rails provide a continuous, smooth and low-resistance rolling surface for the crane wheels. It is employed to guide the wheels of the crane, bear the pressure of the wheel, and transmit it to the sleeper and ground. Weihua provide various crane rail models such as P24, P38, P43, QU70, QU80, QU100, QU120, etc. for the different crane and special conditions.
.jpg)
Features of Crane Rails:
1. Application: Rails/tracks for Overhead Crane, Gantry Crane, RMG, Project Crane, etc.
2. Pulling wire rope to detect the linearity of rails. Pulling a diameter 0.5mm wire rope between two ends stop lever, and using a plumb bob to detect point by point, and the interval should be 2 meter.
3. The crane rail joints could be cut into straight joint or 45°oblique joint.
4. P shape rail is the most commonly used.
