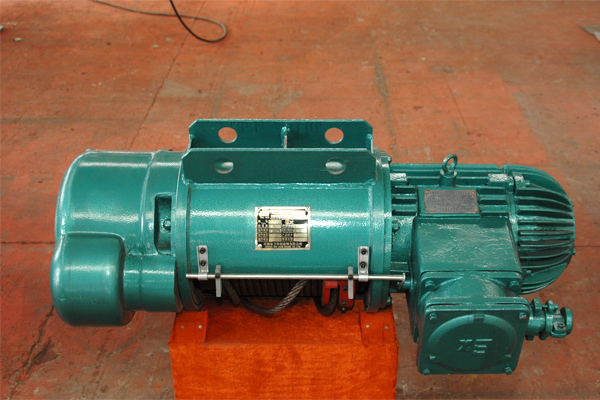

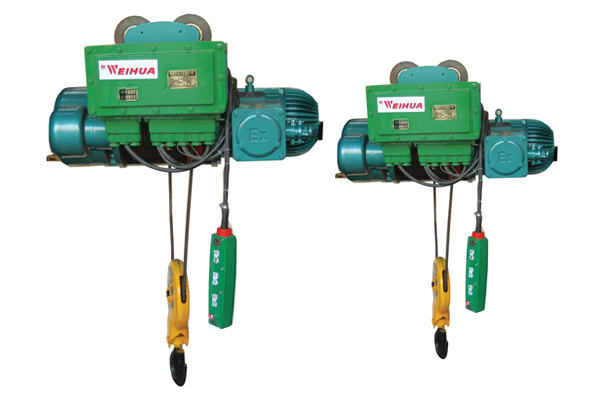

Product Name: HB Explosion-Proof Wire-Rope Electric Hoist
Lifting Height: 3-30m
Hoisting weight: 1-32t
Working temperature: -25°C 40°C
HB explosion proof wire rope electric hoist adapts to the environment in factory that have explosion gas formed by inflammable gas, steam and air of which explosion proof is less than B or C.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.

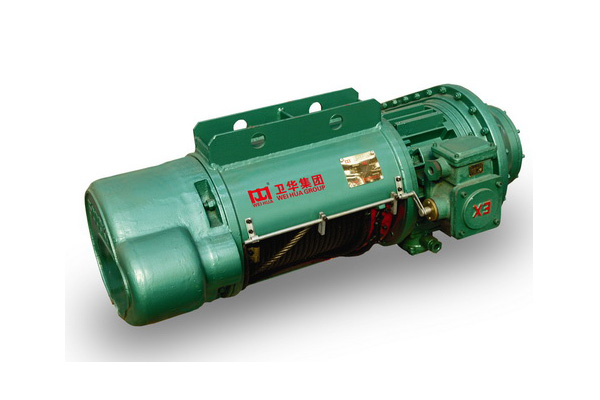

Read More >According to GB3836.1-2000 and GB3836.2-2000 rules, motor and electrical equipment are explosion proof. When the explosion proof grade is ExdII CT4, travelling mechanism shall do spark proof treatment. This explosion proof electric hoist is designed with explosion proof level ExdII BT4 and ExdII CT4, which can be used on workshop fixed suspension rail, also can be used with LXB explosion proof suspension single beam crane, LB explosion proof electric single beam crane and explosion proof hoist double beam crane. Weihua also provide NR explosion-proof electric hoist which is new design hoist.
Hoisting weight: 1-32t
Working temperature: -25°C - 40°C
HB explosion proof electric hoist adapts to the environment in factory that have explosion gas formed by inflammable gas, steam and air of which explosion proof is less than B or C and ignition group is more than T4(135°C) group.
HB explosion-proof electric hoist is suitable for working in the following dangerous gas:
EX IIBT4: ethane, propane, butane, heptane, ethylene, carbon monoxide, gasoline, acetone, styrene, toluene, benzene, methanol, ethanol, vinyl chloride, acetaldehyde, etc.
EX IICT4: Hydrogen, water gas, etc.
.jpg)
.jpg)
|
Model |
HB (ExdIIBT4, ExdIICT4 ) |
|||||||
|
Lifting Weight (t) |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
10 |
16 |
|
Lifting Height (m) |
3~9 |
6~12 |
6~30 |
6~30 |
6~30 |
6~30 |
9~30 |
9~30 |
|
Lifting Speed (m/min) |
8(0.8/8) |
7(0.7/7) |
3.5(0.35/3.5) |
|||||
|
Running Speed (m/min) |
20 |
20/30 |
18 |
|||||
|
Running Rail (m/min) |
10-20b |
16-28b |
10-20b |
20a-32c |
10-20b |
25a-50b |
32b-50b |
32b-63c |
|
Working Level |
|
|||||||
|
Power |
3-phase AC380V 50Hz |
|||||||
