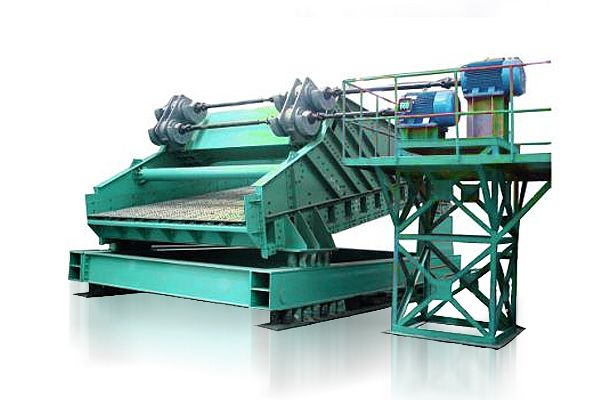

Product Name: LZS Linear Vibrating Screen
Capacity: 200-340t/h
Feed Size: ≤80mm, ≤200mm
LZS linear vibrating screen has been widely applied to the metallurgy, mining, coal, port and other industrial departments. LZS linear vibrating screen can make use of two motors to drive two series of vibrators to make the reverse self-synchronous rotation.
As a kind of two-axle linear vibrating screen, the LZS linear vibrating screen can make use of two motors to drive two series of vibrators to make the reverse self-synchronous rotation via the universal coupling, as a result, the screen box will make the large-amplitude linear vibration, however, the motor will be remain motionless. The above-mentioned vibrating screen has the following advantages, such as, large production capacity, reliable operation, convenient vibrating amplitude adjustment and small dynamic load which is conveyed to the foundation. Given this, the vibrating screen has been widely applied to the metallurgy, mining, coal, port and other industrial departments.
Structural Features:
1. It has large processing quantity and the higher screening efficiency.
2. It has simple structure.
3. It has simple operation and the minimum failure rate.
4. It has the lowest operation costs.
| Model | Screen surface | Size of feed granularity | Processing capacity (t/h) | Double amplitude | Motor | Single-point dynamic load N | Single-point maximum dynamic load N | |||
| Area (m2) | Inclination angle | ≤mm | mm | Model | Power (KW) | |||||
| Upper vibration type | LZS1560 | 9 | 10 | 200 | 200 | 8—12 | Y180L-8 | 2x11 | 800 | 4000 |
| LZS1861 | 11 | 7 | 200 | 200 | Y225S-8 | 2x18.5 | 1150 | 5750 | ||
| LZS2060 | 12 | 5 | 200 | 230 | Y225S-8 | 2x18.5 | 1150 | 5750 | ||
| LZS2575 | 18.7 | 10 | 250 | 230 | Y225S-8 | 2x18.5 | 1200 | 6000 | ||
| LZS2585 | 21.25 | 7 | 200 | 250 | Y225M-8 | 2x22 | 1200 | 6000 | ||
| LZS3090 | 27 | 10 | 200 | 480 | Y280M-8 | 2x45 | 1960 | 9800 | ||
| LZS3175 | 23.25 | 5 | 80 | 350 | Y225M-8 | 2x22 | 1000 | 5000 | ||
| Lower vibration type | LZS2565 | 16.25 | 5 | 200 | 200 | Y225M-8 | 2x22 | 1800 | 9000 | |
| LZS2575 | 18.75 | 10 | 200 | 300 | Y225M-8 | 2x22 | 1800 | 9000 | ||
| LZS3070 | 21 | 10 | 200 | 340 | Y280S-8 | 2x37 | 1440 | 7200 | ||
