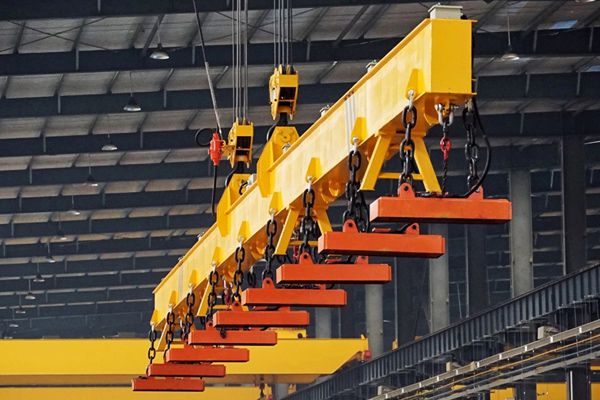

Product: Magnet Spreader Beam
1. Strong magnetic force with Max. force 18kg/cm, which ensure the workpiece will not move and be scratched during hoisting. Since the processing does not require power supply, the workpiece will not fall due to sudden power failure and loss of magnetism.
2. Rotary types are available, Optional types: upper rotary with hoist frame, and lower rotary with spreader beam.
3. Optional magnet: Electromagnet and Permanent magnet.
4. The magnetic block can be round disc type, square type, rectangle type, etc.

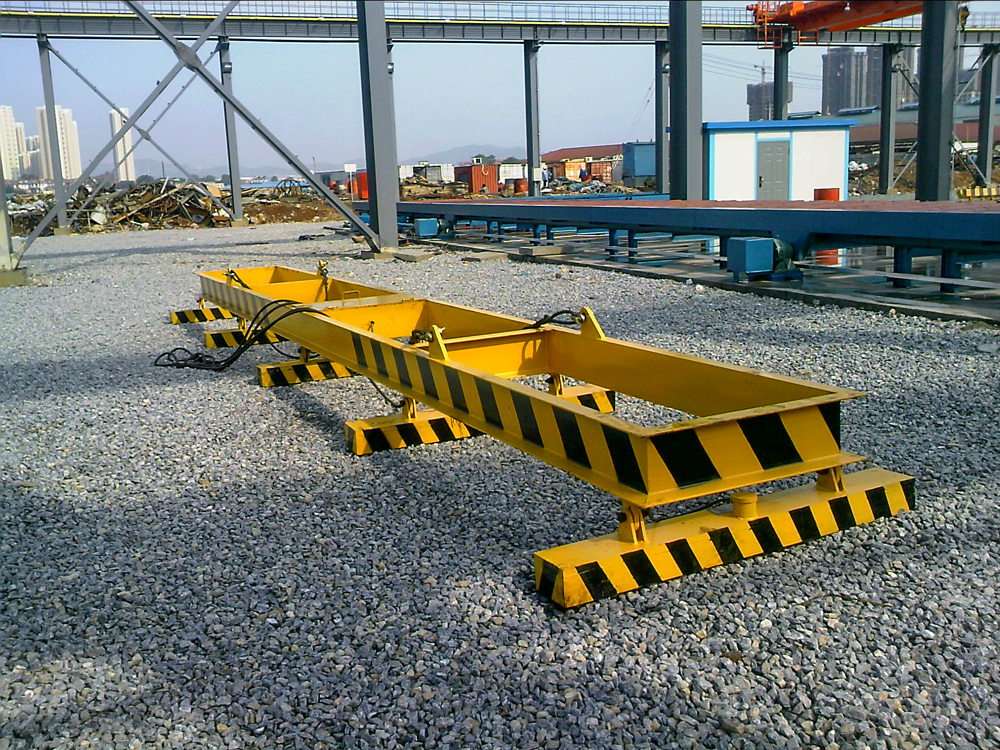

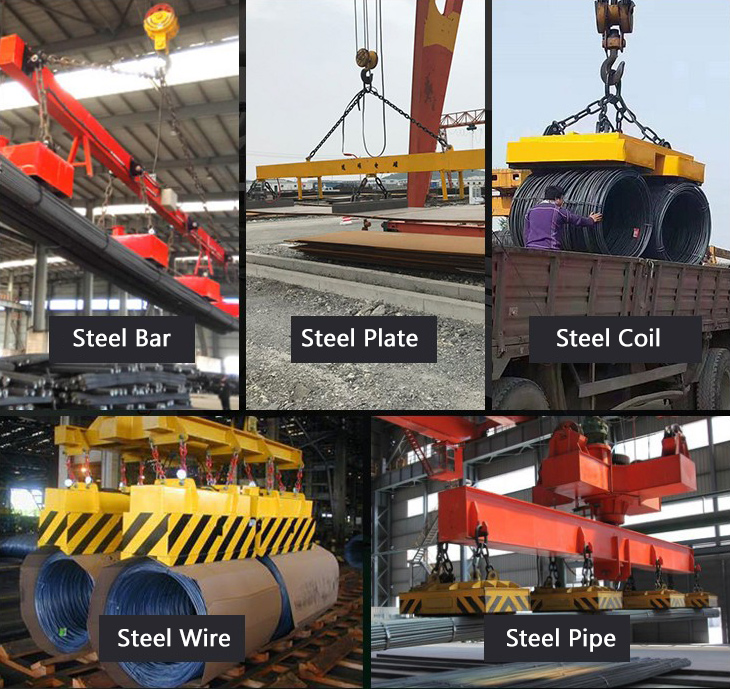

A magnet spreader beam is a lifting spreader beam with electromagnetic lifters. It is a commonly seen lifting spreader in steel industry and manufacturing industry. This product is applied to lift and handle steel plates, sheets, billets, bars, coils, pipes, scraps, and other steel products. It usually works with overhead crane, gantry crane, or other hoists as a lifting device.
Features:
1. Strong magnetic force with Max. force 18kg/cm, which ensure the workpiece will not move and be scratched during hoisting. Since the processing does not require power supply, the workpiece will not fall due to sudden power failure and loss of magnetism.
2. Rotary types are available, Optional types: upper rotary with hoist frame, and lower rotary with spreader beam.
3. Optional magnet: Electromagnet and Permanent magnet.
4. The electric permanent magnetic chuck does not need electric energy during the working process, and only relies on the permanent magnet suction to hold the workpiece, which avoids the danger of the electromagnetic system losing the magnetic force and the workpiece falling off due to sudden power failure and disconnection damage. Since the electro-permanent magnetic lifter only uses electric energy within 1-2 seconds of the magnetization and demagnetization process, it does not use any energy during work to generate safe, strong and efficient power, which is economical and environmentally friendly.
5. Electric permanent magnet jacks are widely used in the installation and handling of steel, mechanical parts and various molds due to their unique power-saving, energy-saving and safety performance. They are used in the lifting and handling of machinery processing, shipbuilding, engineering machinery, automobiles and other industries. The preferred lifting tool for operations, we often see this kind of products in factories, docks, warehouses, and transportation industries.
.jpg)
6. This magnetic lifting beam can be used with magnetic overhead crane or gantry crane to thick plates with thickness ≥5mm. Users can use multiple electro-permanent magnets for joint hoisting, with multi-stage magnetic adjustment function, and precise control of the magnetic penetration depth of the spreader, which can ensure that the next steel plate is completely non-sticky, which greatly improves the lifting efficiency of the steel plate. Different lifting tonnages Magnets can be grouped and controlled to adapt to steel plate spreaders of different lengths, which greatly improves the efficiency of steel plate lifting.
7. The magnetic block can be round disc type, square type, rectangle type, etc.
