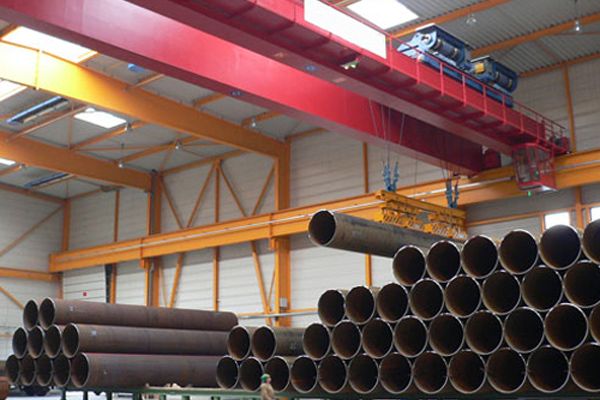

Product Name: Intelligent Steel-Pipe Distribution Overhead Crane
Capacity: 16/16t
Span: 26.5m
Lifting Height: 7m

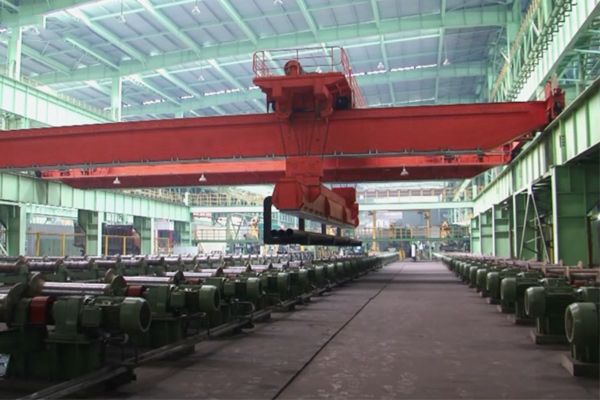

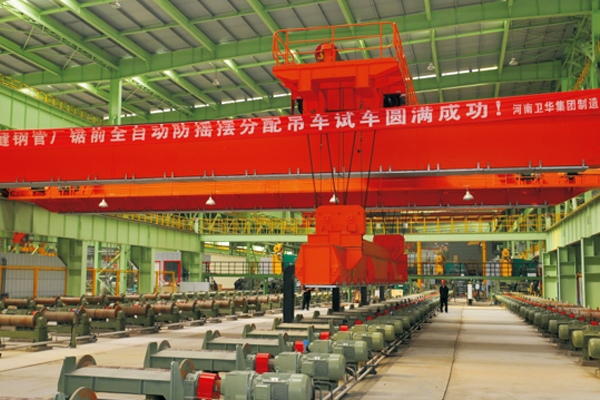

This crane is mainly used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport materials from one roller table to any appointed places, thus realize intelligent steel-pipe distribution.
This overhead crane is mainly used to distribute steel-pipes in production line before the steel-pipes being sawed. The intelligent overhead crane can transport steel pipes from one roller table to any appointed places, thus realize intelligent steel-pipe distribution.
Features of Intelligent Steel Pipe Distribution Crane:
1. Position signal is input from the encoder to PLC achieving automatic precise positioning. The PLC calculates the speed, and V-shaped structured wire-rope for anti-sway to reduce swing amplitude and increase the production efficiency and safety of the crane.
2. This crane adopts redundant design scheme. The lifting mechanism, trolley traveling mechanism and electric parts have backups system that increases its reliability.
3. Anti-sway and automatic precise positioning system to accomplish full-automatic, quick and intelligent transport and distribution of steel pipes.
.jpg)
Overhead Crane on Dam
.jpg)
| Technical Specifications | ||||||||
| Lifting Capacity | t | 16+16 | ||||||
| Span | m | 26.5 | ||||||
| Lifting Height | m | 7 | ||||||
| Work Duty | A7 | |||||||
| Speed | Lifting | m/min | 1.2~12 | |||||
| Crane Traveling | 6.2~62 | |||||||
| Trolley Traveling | 20.6 | |||||||
| Power | KW | 315 | ||||||
| Max Wheel Load | KN | 295 | ||||||
| Recommand Track | QU100 | |||||||
| Power Supply | 3 Phase A.C.50Hz 380V | |||||||
