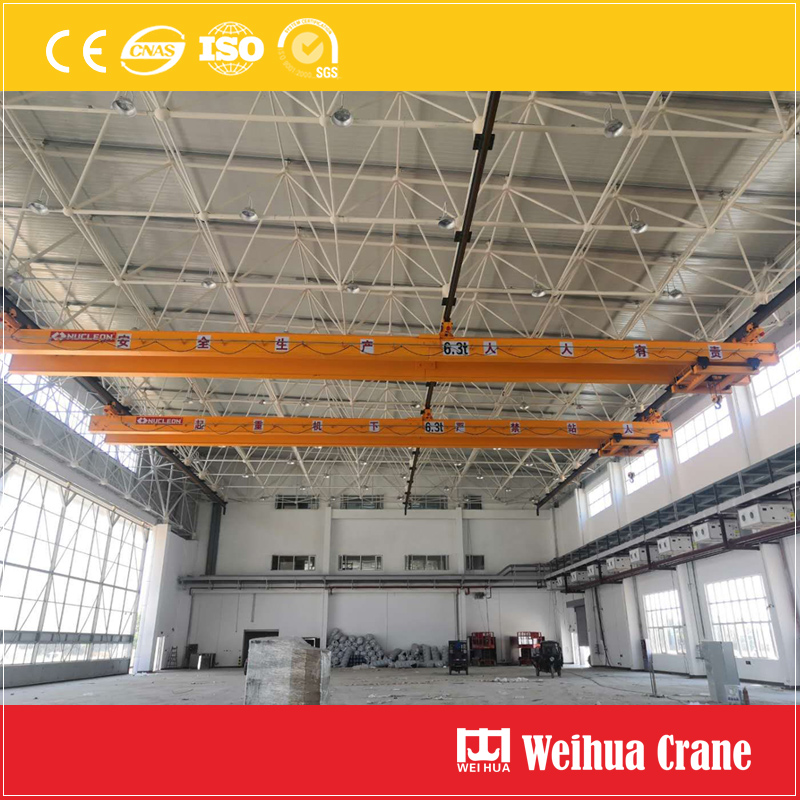

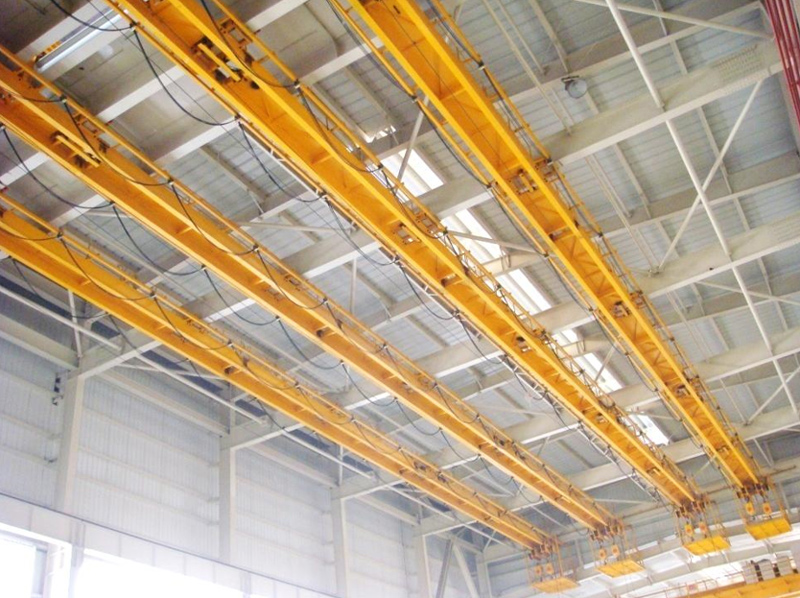

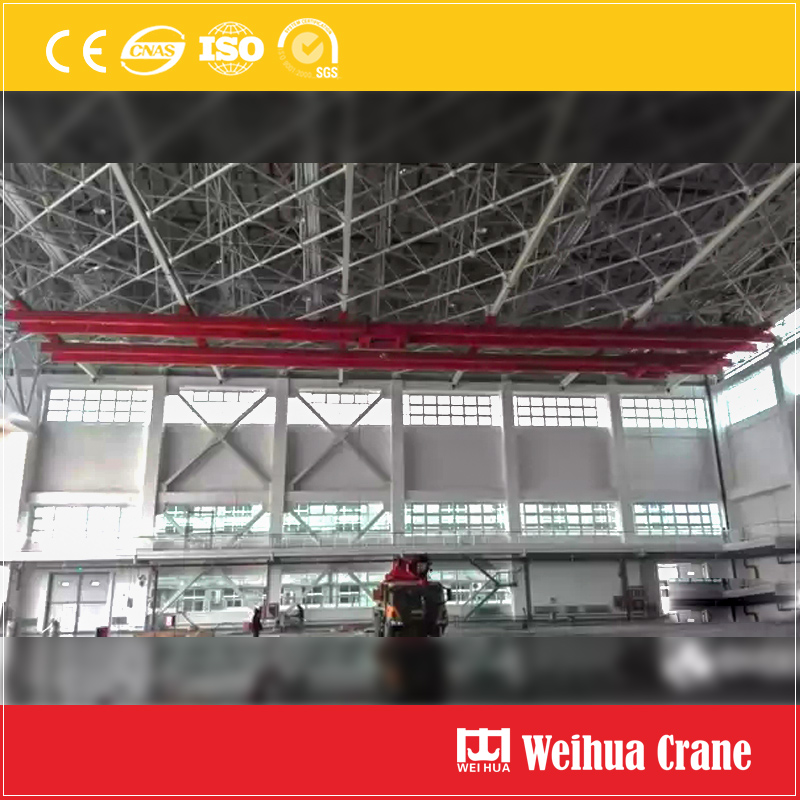

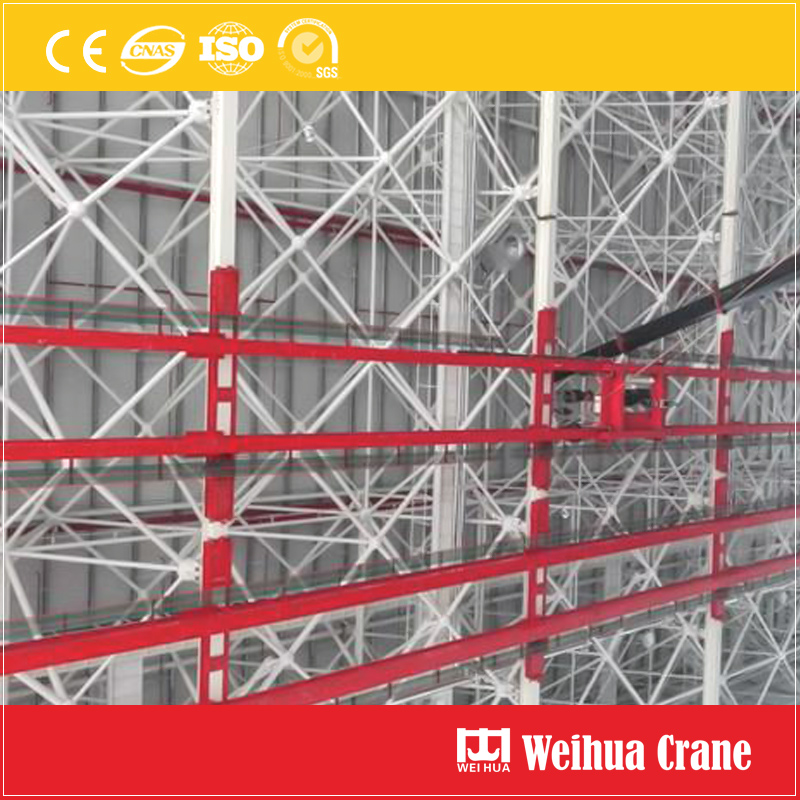

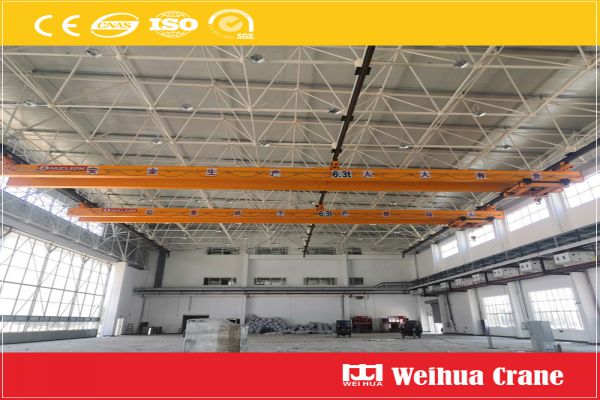

Multi-Pivot Suspension Crane

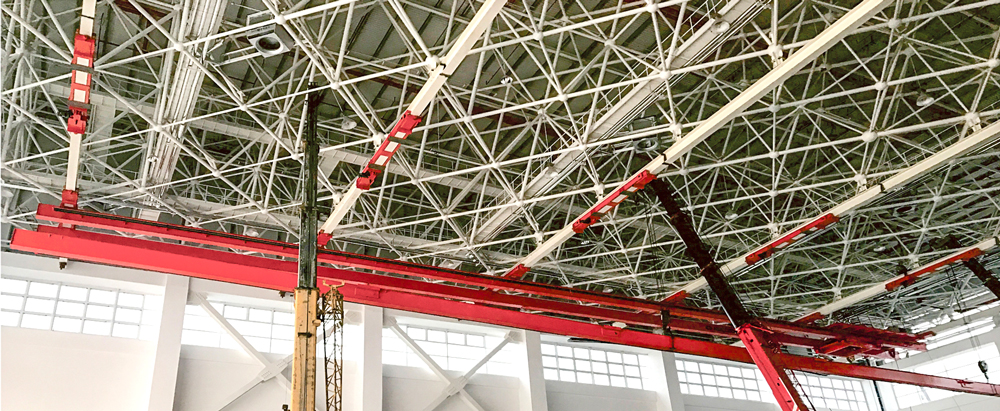

Multi-pivot suspension crane model LXD is a special purpose suspension crane designed to meet the needs of large-span industrial plants or warehouses, such as aircraft manufacturers and aircraft maintenance workshops. This kind suspension crane can reduce the influence of crane weight on the roof structure of houses, and is beneficial to reduce the height of buildings and save a large amount of plant construction costs.

Features:

1. Multiple suspension pivots, large span, large workshop coverage area;

2. Adjustable horizontal guide wheels to guide the smooth operation of the crane;

3. Independent friction drive design maintains constant friction between the drive wheel and the track, avoiding wheel skidding;

4. The traveling wheel is separated from the friction wheel, which is convenient for assembly and maintenance;

5. The end carriage adopts an articulated double-wheel group design, which can reduce the pressure of a single wheel on the crane track;

6. Elastic connection between the drive unit and the end carriage, no lateral force on the end carriage.

Configuration:

1. Gear motor, stable and reliable operation;

2. The material of the walking wheel is made of wear-resistant engineering plastic material, which can avoid the abrasion of the walking wheel and the crane track;

3. Frequency conversion speed regulation, wide speed regulation range makes the equipment have higher positioning accuracy;

4. PLC control system can achieve the working of multiple cranes, increasing the working scope;

5. The working level of the crane can reach A5
