Product Name: 2-Pillar 2-Story Parking System

Dimension: 3,858mm*2,551mm*3,321mm

Power Supply: 380V, AC, 3P, 50Hz, or Single phase 220V

Lift Drive: Chain

Lift Speed: 2.5m/min

Motor Power: 2.2Kw



The 2-pillar 2-story parking system is a small and simple automated parking system. It can be used at private house, Enterprises, institutions, basement, underground Parking Lot, etc.





Description
Specification
Application
Description

The 2-pillar 2-story parking system is a small and simple automated parking system. It has a simple structure, small size, easy operation, which can be used at private house, Enterprises, institutions, basement, underground Parking Lot, etc.

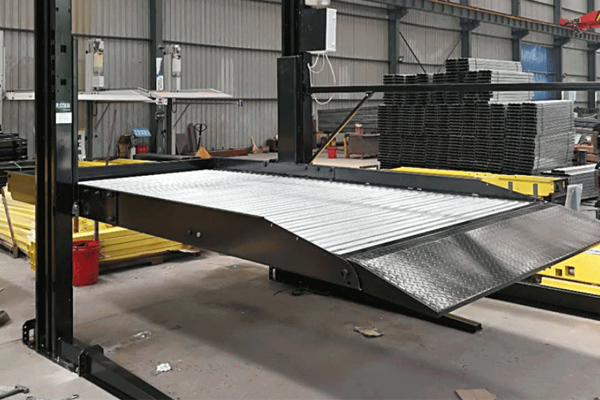

2-story-car-parking



The upper parking plate can be move down to carry the cars to the upper story, and the lower story can be parking car directly or also used a movable plate running on the ground to carry a car. When the upper plate needs to park a car and there is a car on the lower plate, it need to move out the car on the lower plate.

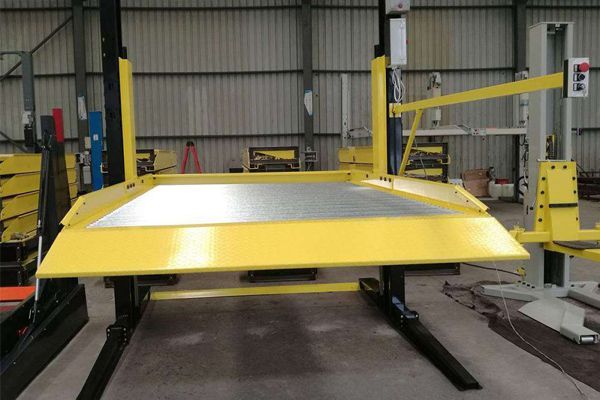

2-story-parking

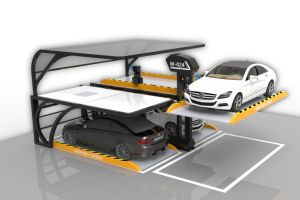

We also provide vertical looping parking system.



weihua-office-building



weihua-workshop



welding-robot



weihua-people



customer-visit



customer-visit



customer-visit



exhibition-moscow-russia-2018



cabin-packing-loading



CE-BV



ISO-14001-18001

Didn't find your industry solution? Consult our technical experts immediately.
Specification

Dimension: 3,858mm*2,551mm*3,321mm

Power Supply: 380V, AC, 3P, 50Hz, or Single phase 220V

Lift Drive: Chain

Lift Speed: 2.5m/min

Motor Power: 2.2Kw

Steel Structure Coating: Galvanized/epoxy primer, Polyurethane topcoat

Steel Plate Coating: Galvanized/sprayed

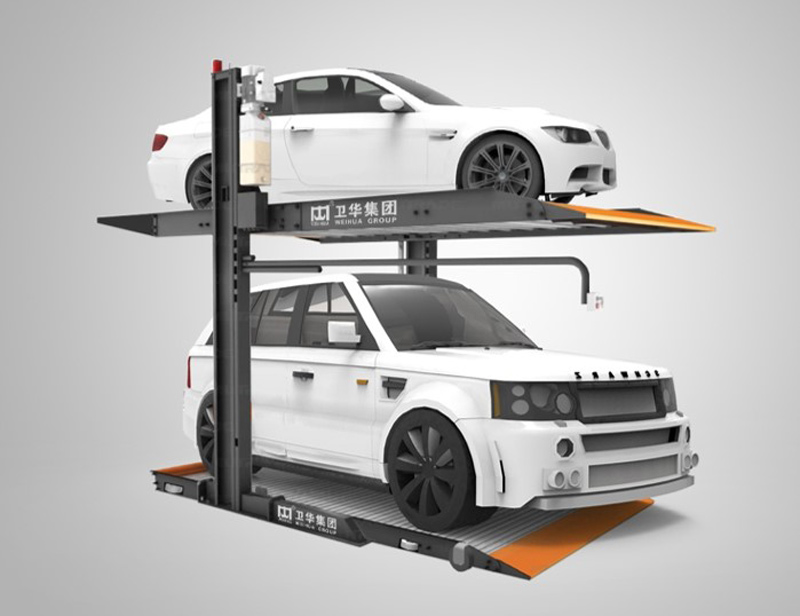

2-story-parking



2-story-garage

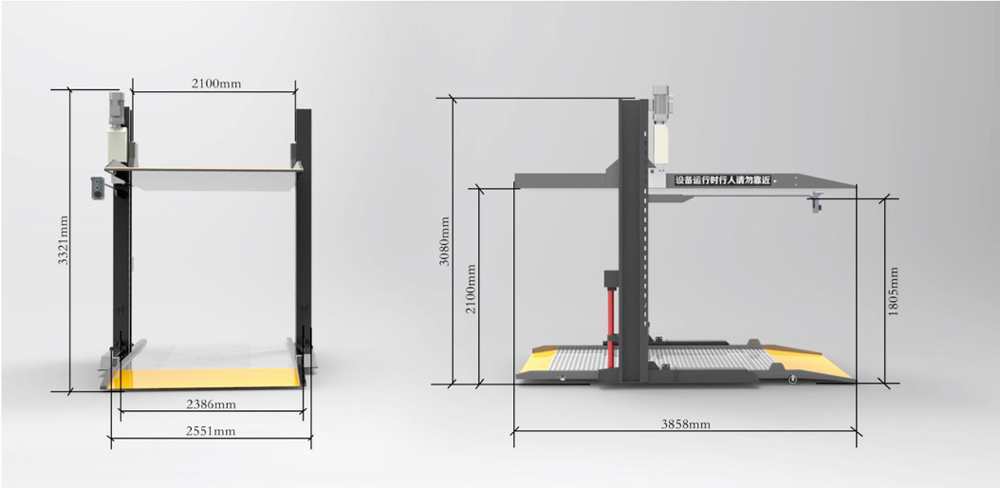

2-story-garage-dimension

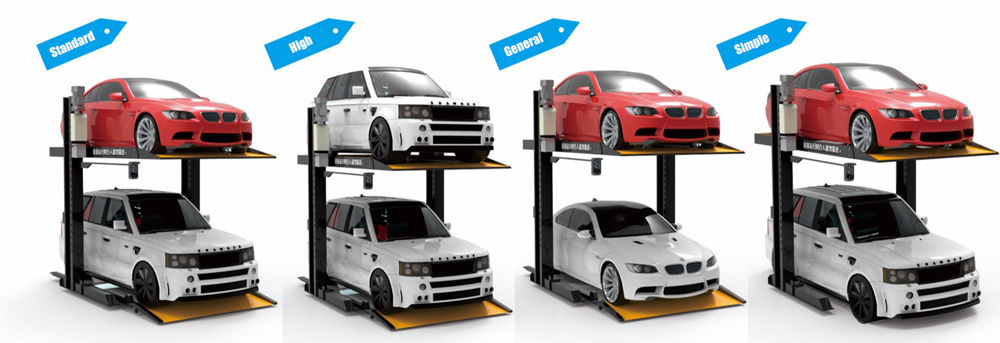

2-story-garage-models

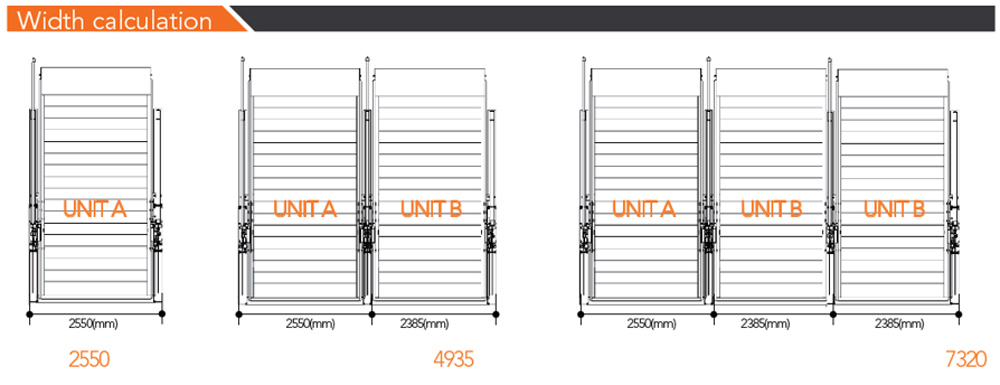

2-decker-garage-area
