1. Initial screening capacity.
2. Continuous and uniform feeding.
3. Good material liquidity without blockage.
4. Easy installation and repair.

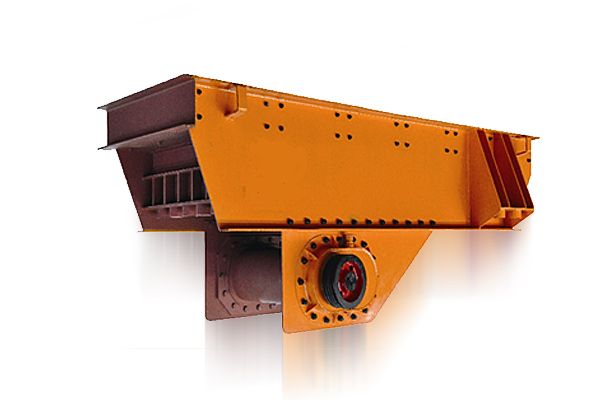

ZSW Vibrating Feeder is used for feeding materials to the jaw crusher. Therefore, it has been widely used for the crushing & screening combination equipment in the mineral separation, building materials, etc.
As a kind of linear vibrating-type feeding machine, the series of feeding machine applies the exciters with the stable vibration, reliable operation and long service life, therefore, it can make the continuous and uniform feeding for the crusher, enhance the productivity and continuous working capacity of crusher machinery, as well as carrying out the initial screening for materials. In general, it is used for feeding materials to the jaw crusher. Therefore, it has been widely used for the crushing & screening combination equipment in the mineral separation, building materials, water conservancy, chemical industry and other fields, such as, which can feed and dose materials to the crusher, coal preparation, transport and packaging machinery.
Structural Features:
1. It has the initial screening capacity.
2. It can make the continuous and uniform feeding.
3. It has favorable material liquidity without blockage.
4. It is easy to make installation and repairing.
| Specification | |||||
| Model | Max feed granularity (mm) | Processing capacity (t/h) | Power (kw) | Double vibration amplitude (mm) | weight (t) |
| ZSW380x95 | 500 | 96-210 | 11 | 9 | 4.1 |
| ZSW490x110 | 580 | 160-350 | 15 | 10 | 5.3 |
| ZSW600xl30 | 800 | 400-560 | 22/30 | 10 | 7.5 |
| ZSW600xl50 | 1000 | 460-615 | 30/37 | 9 | 8.7 |
| ZSW600xl80 | 1200 | 600-1000 | 37/45 | 9 | 12.6 |
