CD1 MD1 Wire Rope Electric Hoist

Product Name: CD1/ MD1 Electric Wire Rope Hoist

Lifting Weight: 0.25t-32t

Lifting Height: 6m-45m

Working Level: A4

CD1/MD1 wire rope electric hoist is a small-sized lifting equipment, which can be mounted on single beam crane, overhead crane, gantry crane and jib crane. With slight modification, CD1/MD1 wire rope electric hoist can be also used as winch.

TAG: Wire Rope Electric Hoist

Tel:008618238636691
Email:weihua@craneweihua.com
PDFDownload

Chat Now Message

Description
Specification
Related Products
Related Case
Inquiry

Description

Model CD1/MD1 wire rope electric hoist is a small-sized lifting equipment, which can be mounted on single beam crane, overhead crane, gantry crane and jib crane. With slight modification, CD1/MD1 wire rope electric hoist can be also used as winch.

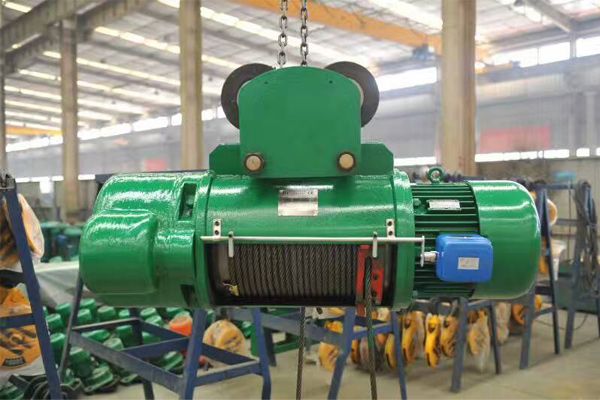

cd-electric-hoist

CD1/MD1 wire rope electric hoist is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops. Model CD1 hoist has only one normal speed, which can satisfy normal application. Model MD1 hoist has 2 working speeds: normal and low speed. At low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools.

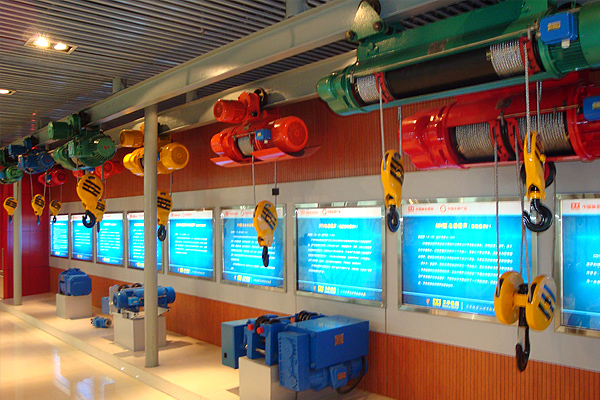

electric-hoist

Installation&Commissioning:

1. The trolley installation should be adjusted according to the width of the I-beam track with washers to ensure that the clearance between the wheel edge and the track is 4-5mm;

2. Installation, wiring and commissioning of the lifting weight limiter;

3. Installation and commissioning of the limiter (the limit is adjusted upward, the top of the hook and the drum shell are kept about 200mm space, when the limit is lower, the remaining total safety wire rope on the drum is kept at least 2 laps);

4. Check the refueling amount and oil quality of the reducer;

5. Inspection and adjustment of electronic brake;

6. Check and ensure the wiring inside the control box is firm, ensure the insulation resistance is normal, and ensure the cable wiring from the control box is correct;

7. Check and make sure the wedge and wedge sleeve are installed firmly;

8. Check and make sure the wire rope is normal, to avoid bending, corrosion, broken wire;

9. No-load test run and load test run.

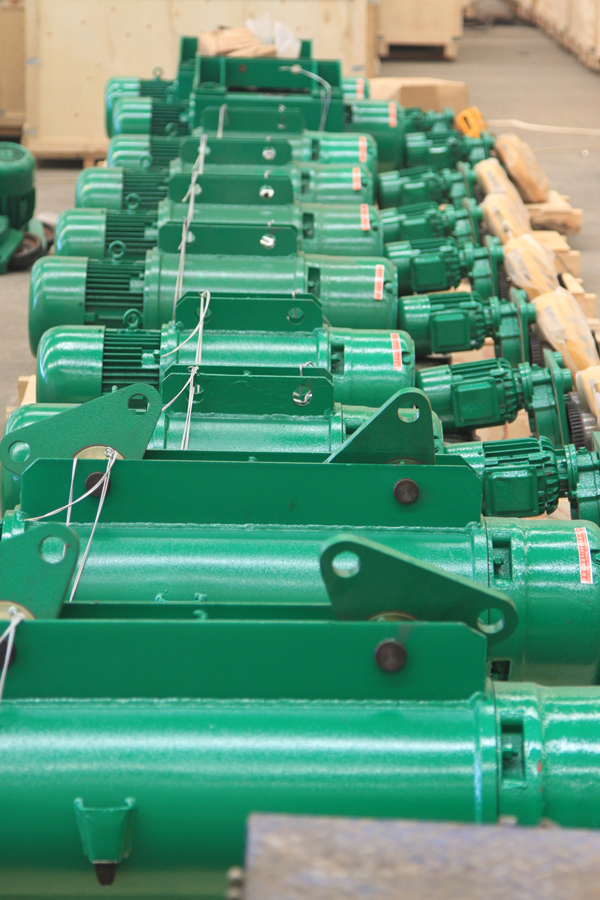

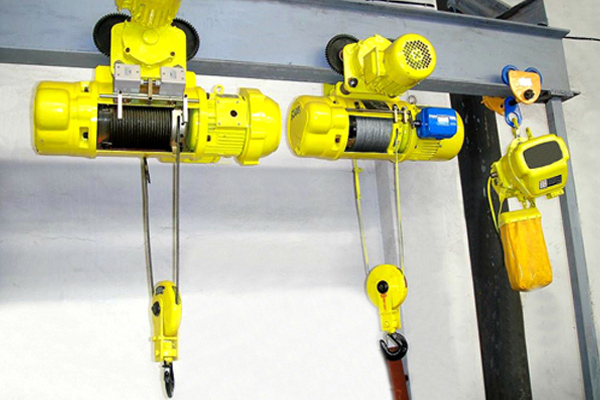

cd-electric-hoists

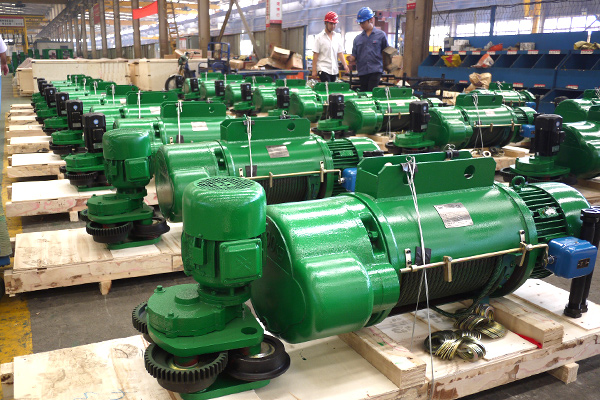

cd-hoist

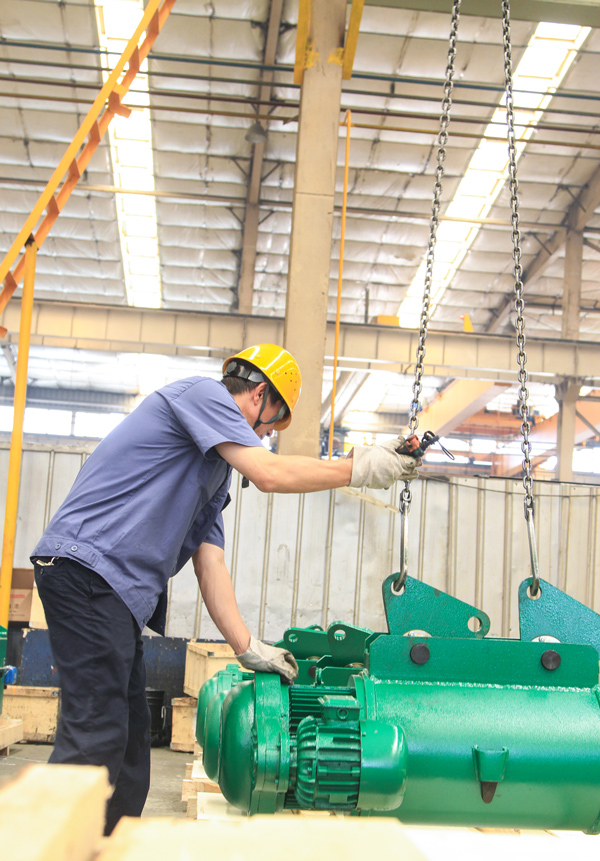

electric-hoists

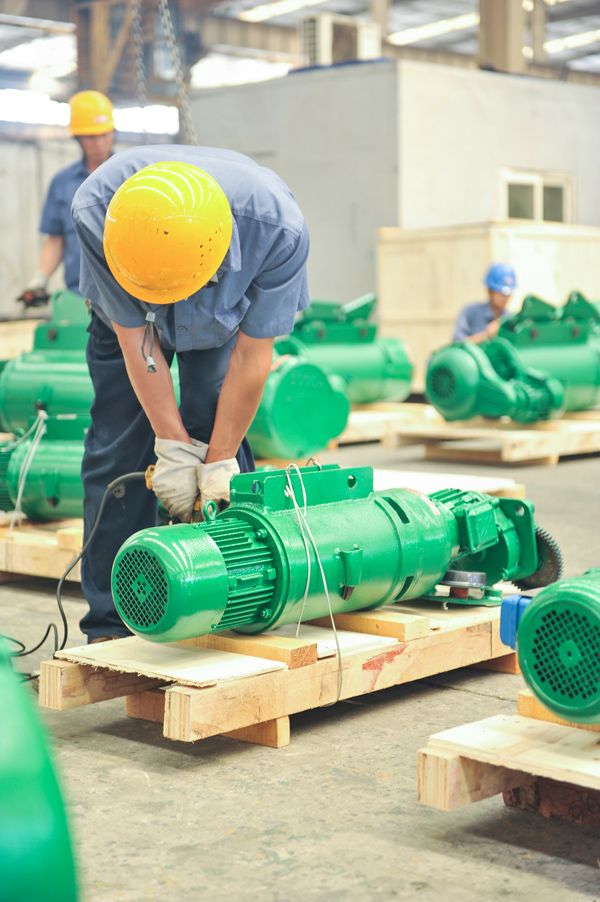

wire-rope-electric-hoist

HOIST-PACKING

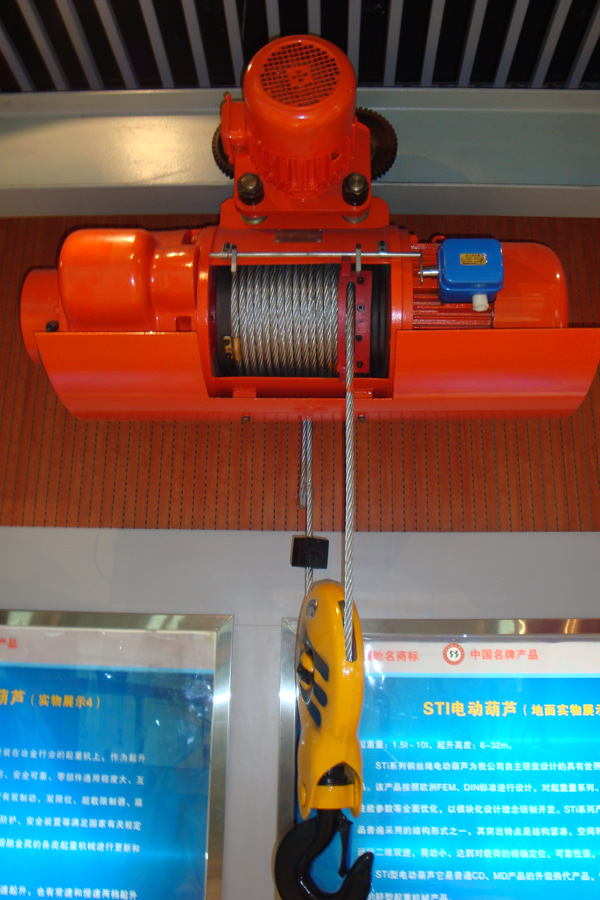

cd-md-hoist

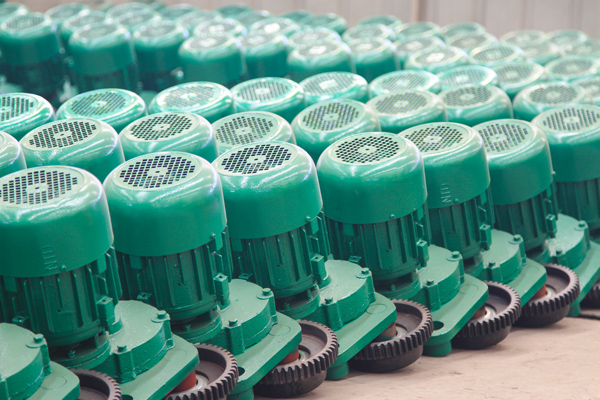

electric-hoist-motor

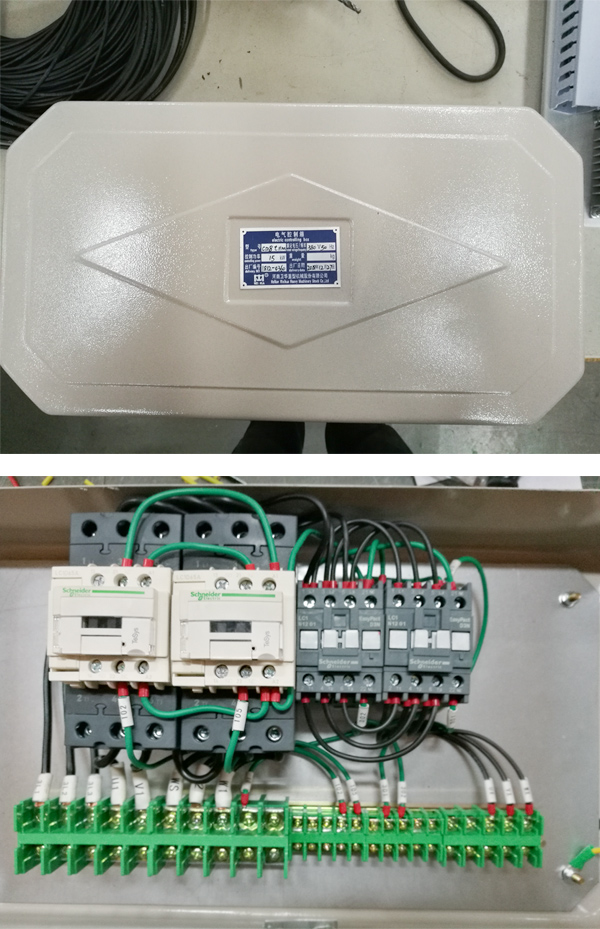

hoist-electric-box

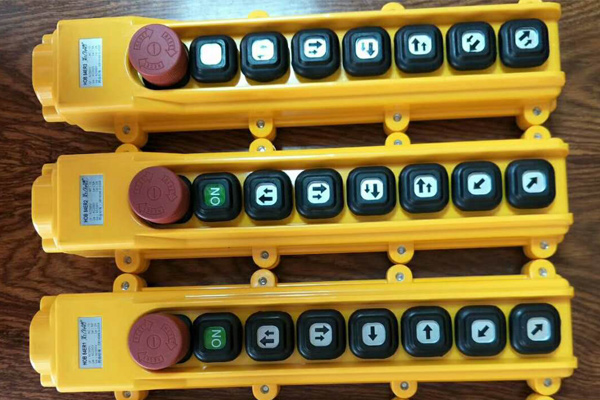

electric-hoist-pendant

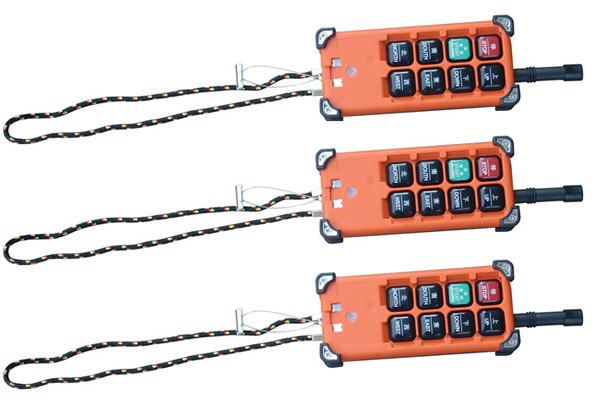

hoist-remote-control

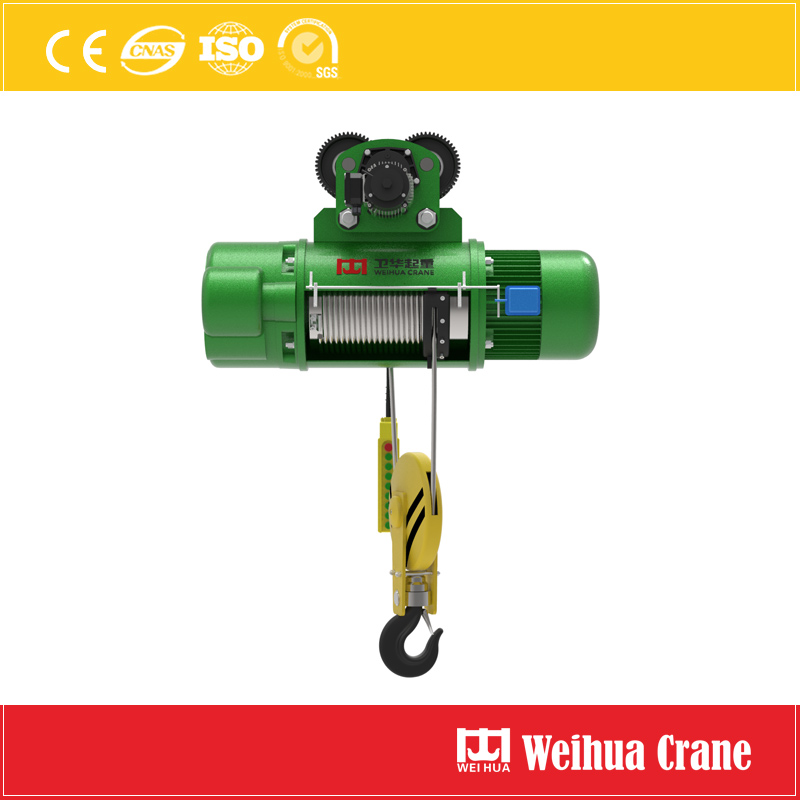

cd-single-speed-hoist

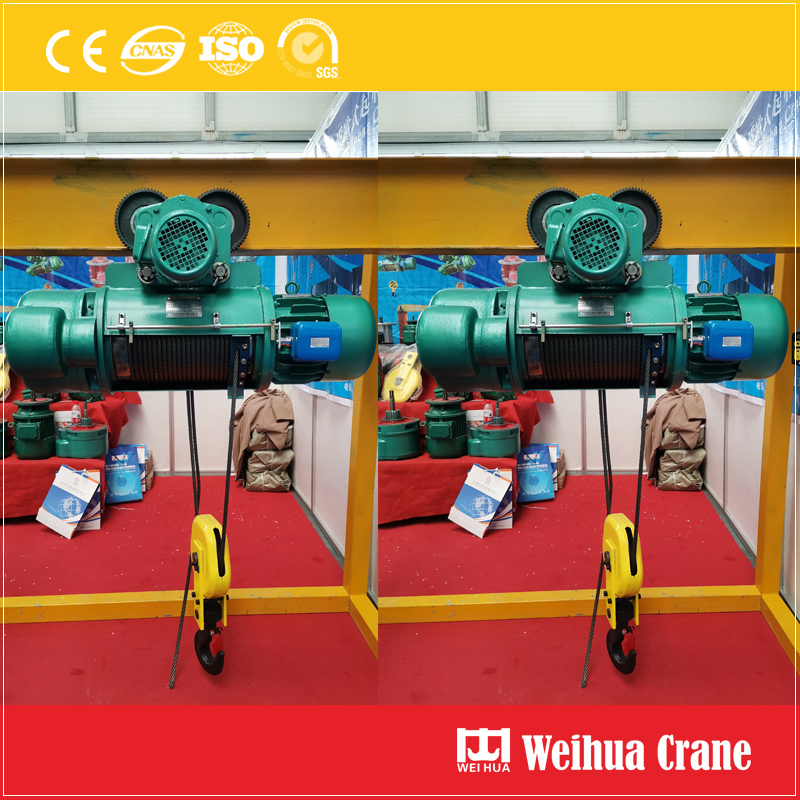

cd1-md1-hoist

crane-radio-remote-control

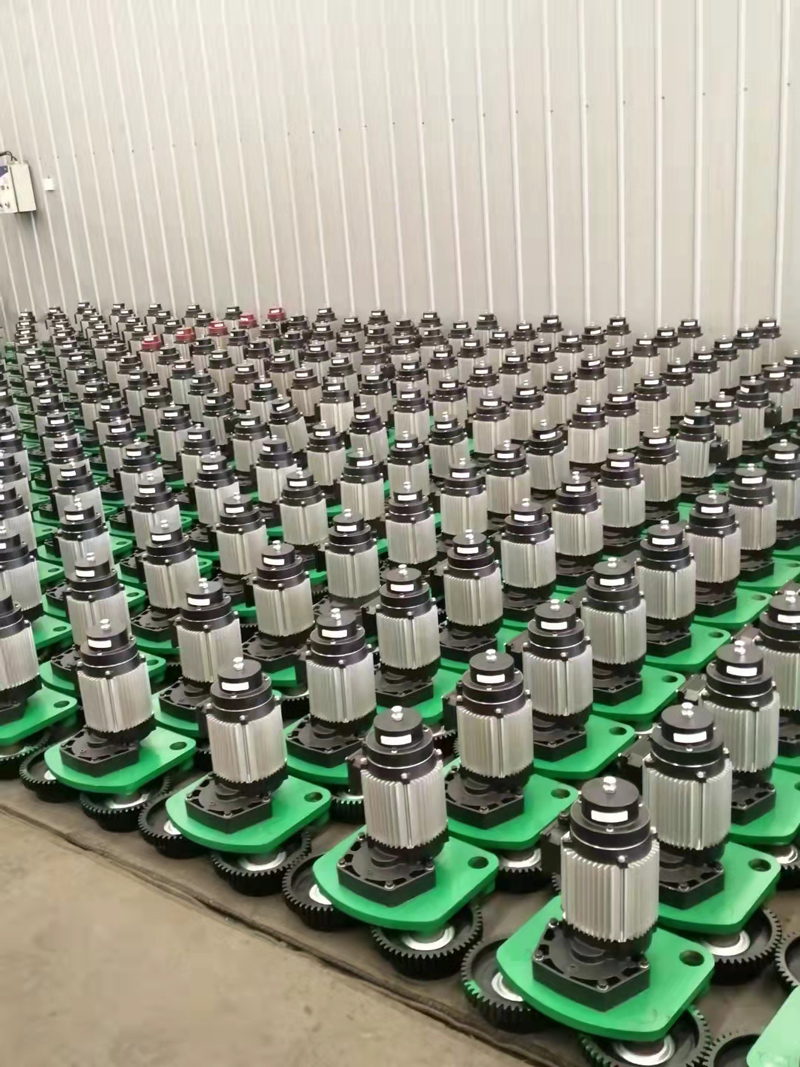

hoist-motors-trolleys

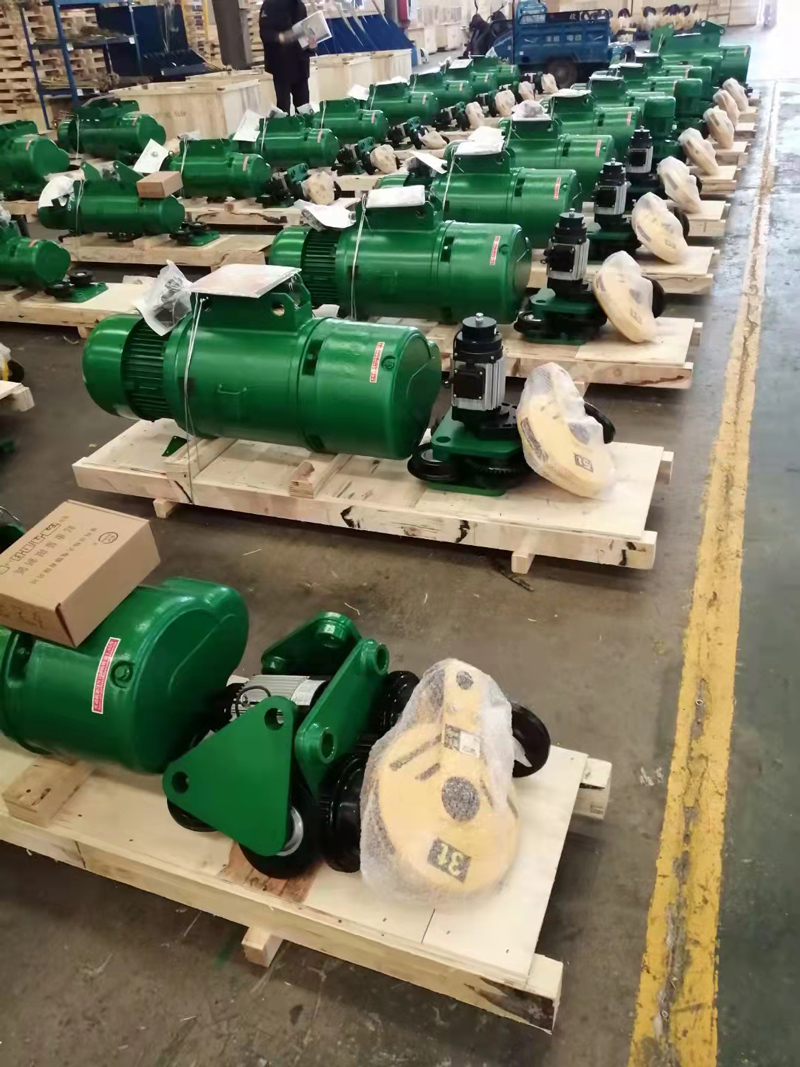

3t-cd-md-hoist-for-packing

hoist-wooden-case-packing-for-shipping

weihua-office-building

weihua-products

welding-robot

weihua-people

customer-visit

expo

SGS-Iso9001

ISO-14001

TAG: Wire Rope Electric Hoist

Specification

Model	Lifting Weight	Lifting Speed	Running Speed	Hoisting Motor		Running Motor		Weight
Model	t	m/min	m/min	Model	Power kW	Model	Power kW	kgs
CD 1T-12M	1	8	20	ZD22-4	1.5	ZDY11-4	0.2	172
CD 3T-12M	3	8	20	ZD41-4	7.5	ZDY12-4	0.8	597
CD 5T-12M	5	8	20	ZD41-4	7.5	ZDY21-4	0.8	597
CD 10T-12M	10	7	20	ZD51-4	13	ZDY21-4	0.8	1100
CD12T-12M	12	3.5	18	ZD51-4	13	ZDY21-4	0.8	1200
CD 16T-12M	16	3.5	18	ZD51-4	13	ZDY21-4	0.8	1200
CD 20T-12M	20	4.2	14	ZD52-4	18.5	ZDY21-4	0.8	1930
CD 32T-12M	32	3	16	ZDx62-6	18.5	ZDY22-4	1.5	2950

Note: Lifting height can be customized i.e. 6m, 9m, 20m

Model	Lifting Height	Lifting Speed	Running Speed	Hoisting Motor		Running Motor		Weight
Model	t	m/min	m/min	Model	Power kW	Model	Power kW	kgs
MD 1T-12M	1	8/0.8	20	ZDS22-4	1.5/0.2	ZDY11-4	0.2	199
MD 3T-12M	3	8/0.8	20	ZDS41-4	7.5/0.8	ZDY12-4	0.8	654
MD 5T-12M	5	8/0.8	20	ZDS41-4	7.5/0.8	ZDY21-4	0.8	654
MD 10T-12M	10	7/0.7	20	ZDS51-4	13/1.5	ZDY21-4	0.8	1150
MD 12T-12M	12	3.5/0.35	18	ZDS51-4	13/1.5	ZDY21-4	0.8	1280
MD 16T-12M	16	3.5/0.35	18	ZDS51-4	13/1.5	ZDY21-4	0.8	1280
MD 20T-12M	20	4.2/0.42	14	ZDS52-4	18.5/2.2	ZDY21-4	0.8	1450
MD 32T-12M	32	3/0.3	16	ZDx62-6	18.5/2.2	ZDY22-4	1.5	2950
