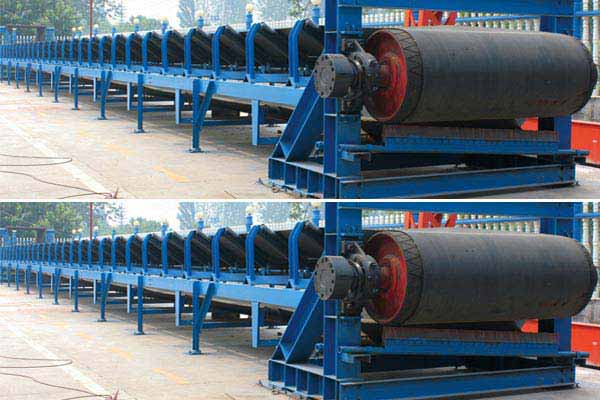

Product Name: DTII Belt Conveyor
Bandwidth: 500, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2200, 2400mm
Tape: Woven tape: CC-56, nylon tape: NN100-300, polyester tape: EP100 600, steel wire core tape: st630-6300
Belt speed: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 40, 5.0, 6.3
The DTII belt conveyor is considered as the optimal high-efficient continuous transportation equipment with long transmission distance, large traffic volume and continuous conveying, etc.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
Read More >The DTII belt conveyor is considered as the optimal high-efficient continuous transportation equipment. Compared with other transportation conveyors, it has the following advantages, such as, long transmission distance, large traffic volume and continuous conveying, moreover, due to its reliable operation; it is easy to realize the automatic and concentrated control.
Technical Parameter:
Bandwidth: 500, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2200, 2400mm
Tape: Woven tape: CC-56, nylon tape: NN100-300, polyester tape: EP100 600, steel wire core tape: st630-6300
Belt speed: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 40, 5.0, 6.3
.jpg)
.jpg)
.jpg)
| Band speed(m/s) | |||||||||
| Band width(mm) | 0.8 | 1 | 1.25 | 1.6 | 2 | 2.5 | 3.15 | 4 | 5 |
| 500 | 69 | 87 | 108 | 139 | 174 | 217 | |||
| 650 | 127 | 159 | 198 | 254 | 318 | 397 | |||
| 800 | 198 | 248 | 310 | 397 | 496 | 620 | 781 | ||
| 1000 | 324 | 405 | 507 | 649 | 811 | 1014 | 1278 | 1622 | |
| 1200 | 593 | 742 | 951 | 1188 | 1486 | 1872 | 2377 | 2971 | |
| 1400 | 825 | 1032 | 1321 | 1652 | 2065 | 2602 | 3304 | 4130 | |
| 1600 | 2186 | 2733 | 3444 | 4373 | 5466 | ||||
| 1800 | 2795 | 3494 | 4403 | 5591 | 6989 | ||||
| 2000 | 3470 | 4338 | 5466 | 6941 | 8676 | ||||
Notes: The transport capacity Q is calculated (its unit: t/h) when the horizontal transport is applied, the run stacking angle θ=20°, stacking density of materials p=1000kg/m3 and the supporting roller trough angle λ=35°
