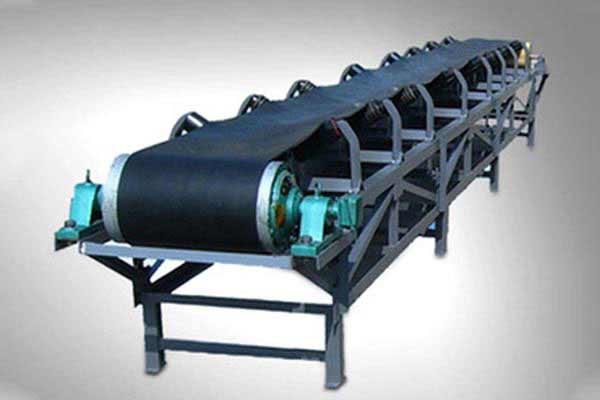

Product Name: TD75 Belt Conveyor
Bandwidth:500, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2200, 2400mm
Tape: Woven tape: CC-56, nylon tape: NN100-300, polyester tape: EP100 600, steel wire core tape: st630-6300
Belt speed: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 40, 5.0, 6.3
DT75 Belt Conveyor is applied to truck loading, ship loading, transshipment transport or stacking bulk materials or the integrated articles in the metallurgy, mine, coal, port, transport, water and electricity, chemical engineering and other industries.
TD75 belt conveyor has the large traffic volume, simple structure, convenient maintenance, low costs, strong universality and other advantages, it has been widely applied to truck loading, ship loading, transshipment transport or stacking all kinds of bulk materials or the integrated articles in the metallurgy, mine, coal, port, transport, water and electricity, chemical engineering and other industries.
Technical Parameter:
Bandwidth:500, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2200, 2400mm
Tape: Woven tape: CC-56, nylon tape: NN100-300, polyester tape: EP100 600, steel wire core tape: st630-6300
Belt speed: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 40, 5.0, 6.3
We also provide other conveyors, click to know more.
.jpg)
| Supporting Roller Carrying Form | V(m/s) | Bandwidth B(mm) | |||||
| 500 | 650 | 800 | 1000 | 1200 | 1400 | ||
| Transport Capacity Q (t/h) | |||||||
| Trough Roller | 0.8 | 78 | 131 | ||||
| 1 | 97 | 164 | 278 | 435 | 655 | 891 | |
| 1.25 | 122 | 206 | 348 | 544 | 819 | 1115 | |
| 1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 | |
| 2 | 191 | 323 | 546 | 853 | 1284 | 1748 | |
| 2.5 | 232 | 391 | 661 | 1033 | 1556 | 2118 | |
| 3.15 | 824 | 1233 | 1858 | 2528 | |||
| 4 | 2202 | 2996 | |||||
| Parallel Roller | 0.8 | 41 | 67 | 118 | |||
| 1 | 52 | 88 | 147 | 230 | 345 | 469 | |
| 1.25 | 66 | 110 | 184 | 288 | 432 | 588 | |
| 1.6 | 84 | 142 | 236 | 368 | 553 | 753 | |
| 2 | 103 | 174 | 289 | 451 | 677 | 922 | |
| 2.5 | 125 | 211 | 350 | 546 | 821 | 1117 | |
Notes: The transport capacity Q value as specified in the table is calculated when the stacking density p, inclination factor k and run stacking angle θ are 1000kg/m3, 1.0 and 300 respectively. When p and k value are changed, the Q value shall be increased or decreased in proportion. If p value is changed, Q shall be multiplied by the correction factor.
