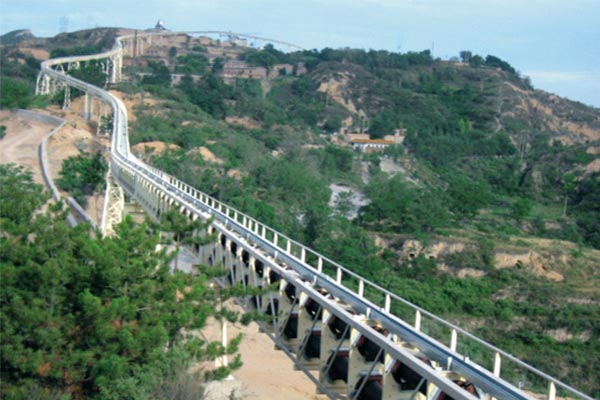

Product Name: Tube Belt Conveyor
Tube Diameter: 100-850mm
Band Width: 360-3,100mm
As a kind of environment-friendly continuous transport equipment, the circular tube belt conveyor is mainly used for transporting coal, colliery coal, coke, blending materials, sintered ore, mineral powder, petroleum coke, limestone, etc.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
Read More >As a kind of environment-friendly continuous transport equipment, the circular tube belt conveyor is mainly used for transporting coal, colliery coal, coke, blending materials, sintered ore, mineral powder, petroleum coke, limestone, sand-gravel aggregate, acetylene sludge, humidifying dust, chemical fertilizer, salt, waste paper, phosphorus gypsum, sulfur-iron slag and all kinds of bulk materials. The circular tube belt conveyor has the same working principle with the ordinary belt conveyor; namely, make use of friction to move the conveyor belt and its materials. The most of components can be commonly used with the ordinary belt conveyor, however, the difference is that the conveyor belt shall be rolled up in the circular tube shape.
Performance Features:
1. It can seal and transport the bulk materials.
2. It can arrange the transport routines in the space warp way.
3. It can enhance the transport inclination angle.
4. There is no off-tracking phenomenon.
5. It can transport materials in two directions.
Principle and Structure of Circular Tube Belt Conveyor:
1. Common discharge port
2. Charging port
3. Transition section of materials receiving
4. Special tubulous tape
5. Transition section of materials unloading
6. Transmission Roller

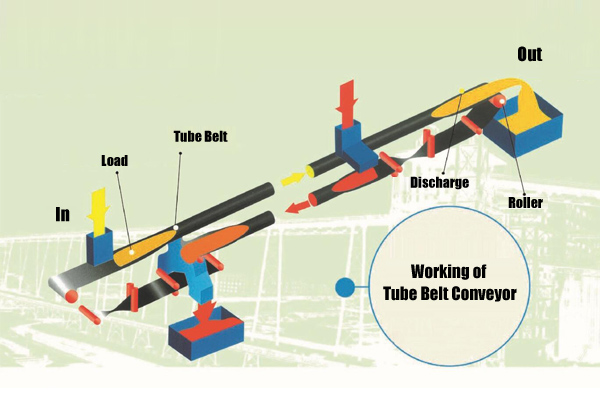

When the conveyor belt has received the materials from the transition section on its tail, the conveyor belt will be rolled up in the circular tube shape gradually, then, the circular tube tape will be applied to transport the materials in the sealed way, then, the conveyor belt will be unfolded gradually when the materials are transported to the head transition section until the materials are discharged. (As the figure shows)
We also provide other conveyors, click to know more.

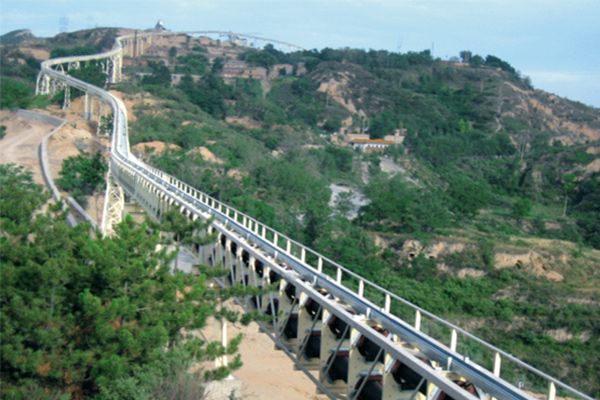

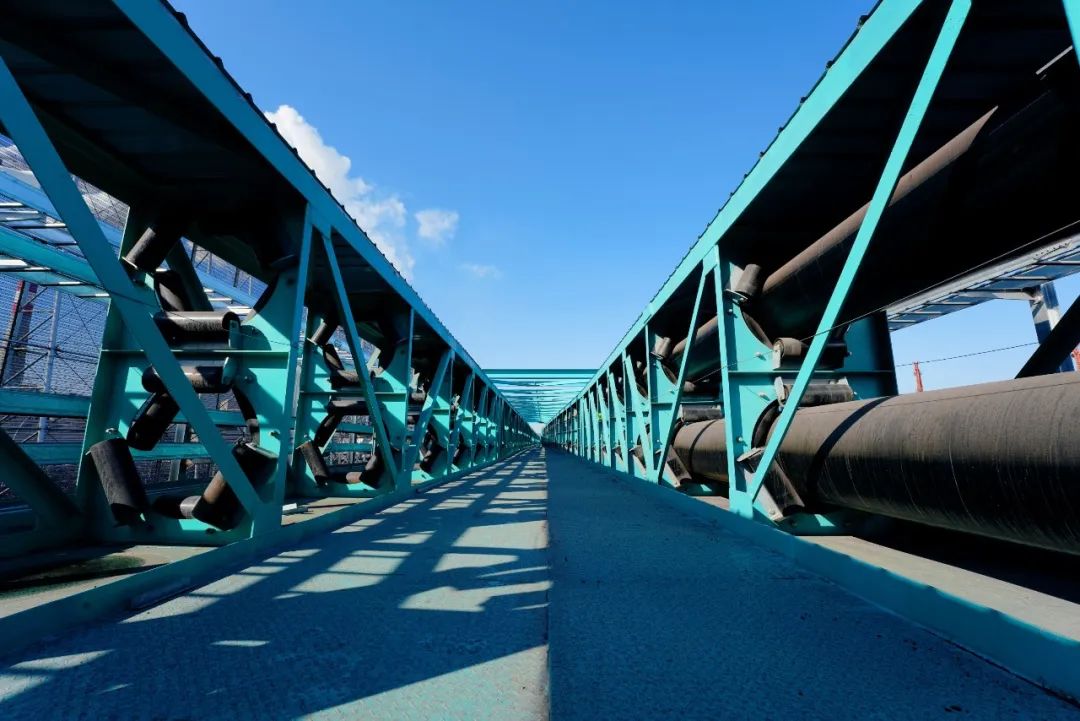

Tube Belt Conveyor at Huanghua Por for Coal Handling
.jpg)
|
Tube Diameter (mm) |
Band width (mm) |
Bandspeed (m/s) | |||||||
| 0.5 | 0.63 | 0.8 | 1 | 1.25 | 1.6 | 2 | 2.5 | ||
| Φ100 | 360 | 10.6 | 13.4 | 17 | 21.2 | 26.5 | 33.9 | 42.4 | 53 |
| Φ150 | 550 | 23.9 | 30.1 | 38.2 | 47.7 | 59.6 | 76.3 | 95.4 | 119.3 |
| Φ200 | 730 | 42.4 | 53.4 | 67.9 | 84.8 | 106 | 135.7 | 169.6 | 212.1 |
| Φ250 | 910 | 66.3 | 83.5 | 106 | 132.5 | 165.7 | 212.1 | 265.1 | 331.3 |
| Φ300 | 1100 | 95.4 | 120.2 | 152.7 | 190.9 | 238.6 | 305.4 | 381.7 | 477.1 |
| Φ350 | 1280 | 129.9 | 163.7 | 207.8 | 259.8 | 324.7 | 415.6 | 519.5 | 649.4 |
| Φ400 | 1460 | 169.6 | 213.8 | 271.4 | 339.3 | 424.1 | 542.9 | 678.6 | 848.2 |
| Φ450 | 1640 | 214.7 | 270.5 | 343.5 | 429.4 | 536.8 | 687.1 | 858.8 | 1073.5 |
| Φ500 | 1820 | 265.1 | 334 | 424.1 | 530.1 | 662.7 | 848.2 | 1060.3 | 1325.4 |
| Φ560 | 2050 | 332.5 | 419 | 532 | 665 | 831.3 | 1064 | 1330 | 1662.5 |
| Φ600 | 2190 | 381.7 | 480.9 | 610.7 | 763.4 | 954.3 | 1221.5 | 1526.8 | 1908.5 |
| Φ630 | 2300 | 420.8 | 530.2 | 673.3 | 841.7 | 1052.1 | 1346.6 | 1683.3 | 2104.1 |
| Φ700 | 2550 | 519.5 | 654.6 | 831.3 | 1039.1 | 1298.9 | 1662.5 | 2078.2 | 2597.7 |
| Φ800 | 2900 | 678.6 | 855 | 1085.7 | 1357.2 | 1696.5 | 2171.5 | 2714.3 | 3392.9 |
| Φ850 | 3100 | 766.1 | 965.2 | 1225.7 | 1532.1 | 1915.1 | 2451.4 | 3064.2 | 3830.3 |
|
Tube Diameter
(mm) |
Band width
(mm) |
Bandspeed (m/s) |
|||||||
|
3.15 |
3.55 |
4 |
4.5 |
5 |
5.6 |
6.3 |
7.1 |
||
|
Φ100 |
360 |
66.8 |
75.3 |
84.8 |
95.4 |
106 |
118.8 |
133.6 |
150.6 |
|
Φ150 |
550 |
150.3 |
169.4 |
190.9 |
214.7 |
238.6 |
267.2 |
300.6 |
338.8 |
|
Φ200 |
730 |
267.2 |
301.1 |
339.3 |
381.7 |
424.1 |
475 |
534.4 |
602.2 |
|
Φ250 |
910 |
417.5 |
470.5 |
530.1 |
596.4 |
662.7 |
742.2 |
835 |
941 |
|
Φ300 |
1100 |
610.2 |
677.5 |
763.4 |
858.8 |
954.3 |
1068.8 |
1202.4 |
1355 |
|
Φ350 |
1280 |
818.3 |
922.2 |
1039.1 |
1169 |
1298.9 |
1454.7 |
1636.6 |
1844.4 |
|
Φ400 |
1460 |
1068.8 |
1204.5 |
1357.2 |
1526.8 |
1696.5 |
1900 |
2137.5 |
2409 |
|
Φ450 |
1640 |
1352.7 |
1524.4 |
1717.7 |
1932.4 |
2147.1 |
2404.7 |
2705.3 |
3048.9 |
|
Φ500 |
1820 |
1670 |
1882 |
2120.6 |
2385.6 |
2650.7 |
2968.8 |
3339.9 |
3764 |
|
Φ560 |
2050 |
2094.8 |
2360.8 |
2660 |
2992.6 |
3325.1 |
3724.1 |
4189.6 |
4721.6 |
|
Φ600 |
2190 |
2404.7 |
2710.1 |
3053.6 |
3435.3 |
3817 |
4275.1 |
4809.5 |
5420.2 |
|
Φ630 |
2300 |
2651.2 |
2987.9 |
3366.6 |
3787.5 |
4208.3 |
4713.3 |
5302.4 |
5975.8 |
|
Φ700 |
2550 |
3273.1 |
3688.7 |
4156.3 |
4675.9 |
5195.4 |
5818.9 |
6546.2 |
7377.5 |
|
Φ800 |
2900 |
4275.1 |
4817.9 |
5428.7 |
6107.3 |
6785.8 |
7600.1 |
8550.2 |
9635.9 |
|
Φ850 |
3100 |
4826.2 |
5439 |
6128.5 |
6894.5 |
7660.6 |
8579.8 |
9652.3 |
10878 |
Notes: The volume according to horizontal transporting, filling rate is 75% and bulk density is 1t/m³.
