Wall Fixed Jib Crane

Product Name: Wall Fixed Jib Crane

Model: BX

Brief Introduction: Wall fixed jib crane is a small and medium-speed lifting equipment with characteristics of unique structure, safe and reliable operation, high efficiency, energy-saving, time-saving, effort-saving, and flexibility. It can be operated under three-dimensional environment. This wall fixed jib crane is a good choice in the cases of short distance, concentrated lifting.

Features: Flexible, saving room, simple operation

Application: Workshop, warehouse, production line, etc.

Introduction:

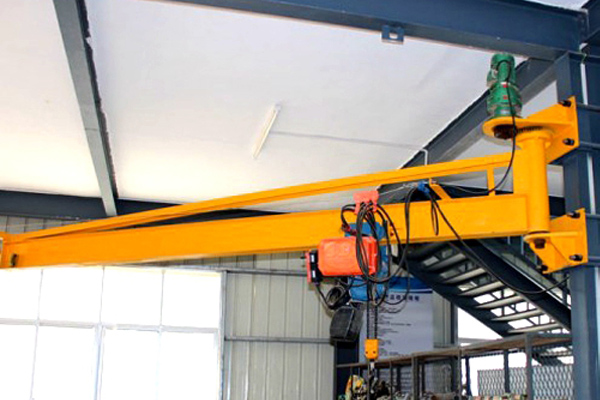

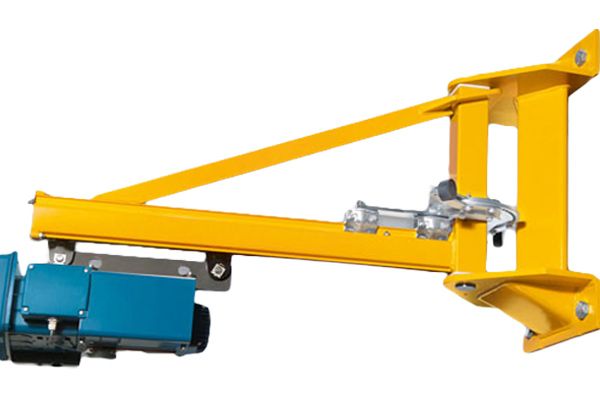

The wall-mounted jib crane is composed of a bracket, jib arm and electric hoist. The jib cantilever is fixed on the wall, concrete column or steel supporting structure, and it can be rotated according to user needs. The rotation/slewing can be manual and electric driven. The electric hoist (wire rope hoist or chain hoist) is installed on the jib crane track for lifting task.

Features&Application:

The wall-mounted jib crane is an energy-saving and efficient material lifting equipment with the advantages of modern, reasonable and simple structure, convenient operation, flexible rotation, light weight, flexible load movement, etc. This jib crane can be widely used in factories, mines, workshops, production lines, assembly lines and machine tools for loading and unloading, warehouses, docks, etc.

Working Environment:

1. Power source is 3-phase alternating current, rated frequency is 50Hz, and rated voltage is 380V.

2. The altitude height of site is ought to be less than 2,000m.

3. Forbidden used in flammable, explosive and corrosive gas environment.

4. Forbidden to lift fuse and blend deleterious stuff and flammable explosive stuff.

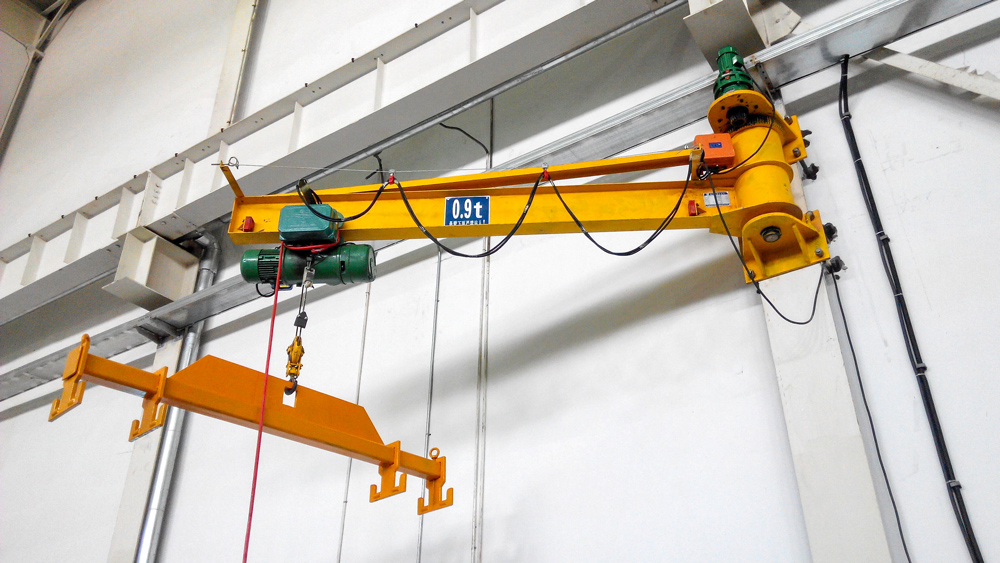

A capacity 900kg wall fixed jib crane with a model CD wire rope hoist

Working Operation:

1. Hoist for traveling under jib arm and lifting materials on floor.

2. The jib arm can be driven by the reducer on the slewing device.

3. The electrical control box is installed on the hoist.

4. This jib crane is controlled by the button pendant. There are eight buttons on the pendant, which control the fast rise, fast fall, slow rise, slow fall, left and right rotation and the horizontal movement of the hoist trolley.

Note:

1. Do not press the fast and slow button, positive and negative rotation button of the same motor at the same time during operation.

2. When working, it is forbidden for personal to stand under the jib arm.

3. It is forbidden to lift overload heavy objects.

Ordering Notice:

Ordering or signing the contract on the wall fixed jib cranes, customers shall offer the basic parameters (such as rated lifting weight, lifting height, valid radius and so on).
