Crane cabin air conditioner is a split type ac unit designed to cool down the overhead crane or gantry crane operator cabin and electrical room in high temperature environment. With unique design, the crane cabin air conditioner can be used in harsh environments with high temperature, strong vibration and harmful gases. It is widely used in the crane cabin, electrical room and high-pressure room in the field of metallurgical industry, steel mills, aluminum plants, field operations and coking industries such as coke blocking car, quenching car, coal charging car, coke pushing car, etc.

Air Conditioner Types:

There are a variety of models for users to choose from, such as integral unit, split unit, ceiling-mounted unit and wall-mounted unit.

Technical Advantages:

German special refrigeration technology to ensure product performance.

Features:

1. Improve the working environment under high temperature ≤80℃;

2. Scroll compressors and brand electrical components are used to ensure the working stability of condensers and evaporators in harsh environments;

3. The user-friendly interface operating system and synchronous cooling mode make the operation easier and ensure the product's shock resistance, automatic dustproof, and high temperature resistance;

4. High temperature resistant and environmentally friendly refrigerants (R142b, R12) can be selected according to user needs; it can also be customized according to different requirements of users. Various accessories are available to meet the needs of different users.

5. For the convenience of installation, the indoor unit and outdoor unit mounting bracket is available.

6. Waterless devices are also available according to customer needs.

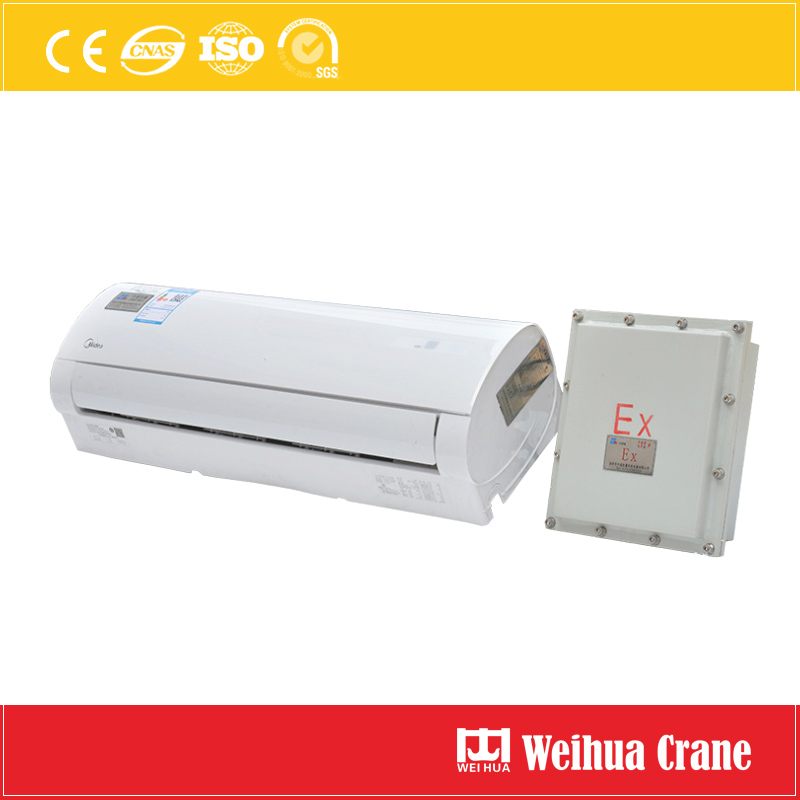

7. We also make explosion-proof type Air conditioner.

Advantages:

1.High temperature resistance and vibration resistance;

2. Automatic dust removal and maintenance-free;

3. High heat exchange efficiency and good corrosion resistance of the coating;

4. High quality capillary thermoplastic pipes are connected with high and low pressure components. The compressor adds vibration-proof pipes on the discharge side to ensure system vibration, prolong the service life of the machine and reduce the maintenance rate.

Cooling capacity: (W) 4000, 6000, 8000, 12000, 16000

Cooling input power: (W) 2350, 2950, 4300, 6550, 8740

Heating capacity: (W) 3000, 4000, 7000, 8000, 10000

Heating input power: (W) 3280, 4330, 7620, 8670, 10880

Input power: AC380V-3PH-50Hz

Throttle method: capillary throttling

Indoor circulating air volume: (m3/h) 1000, 1200, 2000, 2300, 2900

Air supply method: direct air from the front

Refrigerant: R142b

Charge: (g) 2200, 3500, 2×2200, 2×3500, 2×5000

Steam pipe size: Φ19×1.0, Φ19×1.0, Φ19×1.0, Φ19×1.0, Φ19×1.0

Liquid pipe size: Φ12×1.0, Φ12×1.0, Φ12×1.0, Φ12×1.0, Φ12×1.0

Indoor unit weight: (kg) 75, 80, 85, 95, 125, 135, 165, 180, 165, 180

Outdoor unit weight: (kg) 100, 120, 195, 220, 250

Indoor unit dimension: (LWH mm) 550×320×1250, 605×360×1300, 710×390×1440, 760×410×1580, 860×410×1680

Outdoor unit dimension: (LWH mm) 900×480×770, 1030×530×845, 1300×600×950, 1400×650×1150, 1800×680×1150
