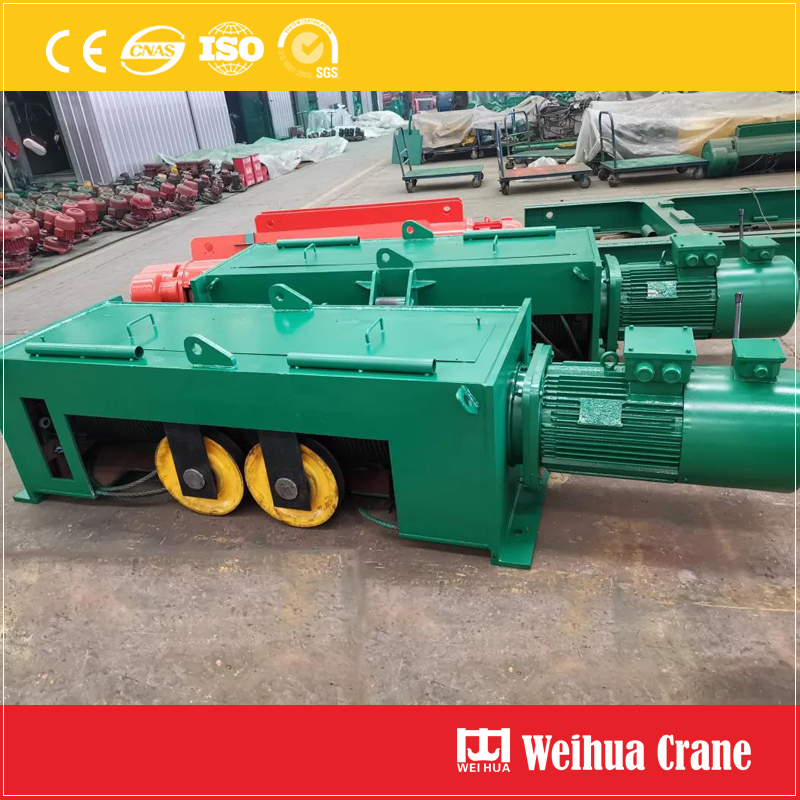

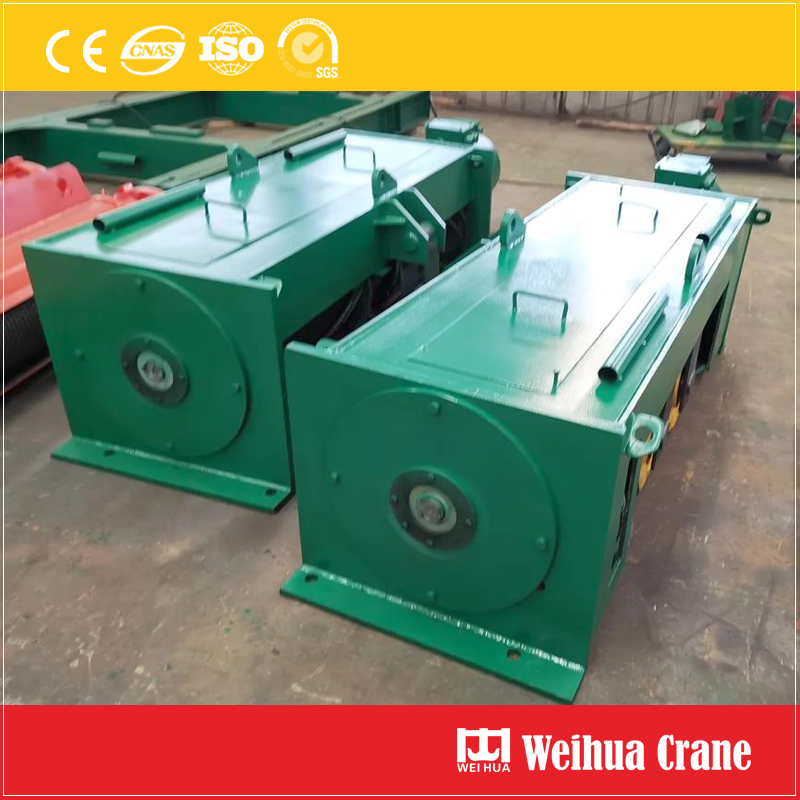

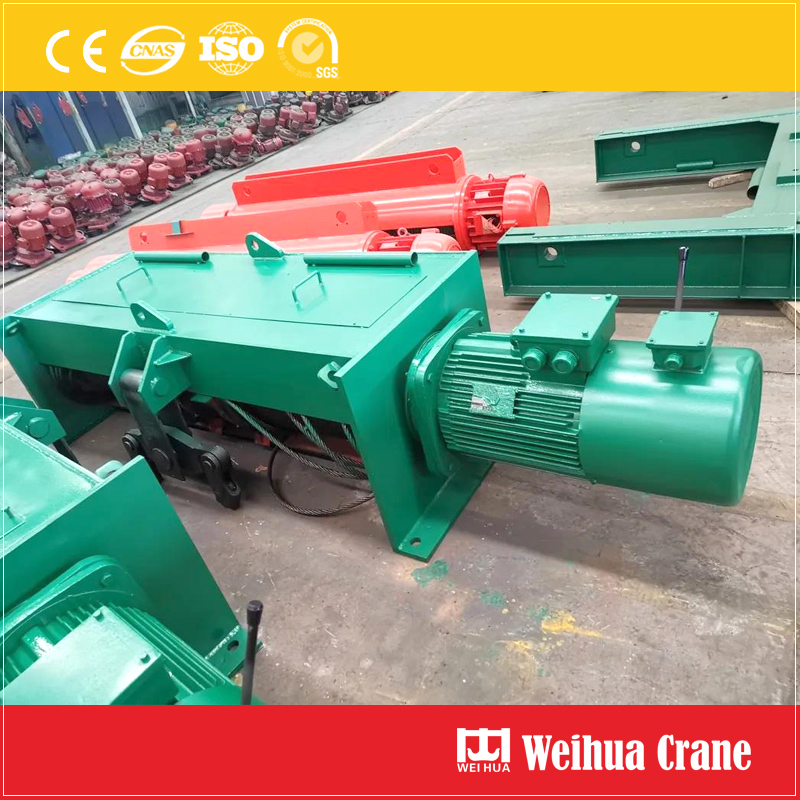

Product Name: Insulation Wire Rope Electric Hoist
Capacity: 1t ~ 32t
Lift Speed: 3 ~ 8m/min
Travel Speed: 20m/min
Work Duty: M4
Application: For smelting workshop of electrolytic aluminum, magnesium, lead, zinc, copper and other non-ferrous metals. The materials for insulation are with good insulation performance, high strength and good wear resistance.
Insulation electric hoist is a special wire rope electric hoist used in the smelting workshop of electrolytic aluminum, magnesium, lead, zinc, copper and other non-ferrous metals. Insulation system is installed in trolley transmission and lifting mechanism such as hook block to make sure the resistance value of each insulation point is not less than 1.0MΩ at room temperature. The materials for insulation are with good insulation performance, high strength and good wear resistance. The insulation hoist consists of lifting mechanism, traveling mechanism, insulation system, electric control system, etc. The product quality conforms to ISO standards.
Insulation electric hoist is a developed version of commonly seen wire rope electric hoist. In addition to its excellent insulation performance, it also remains the features of wire rope electric hoists:
1. Simple operation and cost-effective;
2. Various specifications and models with various lifting and running speeds;
3. Versatile parts and convenient maintenance;
4. Simple structure and small limit size.
Application:
This insulated hoist can be used for electrolysis and smelting industries of non-ferrous metals.
.jpg)
|
Capacity t |
1 |
2 |
3 |
5 |
10 |
16 |
20 |
32 |
|
Lift Height m |
6~45 |
9~30 |
9~24 |
8~20 |
||||
|
Lift Speed m/min |
8 |
7 |
3.5 |
3.5 |
3 |
|||
|
Travel Speed m/min |
20 |
|||||||
|
Work Duty |
M4 |
|||||||
|
Note: Specification can be customized |
||||||||
