Product Overview

Core Features

• 1. Superior Insulation Performance: Key components including the hook group, trolley frame, and contact parts are made of high-strength insulating materials (such as glass fiber reinforced plastic and epoxy resin) with an insulation grade of up to class F. The insulation resistance meets IEC 61111 standards, ensuring safe operation under voltages up to 35kV. Regular insulation testing can be conducted without disassembling the crane, simplifying maintenance.
• 2. Robust Structural Design: The main beam adopts a box-type welded structure with optimized stress distribution, ensuring high rigidity and stability. The crane is equipped with a anti-sway system that reduces load swing by 80% during lifting and traversing, improving positioning accuracy and operational safety.
• 3. Comprehensive Safety System: Integrated with multiple safety protections, including overcurrent protection, overload protection, limit switches (for lifting height and trolley travel), and emergency stop buttons. The control system is designed with electrical interlocking to prevent misoperation, while the insulation monitoring device provides real-time alerts if insulation performance degrades.

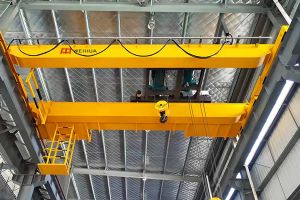

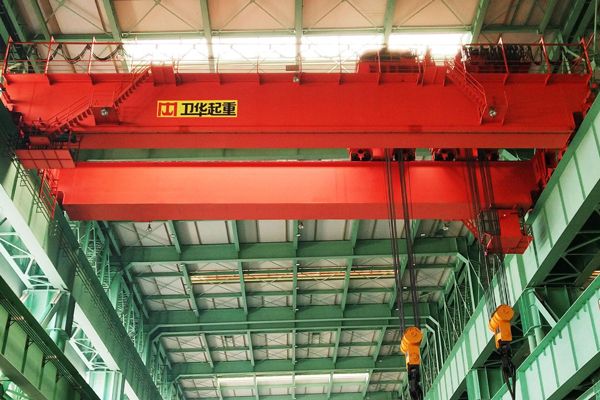

• 4. Customizable Configurations: Available in single-girder and double-girder models, with rated lifting capacities ranging from 1t to 50t and spans from 6m to 30m. Customers can choose between pendant control, remote control, or cabin control according to operational needs. Additional options include anti-explosion modifications, temperature monitoring, and IoT-based remote diagnostic systems.
