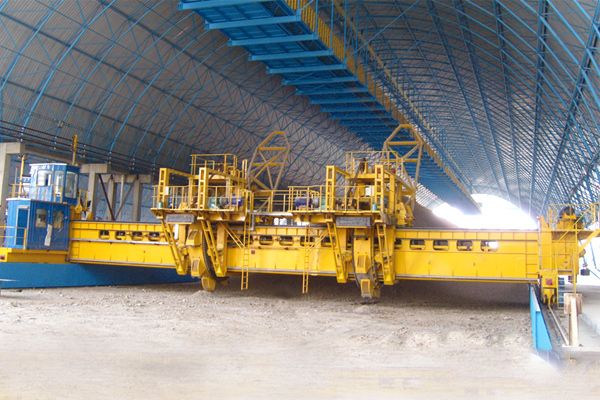

Product Name: Bridge-type Bucket-wheel Reclaimer
Capacity: 300t/h, 2500t/h
Particle Size: 0-300mm
The bridge-type bucket-wheel reclaimer is suitable for the stock yards in the iron & steel and industries because it can satisfy the mixing reclaiming operation requirements of coal, ore concentrate, ore fines and other bulk materials.
The bridge-type bucket-wheel reclaimer is suitable for the stock yards in the iron & steel and industries because it can satisfy the mixing reclaiming operation requirements of coal, ore concentrate, ore fines and other bulk materials. The bridge-type blending reclaimer includes bridge-type bucket-wheel reclaimer, bridge-type scrapper reclaimer and bridge-type roller reclaimer.
Features:
1. It can save investments with low energy consumption, low operation costs and high production efficiency.
2. It has rational structure and favorable stability.
3. The bridge-type mixing reclaimer has good mixing effect, large reclaiming capacity, high production efficiency and strong materials adaptability.
4. It has simple operation, safety and reliability, therefore, it is easy to realize the automation.
.jpg)
Links: Belt Conveyor, Ship Unloader, Stacker Relcaimer
| Equipment Model | Unit |
QHL 650. 32 |
QHL 1000.35 |
QHL 1800.37 |
QHL 2500.45 |
QHG 150. 22.6 |
QHG 900. 46 |
QHG 1200.42 |
QLG 1500.40 |
QLG 300.10 |
|
| Name |
Bridge-type bucket-wheel reclaimer |
Bridge-type scrapper reclaimer |
Side cantilever rotary stacker |
||||||||
| Production Capacity | t/h | 650 | 1000 | 1800 | 2500 | 1000 | 1800 | 2200 | 1500 | 300 | |
| Material characteristics | Applicable materials | Coal, coke, limestone, bauxite, iron ore, pellet ore, clay and other bulk materials | |||||||||
| Density | t/m³ | 0.5~2.5 | |||||||||
| Particle Size | mm | 0~300 | |||||||||
| Traveling speed | Work | m/min | 0~25 infinite speed variation | 0.004~0.04 | 0.05 | 0.027 | |||||
| Dispatching vehicle | m/min | 11.55 | 12 | ||||||||
| Rail gauge | m | 32 | 35 | 37 | 45 | 22.6 | 46 | 42 | 40 | 10 | |
| Maximum wheel load | KN | 250/300 | |||||||||
| Recommended steel track | P50/Q80 | ||||||||||
| Power supply mode | Cable drum/safety sliding contact line | ||||||||||
| Contact mode | Cable drum/safety sliding contact line/wireless | ||||||||||
| Control mode | PLC program control, manual and single action | ||||||||||
