Home / Products > Mining Machinery / Gate-Type Bucket-Wheel Stacker Reclaimer

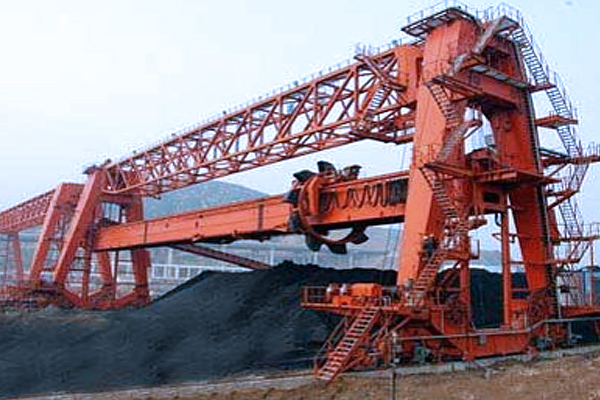

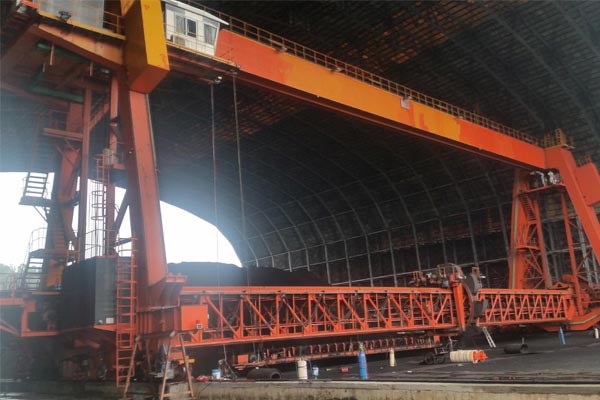

Product Name: Gate-Type Bucket-Wheel Stacker Reclaimer
Stack Capacity: 450-1,500t/h
Reclaim Capacity: 200-1,500t/h
Materials: Coal, coke, limestone, bauxite, iron ore, pellet ore, clay and other bulk materials.
The gate-type bucket-wheel stacker reclaimer is applicable to the large-scale thermal power plants, industrial and mining enterprises and the bulk materials storage yards in the port.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
Read More >As a kind of large-scale handling equipment which is used for continuously stacking the bulk materials, the gate-type bucket-wheel stacker reclaimer is applicable to the large-scale thermal power plants, industrial and mining enterprises and the bulk materials storage yards in the port.
Our company's gate-type bucket-wheel stacker reclaimer has the rail span range, reclaiming capacity range and stacking capacity range of 20-60m, 150-2500t/h and 300-3000t/h respectively.
Links: Belt Conveyor, Ship Unloader, Stacker Relcaimer
| Equipment model | Unit |
MDQ600/ 100050 |
MDQ1000/ 100040 |
MDQ800/ 150060 |
MDQ1500/ 250045 |
MDQ1800/ 200050 |
MDQ2500/ 250060 |
|
| Production capacity | Stack | t/h | 450 | 600 | 800 | 1500 | 1800 | 1500 |
| Reclaim | t/h | 200 | 300 | 1200 | 1500 | 3200 | 1500 | |
| Stacking height | On the rail | m | 8~12 | |||||
| Under rail | m | 0.5~2.5 | ||||||
| Material characteristics | Applicable materials | Coal, coke, limestone, bauxite, iron ore, pellet ore, clay and other bulk materials. | ||||||
| Density | t/m³ | 0.5~2.5 | ||||||
| Granularity | mm | 0~300 | ||||||
| Bucket wheel diameter | m | 5~`8 | ||||||
| Conveyer | Bandwidth | mm | 650~1800 | |||||
| Belt speed | m/s | 1.25~3.15 | ||||||
| Traveling speed | m/min | 5~30 Frequency control | ||||||
| Rail gauge | m | 50 | 40 | 60 | 45 | 50 | 60 | |
| Maximum wheel load | KN | 250/300 | ||||||
| Recommended steel track | P50/Q80 | |||||||
| Power supply mode | Cable drum/safety sliding contact line | |||||||
| Contact mode | Cable drum/safety sliding contact line/wireless | |||||||
| Control mode | PLC program control, manual and single action | |||||||
