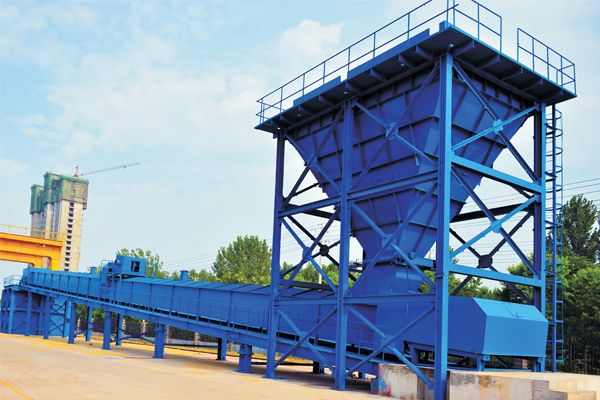

Product Name: Air Cushion Belt Conveyor
Mateiral Bulk Density: 500-2,500kg/m3
Band Width: 500-1,400mm
As a kind of new-type heavy-tank-type belt conveyor which can realize the large transport capacity, the air cushion belt conveyor can apply air cushion to replace the supporting roller bearing and change the rolling friction of supporting roller belt conveyor into fluid friction.
As a kind of new-type heavy-tank-type belt conveyor which can realize the large transport capacity, the air cushion belt conveyor can apply air cushion to replace the supporting roller bearing and change the rolling friction of supporting roller belt conveyor into fluid friction, as a result, it has reduced the tractive forces of driving device and the operation resistance of belt conveyor. Meanwhile, when there are the same transport capacity and conveying process, the power consumption is saved for 15-30% than the supporting roller belt conveyor.
Structure Principle:
1. Sweeper 2. Transmission roller 3.Trough roller 4. Draught fan 5. Materials groove 6. Redirection roller 7. screw take-up device 8. Hood 9. Rotary controller 10. Headstock 11. Tape 12. Observation hole door 13. Enclosed fitting 14. Gas tank joint 15. Lower parallel roller 16. Pull switch 17. Tension protection 18. Non-loaded cleanser 19. Tail
Basic Structure Type:
1. Full air cushion opening type
2. Full air cushion sealing type
3. Blending opening type
4. Blending sealing type
Performance:
1. It has increased 5% loading sectional area, as a result, the transport capacity is increased for 15% and the upward transport energy on the inclined slope is saved for 5%-12%.
2. It has small operation resistance and high stability, what's more, which can prolong the service life of conveyer belt for 3-4 times, and save 80% repairing expenses.
3. It is unnecessary to install the sealed conveyor corridor for the full air cushion conveyor, as a result, which can save 35% investment expenses in the infrastructure.
.jpg)
Links: Bridge Bucket-wheel Reclaimer | Scraper-type Circular Stockyard Reclaimer | Gate-Type Bucket-Wheel Stacker Reclaimer
|
Bulk density of material (kg/m3) |
Bandwidth (mm) | ||||||
| 500 | 650 | 800 | 1000 | 1200 | 1400 | ||
| 500 | 39 | 72 | 113 | 183 | 270 | 374 | |
| 800 | 63 | 115 | 181 | 293 | 432 | 599 | |
| 1000 | 79 | 143 | 226 | 367 | 540 | 748 | |
| 1200 | 95 | 172 | 272 | 440 | 648 | 898 | |
| 1600 | 127 | 220 | 362 | 586 | 465 | 1197 | |
| 2000 | 158 | 287 | 453 | 733 | 1081 | 1496 | |
| 2500 | 198 | 359 | 566 | 916 | 1351 | 1870 | |
Notes: Therein, the maximum transport capacity Q (its unit: t/h) as specified in the table is calculated when the belt width B and stacking density p of materials are available, and the belt speed V, the inclination factor k, the run stacking angle of materials 0 and the plate trough angle λ are 1.0m/s, 1.0, 25 and 30°respectively.
