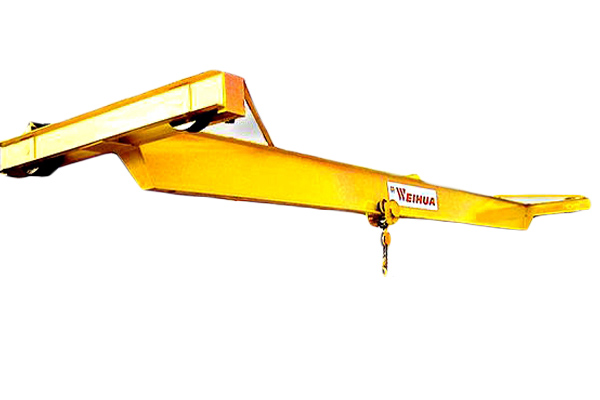

Product Name: Manual Single Girder Overhead Crane
Lifting Capacity: 1-10t
Lifting Height: 3-10m
Work Duty: A1-A3
This manual type single girder overhead crane is a small-sized light weight crane for the assembly and maintenance in workshops without power supply or power off situations.
This manual type single girder overhead crane is a small-sized light weight crane for the assembly and maintenance in workshops without power supply or power off situations. Its working environment temperature should not be lower than ﹣20℃.
This manual single girder overhead crane is constituted by main girder, end carriage girders, drive sprocket, gears, manual monorail trolley and hoist.
Features of Manual Single Girder Overhead Crane:
1. Compact structures, light weight;
2. Advanced performance, lifting smoothly and accurately;
3. Safety and reliable operation;
4. Less noise, easy operate;
5. Convenient maintain, interchangeable components；
6. The electric single girder overhead crane is also available.
.jpg)
| Technical Specifications | ||||||||
| Lifting Capacity | t | 1 | 2 | 3 | 5 | 10 | ||
| Lifting Height | m | 3~10 | ||||||
| Work Duty | A1~A3 | |||||||
| Traveling Speed | Trolley | m/min | 5.2 | 5.2 | 5.2 | 4.3 | 4.3 | |
| Crane | 5.3 | 5.9 | 4.7 | 4.7 | 4.2 | |||
| Wideth of Rail | mm | 37~51 | ||||||
