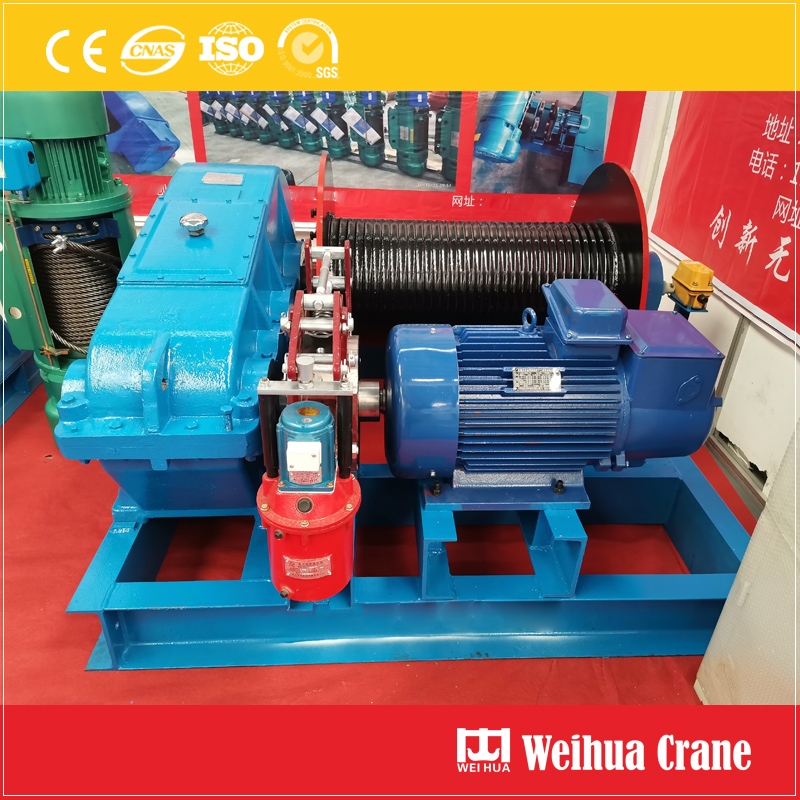

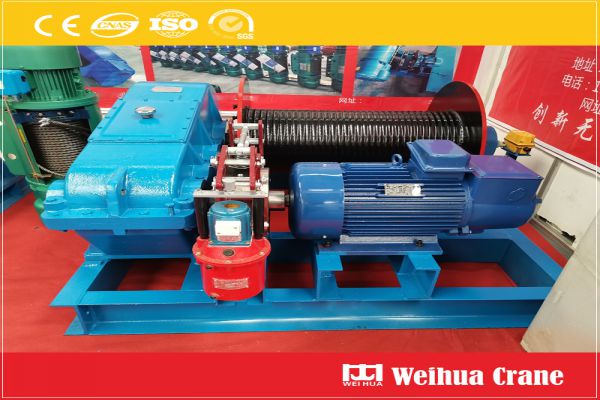

Electric Winch

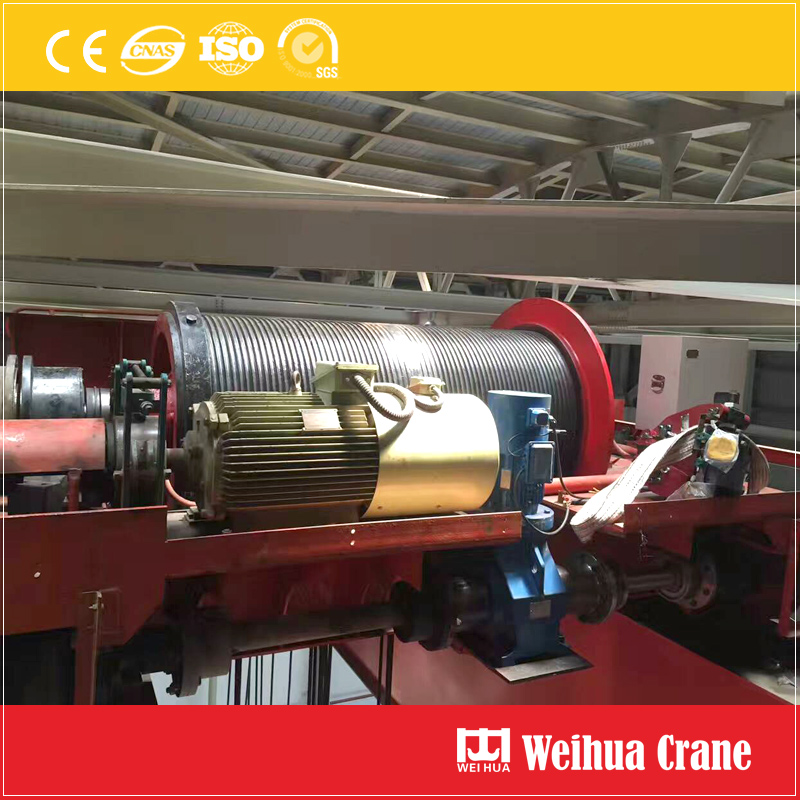

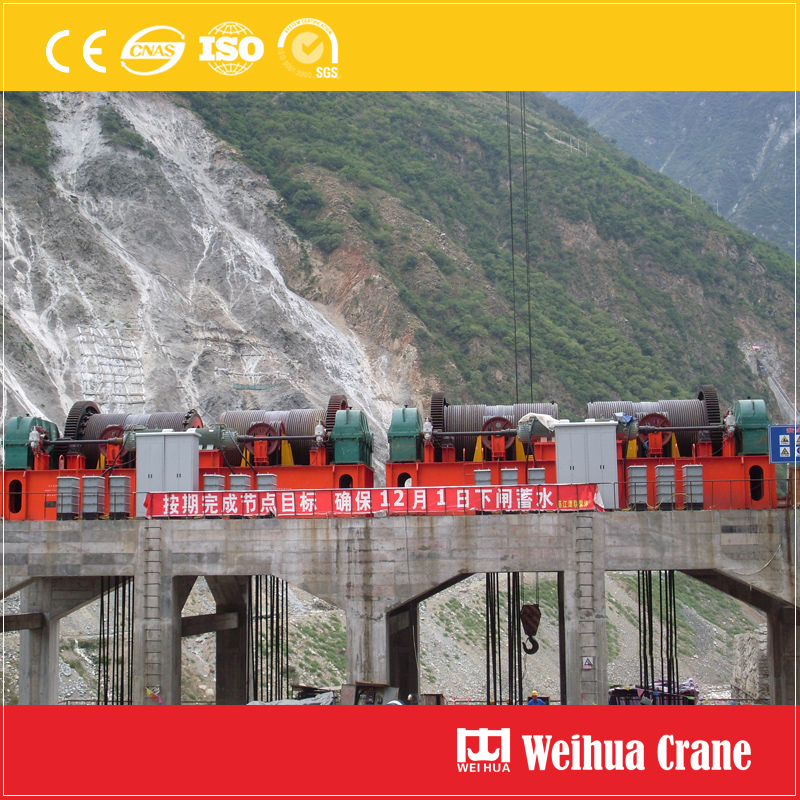

This electric winch can be widely used in buildings, hydropower plants, bridges, metallurgy, mining, etc. And it can be fitted on overhead crane, gantry crane, also can be used alone for all kinds of projects.

The electric winch adopts a mechatronics inner cone brake device, as long as the motor works, the brake will automatically separate; and the motor stops, the brake will be closed immediately for winch braking. And the brake device of this machine is set inside the machine to avoid slipping caused by the intrusion of dirt, mud, sand, oil, etc., enables the brake to achieve sensitive and reliable performance.

Electric control device: This winch uses electric control device, which does not need workers to sit in the machine booth. The electric control device can be installed in a place with a view and safe place, especially when the site is narrow or close-range operation, all difficulties can be solved.

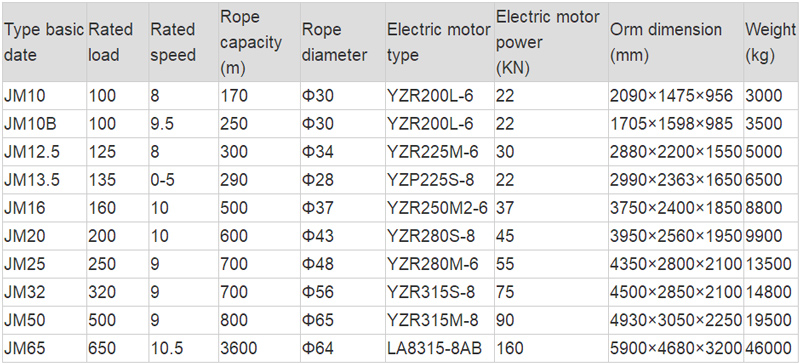

1. Capacity: 1-80t

2. Lifting height: customized

3. Lifting speed: single/VVVF, 12m/min

4. Voltage: 220v/380v/400v/415v

5. Control: Push button or cam control or remote control

6. Electric: Siemens or Schneider electrical system

7. Safety: Current overload protection, voltage lower protection
