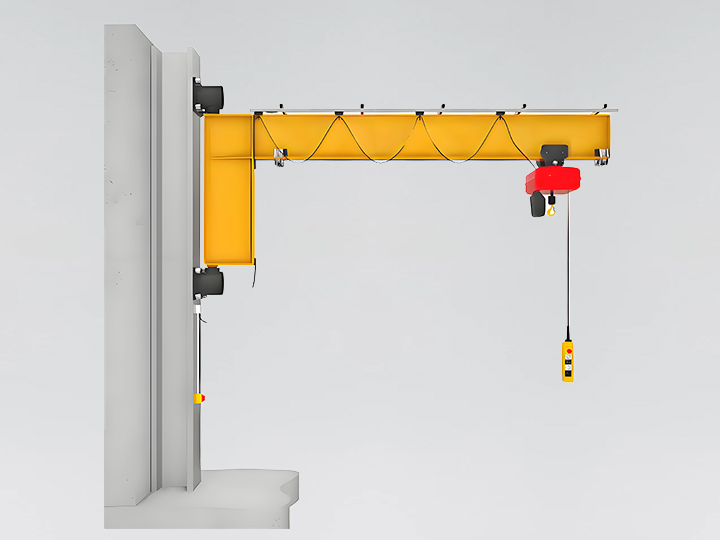

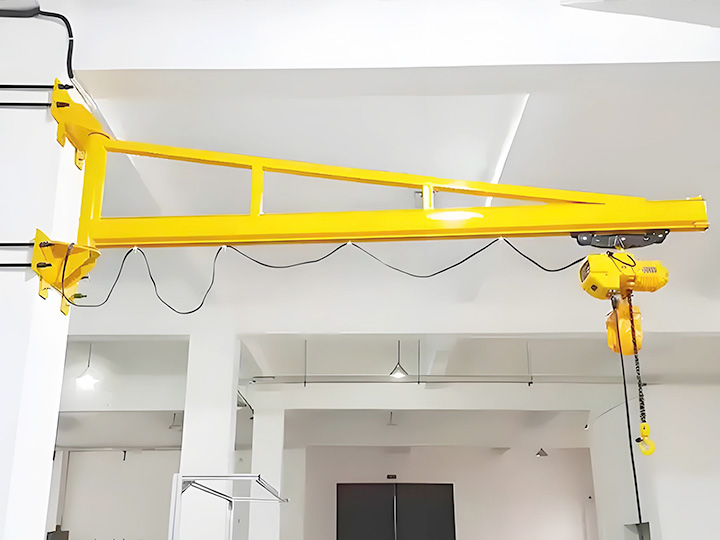

BX type wall mounted jib crane belongs to the category of light and small lifting equipment. It could meet the material handling needs in various industrial and commercial environments. Compared with ordinary bridge and gantry cranes, it has the advantages of favorable price and simple structure.This type ofjib craneis simply fixed and installed on the wall, providing great convenience for environments with limited working space. The bracket, rotary arm and lifting structure together constitute the main structure of the equipment.The bracket is the support structure for the entire lifting equipment. The rotary and electric hoist are the main working parts of the whole equipment. Its arm can rotate within 180 degrees. The electric hoist can move left and right on the swing arm and lift the material.
Advantages
Space saving:Suitable for use in limited space, without occupying the ground area, also easy to control.
Wide range of use: Capable of lifting material in factories, workshops, construction sites, docks and other occasions.
High efficiency: Significantly improving work efficiency with its advantages in short-distance and frequent operations.
High safety: Wall mounted jib crane has multiple safety protection devices to increase the safety of lifting.
Application
Mechanical industry: It can transport and debug equipment to improve production efficiency.
Automobile industry: Lifting automobile parts, complete automobile production and assembly to ensure smooth production.
Construction industry: Handling building raw material and accelerate construction efficiency.
Food industry: Lifting raw materials, semi-finished products and finished products to ensure the smooth progress of the processing process.
| Lifting capacity(t) | 0.25 | 0.5 | 1 | |||||||
| Lifting height(m) | 5 | 5.5 | 6 | 5 | 5.5 | 6 | 5 | 5.5 | 6 | |
| Valid radius(m) | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 4 | 4.5 | 5 | |
| Working system | A3 | |||||||||
| Lifting speed(m/min) | Slow speed | 0.8 | ||||||||
| Normal speed | 8 | |||||||||
| Circulate speed(m/min) | 20 | |||||||||
| Slewing angle(Degree) | 180 | |||||||||
| Centre height(m) | 1.2 | 1.6 | 2.56 | |||||||
