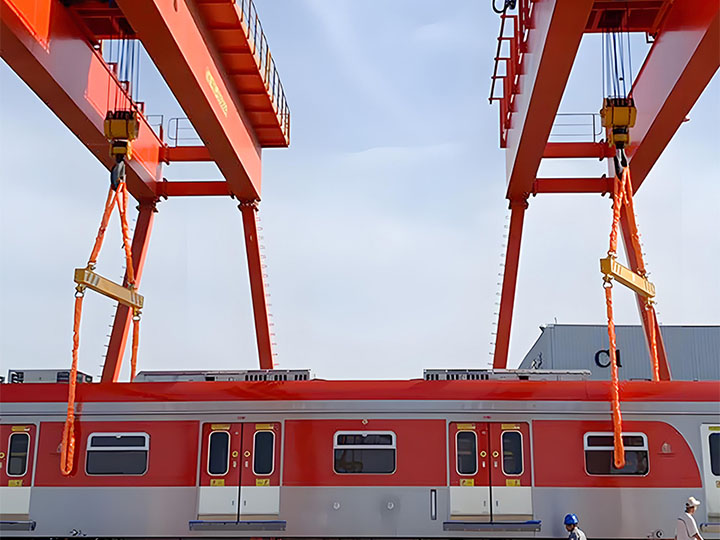

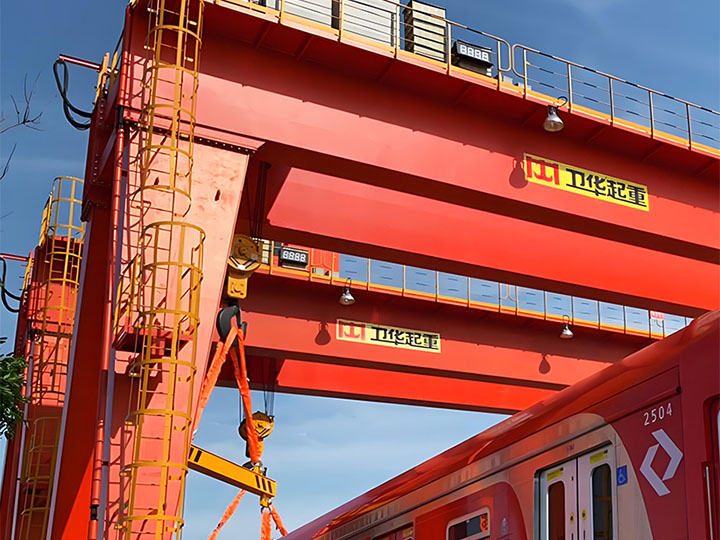

The European double beam gantry crane adopts the advanced European FEM standard design and manufacturing. It consists of two main beams, an end beam system, a lifting trolley, a control system, and a cabin. Compared with ordinary MG type, its main features are the use of European standard, hardened surface of the reducer, three in one drive, and PLC+frequency conversion control technology. This design comprehensively improves the product performance. At the same time, the weight of the crane is reduced by more than 15%, and the wheel pressure is reduced by 10-20%.
It has the characteristics of light weight, small wheel pressure, and is the preferred machine for various material handling places. Small wheel pressure and boundary size can reduce the early engineering investment cost of the factory, and also save some expenses for lighting, heating, and other facilities.
General Application
European double beam gantry cranes are widely applicable in material handling occasions. Usually, it is in steel metallurgy, hydro-power, aerospace, ships, automobiles, coal, petrochemicals, etc. And European gantry crane can not only achieve bi-directional movement, but also easily raise or lower heavy objects. It requires special technical methods to ensure operational safety in explosive, flammable, or corrosive environments.
Main Features
It has the characteristics of light weight and small wheel pressure. This European gantry crane is also an ideal choice for various material handling places. Small wheel pressure and boundary size can reduce the early engineering investment cost of the factory, and also save some expenses for lighting, heating, and other facilities.
The product has reliable performance and durability, which can reduce additional costs during later use. On the one hand, the use of high standard components reduces maintenance and repair workload. On the other hand, it reduces the energy consumption of the entire machine and also saves its operating costs.
| Product Name | European double beam gantry crane |
| Lifting Equipment | Electric trolley |
| Capacity (T): | ≥5 ton |
| Span (M): | 10.5---31.5 meter |
| Lifting Height(M): | 6---12 meter |
| Work Duty: | M5 |
| Hoist Speed(m/min): | 2---20 |
| Crane Speed(m/min) | 3---30 |
| Working Temperature (℃） | -20--40 |
| Power Source | Three-Phase A.C. 380V 50HZ |
| Operational Method | Ground Control+Remote Control |
