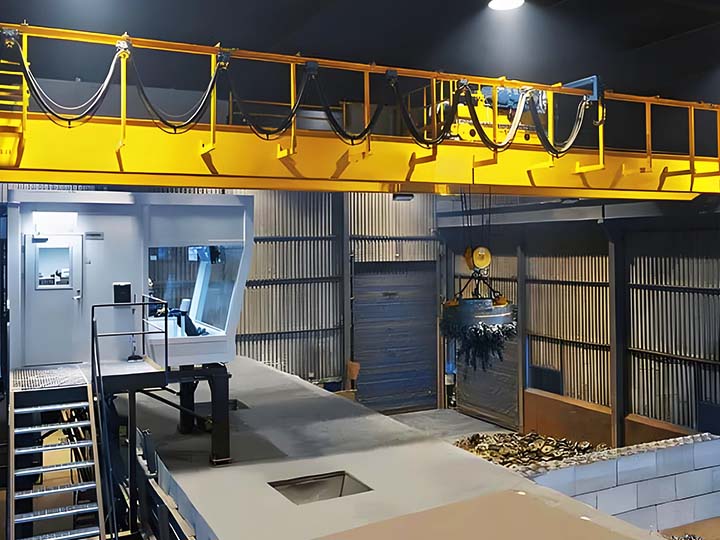

QC Electromagnetic Bridge Crane is a special design bridge crane that utilizes electromagnetic principle for material lifting. It has an irreplaceable role in lifting magnetic materials in industrial field. And electromagnetic bridge crane greatly improves the efficiency and convenience of handling magnetic materials.
QC bridge crane has bridge frame, electric trolley, electrical electromagnetic suction cups and other vital parts. The bridge is the main part of the whole crane, providing stable support for other parts and bearing loads in the lifting process. The trolley running mechanism makes bridge crane move flexibly on the rail to expand the operation range. Its electric trolley moves horizontally on the bridge and works in concert with the trolley running. Therefore, it provides precise positioning of the electromagnetic suction cup in space. As the core component, the special design of the electromagnetic suction cup can adsorb the magnetic materials to realize safe and efficient lifting.
Application
QC electromagnetic overhead travelling crane is widely used in iron and steel mills, machinery factories, metallurgical factories, harbor terminals and other places where magnetic materials are needed to be lifted. In steel mills, it can handle magnetic steel materials such as steel billets and plates.
For machinery factories, it is suitable for handling magnetic parts. In metallurgical factories, it is capable of lifting all kinds of magnetic ores and other raw materials. And at harbor terminals, this bridge crane easily handle the loading and unloading of magnetic goods.
FeaturesHigh efficiency and energy saving: Electromagnetic overhead cranes can adjust electromagnetic force as needed to reduce unnecessary energy consumption.Safe and reliable: There is usually a backup power supply or mechanical locking device to ensure that the goods will not fall suddenly.Easy to maintain: Compared with traditional hooks, electromagnetic suction cups has simpler mechanical structures, so maintenance is easier.Improve work efficiency: It can quickly absorb and release goods, shortening the operation cycle.
| Model | QC | |||||
| Lifting capacity(t) | 16/3.2 | 20/5 | 32/5 | 50/10 | ||
| Span(m) | 10.5-31.5 | |||||
| Lifting height | 16/18 | 12/14 | 16/18 | 12/16 | ||
| Working class | A6 | |||||
| Speed (m/min) |
lifting | Electromagnetic | 13 | 9.7 | 9.5 | 7.8 |
| Aux.hook | 14.5 | 12.7 | 12.7 | 13.2 | ||
| Trolley traveling | 44.6 | 44.6 | 42.4 | 38.5 | ||
| Crane traveling | 112.5/101.4 | 112.5/101.4 | 101.8/86.8 | 86.8/87.3 | ||
| Power supply | 380v, 50HZ, 3phase or customized design | |||||
