Self-Loading Unloading Garbage Truck
Self-Loading Unloading Garbage Truck
Self-Loading Unloading Garbage Truck
Self-Loading Unloading Garbage Truck
Self-Loading Unloading Garbage Truck
Self-Loading Unloading Garbage Truck
Self-Loading Unloading Garbage Truck
Self-Loading Unloading Garbage Truck

Self-Loading Unloading Garbage Truck

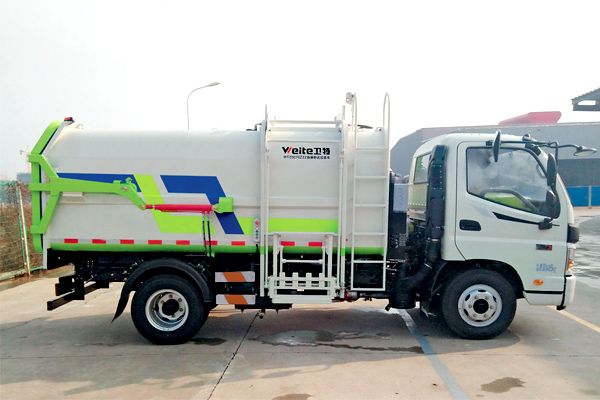

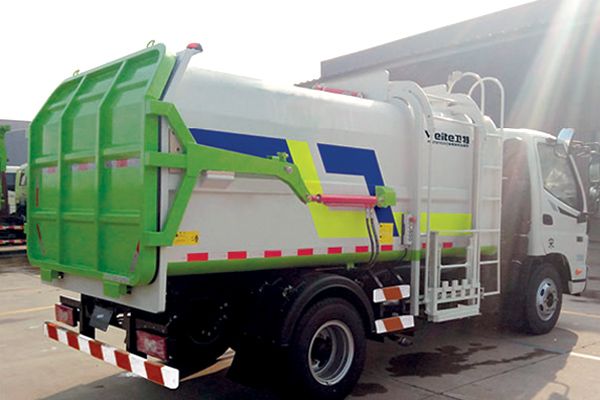

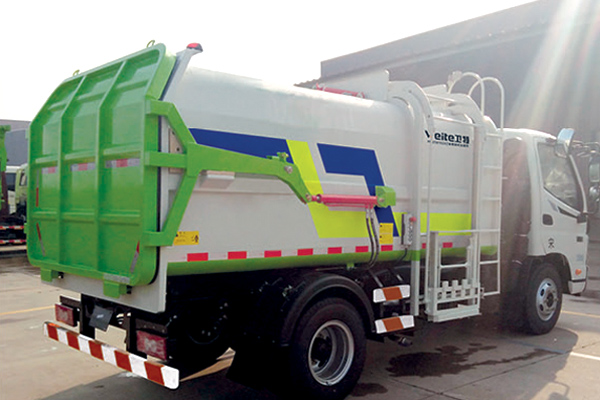

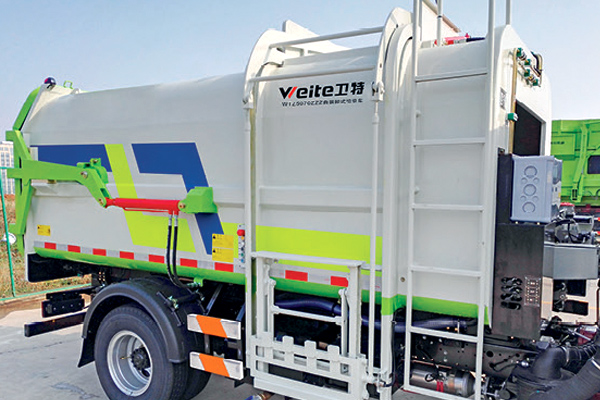

Product Name: Self-Loading Unloading Garbage Truck

Weight: 7,300kg

Garbage Tank Volume: 7m3

Truck Speed: 95km/h, 90km/h



Self-loading unloading garbage truck carry out waste collection and transportation are in the confined space. There is a push plate inside the truck which can compress garbage to increase the load.

Description
Specification
Features
Application
Description

1. The vehicle assembly components are made of high quality steel with good strength. Waste collection and transportation are in the confined space without secondary pollution and in line with urban environmental protection requirements.

2. Automatic loading and unloading device with stable and reliable performance.

3. The operation of the truck is joint controlled by hydraulic and electrical control with simple and safe operation.

4. The rear door adopts hydraulic opening and closing with mechanical locking. There is a push plate inside the truck which can compress garbage to increase the load.



self-loading-garbage-truck



self-loading-unloading-garbage-truck



self-loading-unloading-garbage-truck

Specification
Model WTZ5070ZZZ WTZ5071ZZZ
Dimension (mm) 5480X1980X2640 5660X2050X2660
Weight (kg) 7300 7300
Chassis Model QL1070A5HAY DFA1070SJ12N5
Chassis engine model 4KH1-TCG51 YC4102-N5D
Chassis engine power (kW) 88 84
Chassis engine emission standard China Ⅴ China Ⅴ
Wheelbase (mm) 3360 3308
Tank Volume(m³) 7 7
Hydraulic pressure(MPa) 16 16
Sealing Rubber parts Rubber parts
Control Manual Manual
Max. Truck Speed (km/h) 95 90
Features
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects and industry giants in aerospace, automobile manufacturing, steel metallurgy, ports and terminals, rail transportation, and energy and power. The company has accumulated a wealth of successful cases and obtained special equipment manufacturing Class A license, ISO series management system certification, EU CE certification, etc., qualifying it for global market access.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation and commissioning, personnel training, maintenance, parts supply, and technical upgrades. With hundreds of service outlets worldwide, it offers rapid response times and provides localized, timely technical support and repair services.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment, resulting in a high level of manufacturing technology. Key components are primarily sourced from well-known domestic and international brands or high-end domestic brands, ensuring high reliability. Quality design is integrated throughout the entire process of design, procurement, production, and testing, guaranteeing a high product qualification rate.
High Safety
Weihua Lifting strictly adheres to and often exceeds advanced international standards such as Chinese national standards (GB) and European Union standards (FEM) in its design. Key structures (such as main beams, end beams, wire ropes, and hooks) adopt high-standard safety factors with sufficient margins to eliminate safety risks caused by design defects at the source. The core components of the lifting mechanism (such as brakes, motors, and reducers) mostly use international first-tier brands (such as SEW, Siemens, ABB, etc.) or high-end domestic brands to ensure precise operation and reliable braking.
Didn't find your industry solution? Consult our technical experts immediately.
Application
Weihua cranes are widely used in machinery, metallurgy, power generation, railways, ports, petroleum, chemical, and other industries, serving key national projects and large enterprises.
