Product Name: Scissor Garbage Transfer Station

Diemension: 5920X4200X1930mm,

5920X4200X1930mm

Max. Compression Force: 45t, 60t


Scissor Garbage Transfer Station is with horizontal single-cylinder compression with big compression force and high compression ratio.

Description
Specification
Features
Application
Description

1. Compression: horizontal single-cylinder compression with big compression force and high compression ratio.

2. Operating system: PLC programming control system, automatic operation and protection functions, effectively reduce labor intensity, high operating efficiency, environmental adaptability.

3. Lifting scissors is made of high quality steel with big bearing high strength.

4. Compact equipment, small footprint, low housing height.

5. Full hydraulic operation, environmental noise is small.

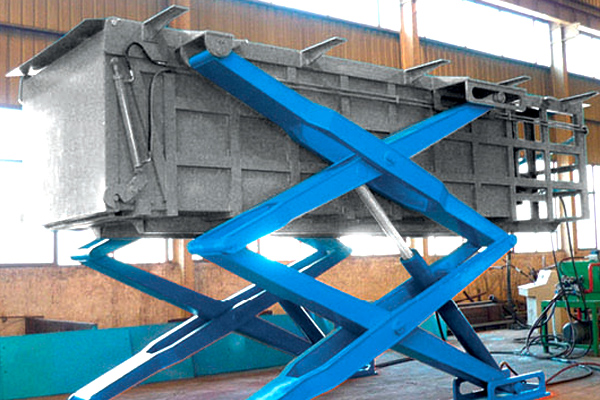

Scissor-Garbage-Compression-Station

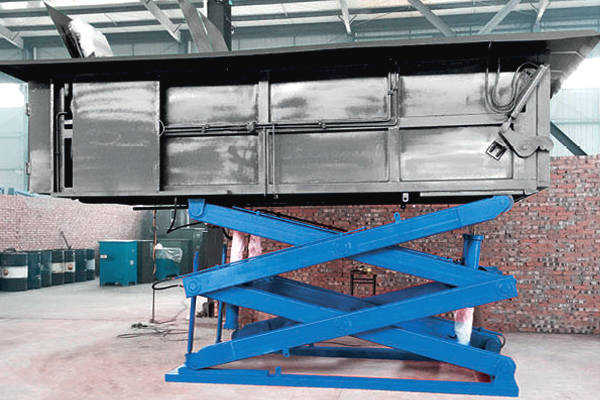

Scissor-Garbage-Station

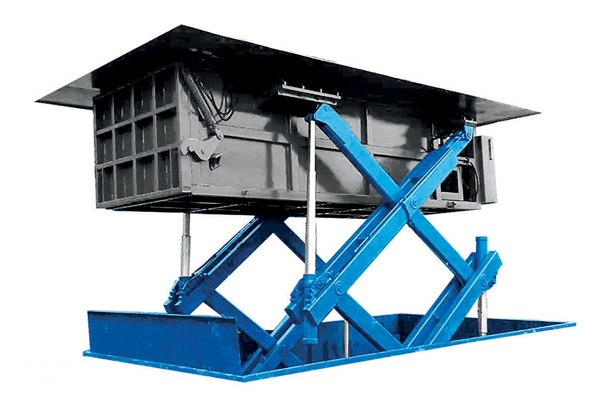

Scissor-Garbage-Transfer-Station

Specification
Model WTZ60TJDSZ8 WTZ45TJDSZ7
Dimension (mm) 5920X4200X1930 5920X4200X1930
Compression Chamber Size (mm) 3300X1850X1300 3300X1850X1200
Mouth Size (mm) 1850X800 1850X800
Max. Compression Force(T) 60 45
Compression Single Cylinder Single Cylinder
Hydraulic System Pressure(MPa) 18 18
Motor Power(kw) 15 11
Single Garbage Block Weight (kg) 6000~7000 5000~6000
Features
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects and industry giants in aerospace, automobile manufacturing, steel metallurgy, ports and terminals, rail transportation, and energy and power. The company has accumulated a wealth of successful cases and obtained special equipment manufacturing Class A license, ISO series management system certification, EU CE certification, etc., qualifying it for global market access.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation and commissioning, personnel training, maintenance, parts supply, and technical upgrades. With hundreds of service outlets worldwide, it offers rapid response times and provides localized, timely technical support and repair services.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment, resulting in a high level of manufacturing technology. Key components are primarily sourced from well-known domestic and international brands or high-end domestic brands, ensuring high reliability. Quality design is integrated throughout the entire process of design, procurement, production, and testing, guaranteeing a high product qualification rate.
High Safety
Weihua Lifting strictly adheres to and often exceeds advanced international standards such as Chinese national standards (GB) and European Union standards (FEM) in its design. Key structures (such as main beams, end beams, wire ropes, and hooks) adopt high-standard safety factors with sufficient margins to eliminate safety risks caused by design defects at the source. The core components of the lifting mechanism (such as brakes, motors, and reducers) mostly use international first-tier brands (such as SEW, Siemens, ABB, etc.) or high-end domestic brands to ensure precise operation and reliable braking.
Didn't find your industry solution? Consult our technical experts immediately.
Application
Weihua cranes are widely used in machinery, metallurgy, power generation, railways, ports, petroleum, chemical, and other industries, serving key national projects and large enterprises.
