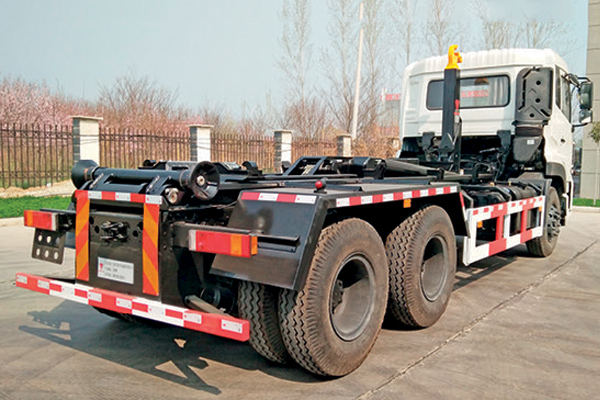

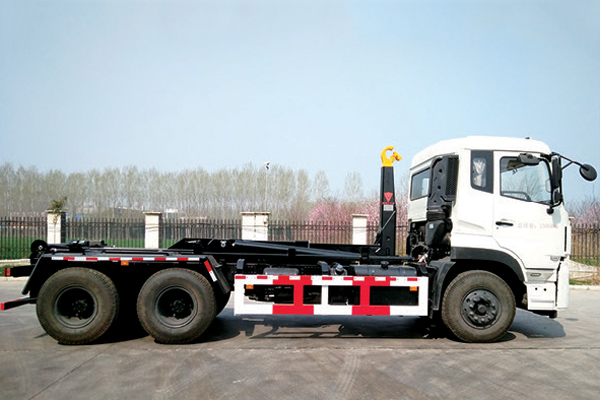

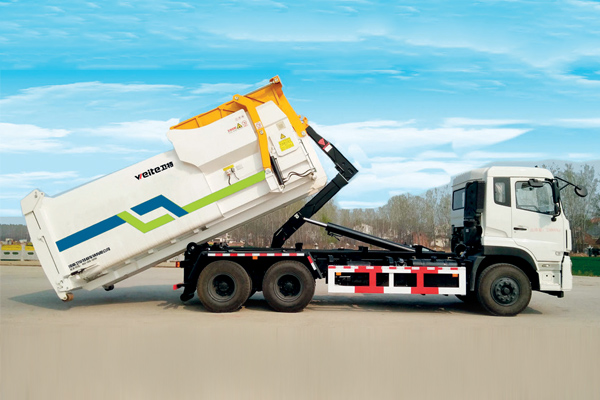

Product Name: Movable Garbage Truck
Weight: 15800kg, 25000kg
Tank Volume: 12m3, 17m3
The maximum load capacity of the removable garbage truck is 14, 20 tons, work with 12, 17 cubic mobile garbage compression station and 14, 20 cubic split garbage Compression station.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
Read More >Features of Removable Garbage Truck:
1. Pull arm device is from well-known brands such as Waller, Hilbo, etc. The maximum load capacity is 14, 20 tons, work with 12, 17 cubic mobile garbage compression station and 14, 20 cubic split garbage Compression station.
2. Manual and automatic operations.
3. Adopt rear wheel support stabilizer to prevent truck front upturned.
4. Italian multi-way inlet valve.
5. Hydraulic system working pressure is 28 / 30MPa.
| Model | WTZ5160ZXX | WTZ5250ZXX |
| Dimension (mm) | 7700X2500X2850 | 8300X2500X3070 |
| Weight (kg) | 15800 | 25000 |
| Chassis Model | DFL1160 BX1V | DFL1250A13 |
| Chassis Engine Model | ISDe210-50 | ISDe245-50 |
| Chassis Engine Power (kW) | 155 | 180 |
| Chassis Engine Emission Standard | China Ⅴ | China Ⅴ |
| Wheelbase (mm) | 4500 | 4350+1350 |
| Hook height (mm) | 1570 | 1570 |
| Hydraulic Pressure（MPa） | 28 | 30 |
| Pull Arm Max. Lifting Capacity（kg） | 14000 | 20000 |
| Tank Volume（m³） | 12 | 18 |
| Max. Truck Speed (km/h) | 90 | 90 |
.jpg)
Truss Gantry Crane
Nuclear Power Plant Crane
Water Truck

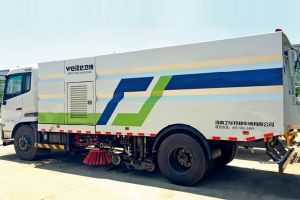

Street Sweeping and Washing Truck
