Product: Light Rail Crane System
Capacity: 0.5t, 1t, 2t
Lift Height: 2, 3, 4, 5, 6m
Traveling Speed: 2~20m/min
Application: This crane is for tasks of short-distance, frequent use, and intensive lifting operations. It is widely used in machinery manufacturing, automobiles, light industry and other industries.

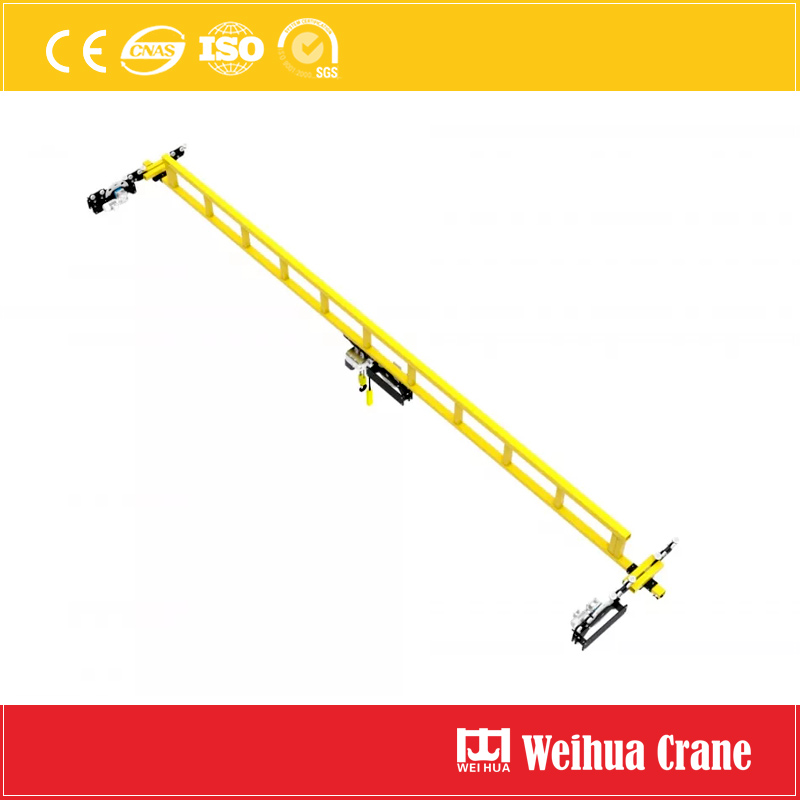

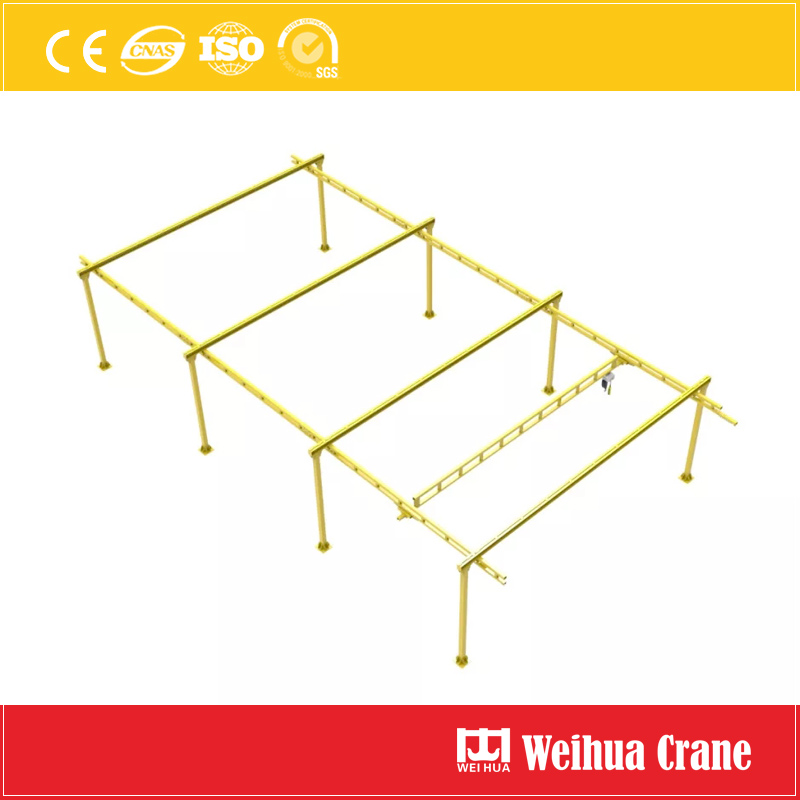

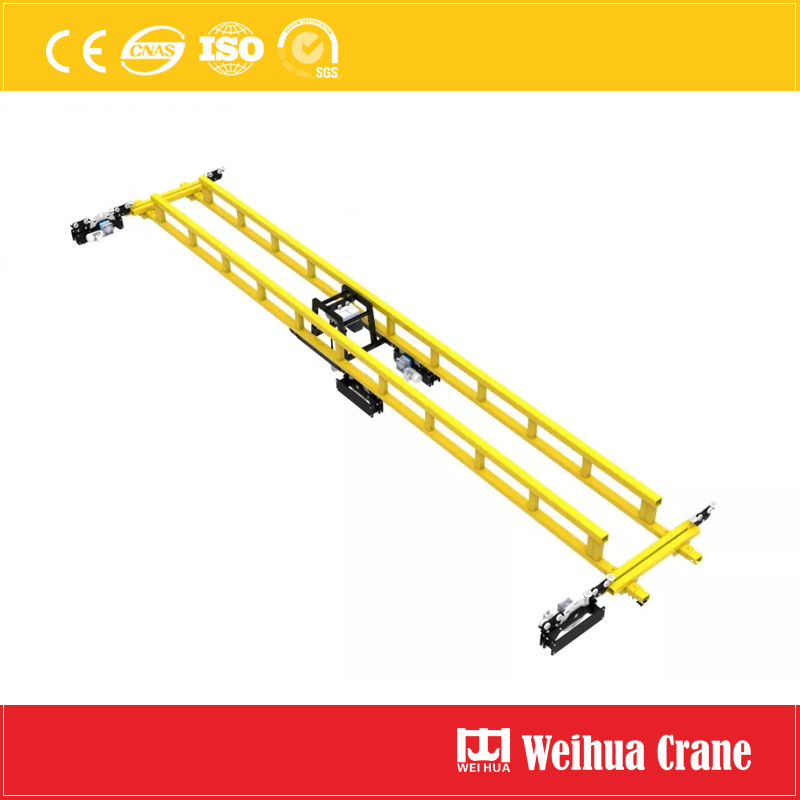

Light rail crane system is a light lifting equipment for modern production requirement. It is widely used in machinery manufacturing, automobiles, light industry and other industries. The lifting hoist is an electric chain hoist. According to the structure, this crane system can be monorail light crane, double rail light crane, and self-supporting light crane.
This light rail crane system is suitable for tasks of short-distance, frequent use, and intensive lifting operations. It can be employed to lift workpieces in the production line of workshops, handle heavy goods for assembly line, machine tools and warehouses.
Features:
1. Good reliability, high stability and beautiful appearance.
2. Compact structure, light weight and large working space.
3. Strong adaptability, convenient installation, energy saving and high efficiency.
4. Large rigidity, simple structure, high degree of modularization, high positioning accuracy and large span range.
5. The traveling mechanism can be driven manually, moving safely and positioning accurately.
|
Capacity t |
0.5 |
1 |
2 |
|
Lift Speed m/min |
2/8 |
2.5/10 |
1.25/5 |
|
Lift Height m |
2, 3, 4, 5, 6 |
||
|
Traveling Speed m/min |
Manual or electric 2~20 |
||
|
Max. Length of Each Section |
10m |
||
