Product Name: Diesel Forklift and Electric Forklift
Model: CPC30K, CPC35K, CPCD50, etc.
Capacity: See data sheet
Features of Weihua Forklifts: Large lifting capacity, beautifual looking, well-know electrical, long service life, light and stable.

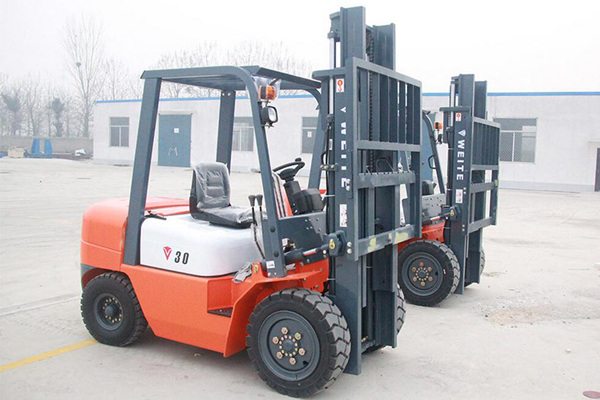

Forklift CPC30K
1. Stable Performance:
Electrical system is China well-known brands with stable and reliable performance, long service life. Operation can be various with a variety of special operating devices, improving vehicle utilization.
2. Precise Design:
New type engines with energy saving and environmental protection. Ergonomic operating device can effectively reduce labor intensity. Center of gravity design is reasonable with good stability, good overload capacity.
3. High Quality:
Smooth and reliable operation, high efficiency. Durable Integral welding frame. Beautiful appearance, spacious driving space with good view.
|
Item |
1.1 |
Manufacturer |
Weihua |
|
|
1.2 |
Model |
CPC30K |
||
|
1.3 |
Power |
Diesel |
||
|
1.4 |
Rated load |
kg |
3,000 |
|
|
Sizes |
2.1 |
Load center distance |
mm |
500 |
|
2.2 |
Lifting height |
mm |
3,000 |
|
|
2.3 |
Free lifting height |
mm |
100 |
|
|
2.4 |
Frame inclination |
° |
6/12 |
|
|
2.5 |
Length (without fork) |
mm |
2727 |
|
|
2.6 |
Width |
mm |
1230 |
|
|
2.7 |
Frame height |
mm |
2125 |
|
|
2.8 |
Driver room height |
mm |
2,135 |
|
|
2.9 |
Fork size |
mm |
1,070*125*45 |
|
|
2.10 |
Front suspension |
mm |
477 |
|
|
2.11 |
Back suspension |
mm |
550 |
|
|
2.12 |
Front wheel distance |
mm |
1,000 |
|
|
2.13 |
Back wheel distance |
mm |
970 |
|
|
2.14 |
Wheelbase |
mm |
1,700 |
|
|
2.15 |
Min. turning radius |
mm |
2,400 |
|
|
Performance |
3.1 |
Min. space to ground (Chassis) |
mm |
152 |
|
3.2 |
Max. speed (full load / no load) |
Km/h |
19/20 |
|
|
3.3 |
Max. lifting speed (full load / no load) |
mm/s |
430/450 |
|
|
3.4 |
Max. Traction |
KN |
14/9.8 |
|
|
3.5 |
Max. climbing |
% |
20 |
|
|
3.6 |
Machine weight |
kg |
4250 |
|
|
Wheels |
4.1 |
Front wheel |
28*9-14PR |
|
|
4.2 |
Rear wheel |
6.50-10-10 |
||
|
Control |
5.1 |
Engine model |
4C2-50V32 |
|
|
5.2 |
Engine rated power/rotation |
Kw/r.p.m |
36.8/2,500 |
|
|
5.3 |
Max. torch |
Nw/r.p.m |
157/1,800 |
|
|
5.4 |
Full load Min. fuel consumption |
g/kw.h |
＜230 |
|
|
5.5 |
Cylinder total displacement |
L |
2.67 |
|
|
5.6 |
Gear (front/back) |
2/2 |
||
|
5.7 |
Fuel tank capacity |
L |
60 |
|
|
5.8 |
Hydraulic fuel tank capacity |
L |
60 |
|

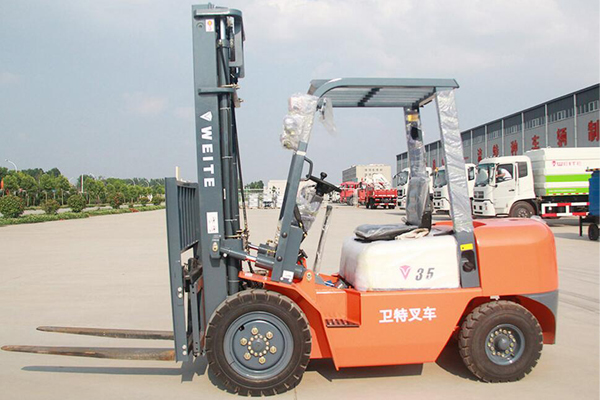

Forklift CPC35K
|
Item |
1.1 |
Manufacturer |
Weihua |
|
|
1.2 |
Model |
CPC35K |
||
|
1.3 |
Power |
Diesel |
||
|
1.4 |
Rated load |
kg |
3,500 |
|
|
Sizes |
2.1 |
Load center distance |
mm |
500 |
|
2.2 |
Lifting height |
mm |
3,000 |
|
|
2.3 |
Free lifting height |
mm |
100 |
|
|
2.4 |
Frame inclination |
° |
6/12 |
|
|
2.5 |
Length (without fork) |
mm |
2,727 |
|
|
2.6 |
Width |
mm |
1,230 |
|
|
2.7 |
Frame height |
mm |
2,125 |
|
|
2.8 |
Driver room height |
mm |
2,135 |
|
|
2.9 |
Fork size |
mm |
1,070*125*45 |
|
|
2.10 |
Front suspension |
mm |
477 |
|
|
2.11 |
Back suspension |
mm |
580 |
|
|
2.12 |
Front wheel distance |
mm |
1,000 |
|
|
2.13 |
Back wheel distance |
mm |
970 |
|
|
2.14 |
Wheelbase |
mm |
1,700 |
|
|
2.15 |
Min. turning radius |
mm |
2,430 |
|
|
Performance |
3.1 |
Min. space to ground (Chassis) |
mm |
152 |
|
3.2 |
Max. speed (full load / no load) |
Km/h |
19/20 |
|
|
3.3 |
Max. lifting speed (full load / no load) |
mm/s |
400/415 |
|
|
3.4 |
Max. Traction |
KN |
14/9.8 |
|
|
3.5 |
Max. climbing |
% |
20 |
|
|
3.6 |
Machine weight |
kg |
4650 |
|
|
Wheels |
4.1 |
Front wheel |
28*9-14PR |
|
|
4.2 |
Rear wheel |
6.50-10-10 |
||
|
Control |
5.1 |
Engine model |
4C2-50V32 |
|
|
5.2 |
Engine rated power/rotation |
Kw/r.p.m |
36.8/2,500 |
|
|
5.3 |
Max. torch |
Nw/r.p.m |
157/1,800 |
|
|
5.4 |
Full load Min. fuel consumption |
g/kw.h |
245 |
|
|
5.5 |
Cylinder total displacement |
L |
2.67 |
|
|
5.6 |
Gear (front/back) |
2/2 |
||
|
5.7 |
Fuel tank capacity |
L |
60 |
|
|
5.8 |
Hydraulic fuel tank capacity |
L |
60 |
|

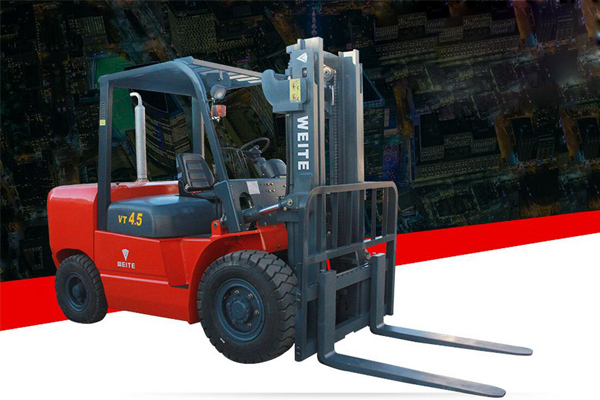

Forklift CPC45

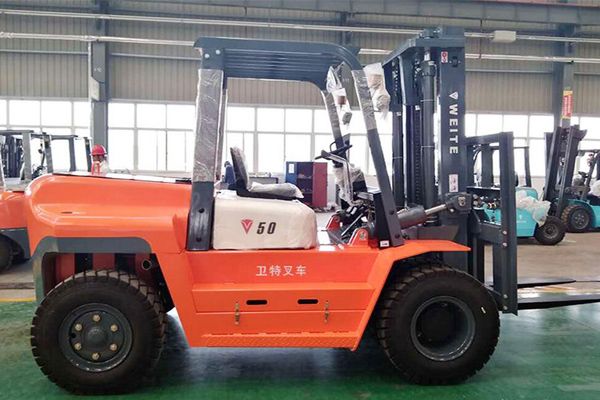

Forklift CPCD50
Stable Performance:
Optimized mast structure reduces the front suspension, with large lifting capacity. Optimized full set machine layout, and the whole center of gravity is at the rear, so that the vehicle longitudinal stability is better with stability coefficient increased by 20%.
Precise Design:
Enhanced YQXD100 gearbox to optimize the transmission ratio with big torque output range, improving traction also increase the forklift speed when light load.
High Quality:
Unique appearance design with smooth vehicle line, in line with the latest design trends. China well-known brand turbocharged engine with strong driving force, energy saving and environmental protection.
Technical Parameters:
1. Small diameter steering wheel, greatly improving the operational comfort, reducing the operator's fatigue strength.
2. Hydraulic shift, electronic control, light and flexible.
3. Engine intake pipe is with high independent channel, effectively prevent dust inhalation.
4. Large capacity tube belt radiator, optimize the cooling channel, improve oil temperature, water temperature, and improve vehicle cooling capacity.
5. The main force components adopt finite element analysis to ensure structural strength and rigidity, while enhancing the vehicle lift capacity of more than 15%.
6. Sports parts of the movement simulation to ensure smooth and reliable operation of the agencies.
7. Hydraulic system uses double pump system, the confluence before valve, steering stable shunt, the system moves independently and smoothly.
8. All hydraulic cylinders use internationally renowned seals with good impact resistance and long service life.
9. Brake with vacuum power, supple and reliable.
10. Split side roller structure, reasonable mast force and smooth operation.
11. Scalable drive shaft, running automatically remove the transmission angle changes generated by the additional angular acceleration, improve the transmission shaft life.
12. Unique frame structure design, the engine and the rear axle and rear tail frame connection, to avoid the lack of rigidity of the product frame, while reducing vehicle vibration.
13. Frame board with the overall structure, improve the rigidity while improving the process, and reduce welding deformation.
|
Item |
1.1 |
Manufacturer |
Weihua |
|
|
1.2 |
Model |
CPCD50 |
||
|
1.3 |
Power |
Diesel |
||
|
1.4 |
Rated load |
kg |
5,000 |
|
|
Sizes |
2.1 |
Load center distance |
mm |
600 |
|
2.2 |
Lifting height |
mm |
3,000 |
|
|
2.3 |
Free lifting height |
mm |
100 |
|
|
2.4 |
Frame inclination |
° |
6/12 |
|
|
2.5 |
Length (without fork) |
mm |
3,573 |
|
|
2.6 |
Width |
mm |
2,000 |
|
|
2.7 |
Frame height |
mm |
2,495 |
|
|
2.8 |
Driver room height |
mm |
2,428 |
|
|
2.9 |
Fork size |
mm |
1,220*150*60 |
|
|
2.10 |
Front suspension |
mm |
595 |
|
|
2.11 |
Front wheel distance |
mm |
1,470 |
|
|
2.12 |
Back wheel distance |
mm |
1,700 |
|
|
2.13 |
Wheelbase |
mm |
2,250 |
|
|
2.14 |
Min. turning radius |
mm |
3,250 |
|
|
Performance |
3.1 |
Min. space to ground (Chassis) |
mm |
227 |
|
3.2 |
Max. speed (full load / no load) |
Km/h |
27/28 |
|
|
3.3 |
Max. lifting speed (full load / no load) |
mm/s |
450/460 |
|
|
3.4 |
Max. Traction |
KN |
70 |
|
|
3.5 |
Max. climbing |
% |
20 |
|
|
3.6 |
Machine weight |
kg |
8,000 |
|
|
Wheels |
4.1 |
Front wheel |
8.25-15-14PR |
|
|
4.2 |
Rear wheel |
8.25-15-14PR |
||
|
Control |
5.1 |
Engine model |
CY6BG332 |
|
|
5.2 |
Engine rated power/rotation |
Kw/r.p.m |
85/2,200 |
|
|
5.3 |
Max. torch |
Nw/r.p.m |
450/1,400-1,600 |
|
|
5.4 |
Full load Min. fuel consumption |
g/kw.h |
225 |
|
|
5.5 |
Cylinder total displacement |
L |
5.785 |
|
|
5.6 |
Gear (front/back) |
2/2 |
||

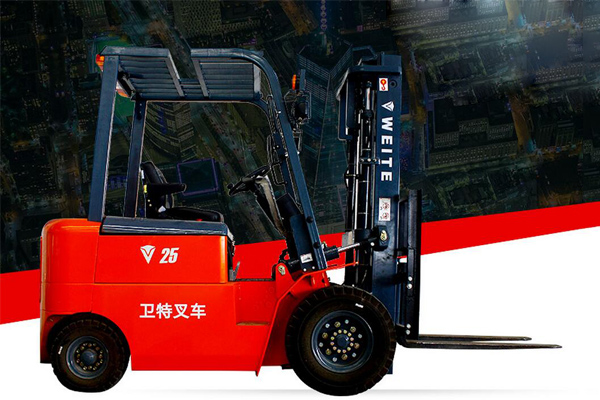

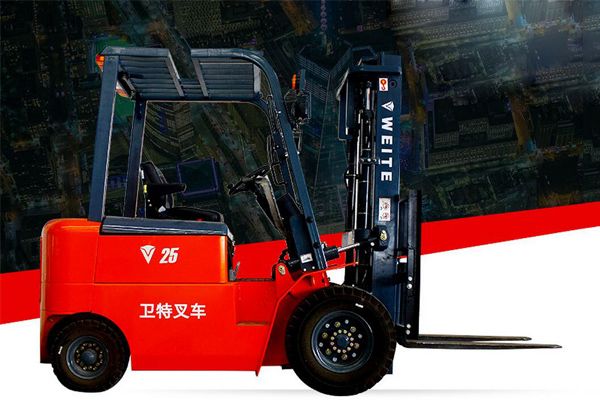

Electric Forklift 25
