Diameter: Φ120mm~Φ1500mm

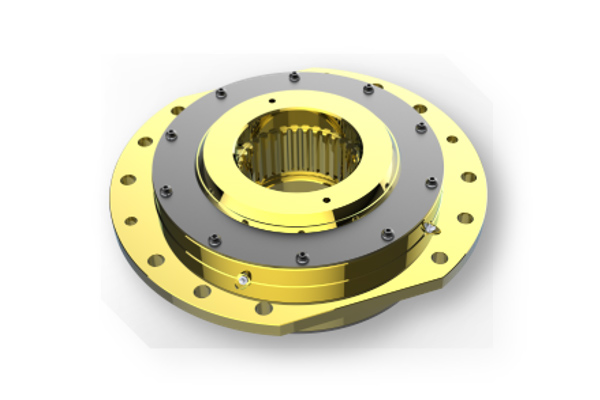

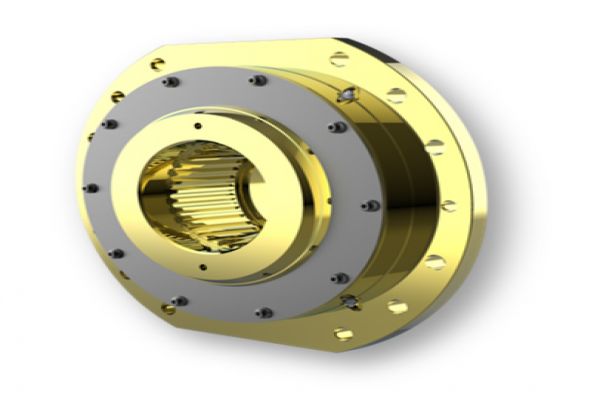

The gear coupling is used to connect mechanical parts to transmit torque. It consists of two parts, the driving shaft and the driven shaft. It can connect motors, reducers, wheel sets, etc. for the overhead crane, gantry crane, etc. In high-speed and heavy-duty power transmission, the couplings have the functions of buffering, damping and improving the dynamic performance of the shafting.





Structural Features:

1. High precision, large load and large transmission torque;

2. Safety, good wear resistance, long service life;

3. This gear coupling can withstand large radial loads and transmit large torques, with higher reliability and safety than traditional ones;

4. The wear and tear of each part is small, the structure is thick, and there is no worry of safety failure;

5. The special key wrapped between the spherical surfaces is flexible and has a large rotation range, which is convenient for installation and debugging;

6. Advanced heat treatment process, significantly improve the quality of the coupling;

7. Smooth transmission, strong impact resistance and vibration resistance, and high safety performance;

8. Using high-precision special tooling for gear teeth processing, the precision is precise.
