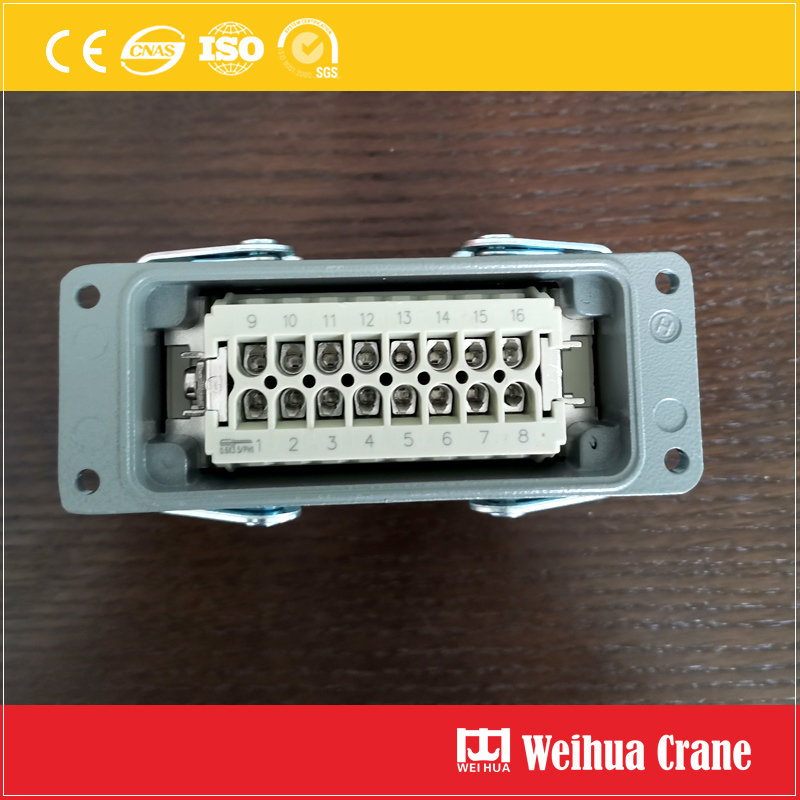

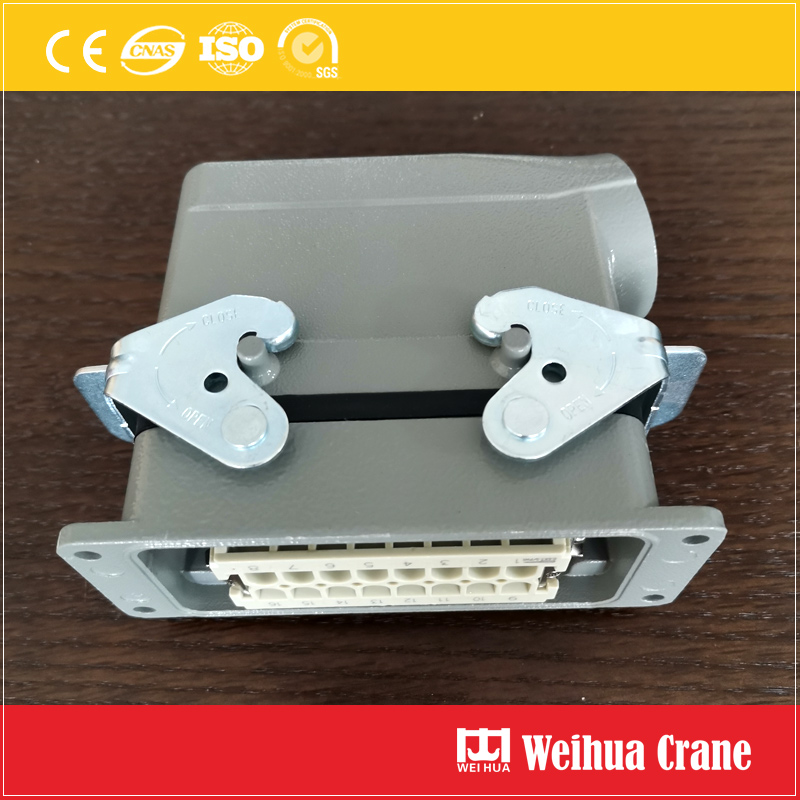

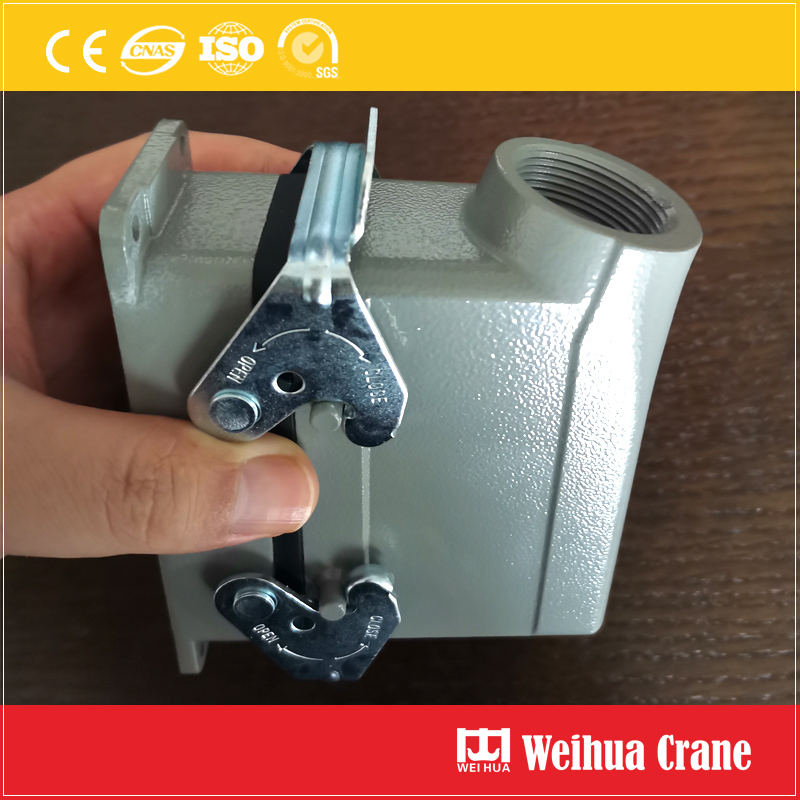

Product: Crane Aviation Plug, Connector
Model: HDC-TG21s-HE016-AG (top access port)
HDC-TS21s-HE016-AG (side access port)
Core: 4, 6, 10, 16, 24, 32, 48 Cores
Current: 16A
Voltage: 500V
Protection: IP65
Shell Material: Cast aluminum alloy
16 Core Plug Size: 115mm*80mm
16 Core Plug Port caliber: 13-18mm
Connector material: Silver-plated copper
Product: Crane Aviation Plug, Connector
Model: HDC-TG21s-HE016-AG (top access port)
HDC-TS21s-HE016-AG (side access port)
Core: 4, 6, 10, 16, 24, 32, 48 Cores
Current: 16A
Voltage: 500V
Protection: IP65
Shell Material: Cast aluminum alloy
16 Core Plug Size: 115mm*80mm
16 Core Plug Port caliber: 13-18mm
Connector material: Silver-plated copper

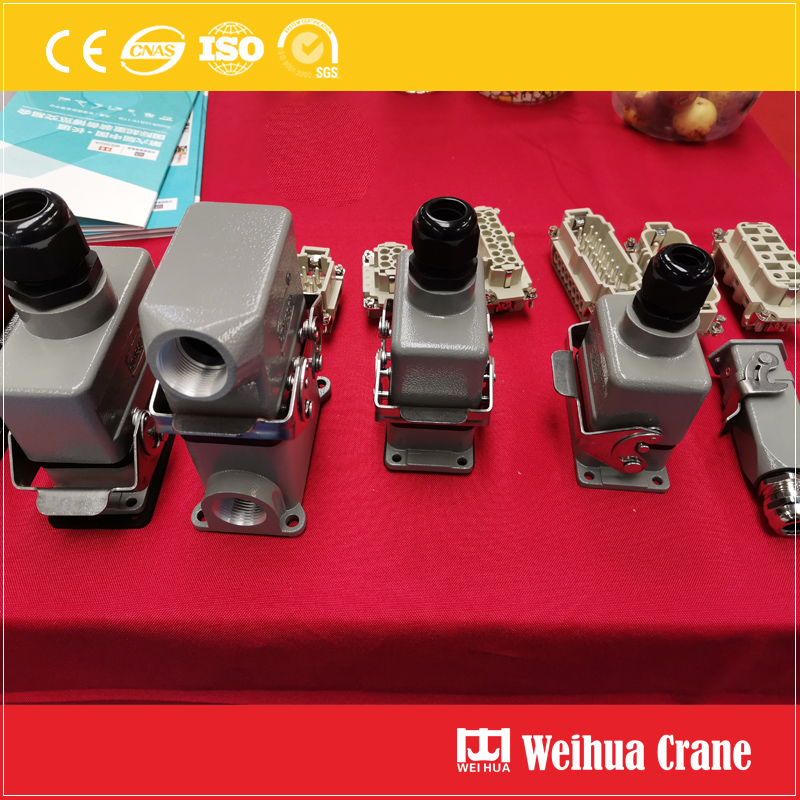

Aviation plug is a kind of connector which is electromechanical components that connect electrical circuits. The main function of the aviation plug is to connect the electrical sources that you want to turn off through the plug-in function, and then transmit the signal or current between them, and realize the exchange and sharing of resources through transmission. Crane control panel also adopt aviation plug to arrange cable and connect motor.
Features:
1. Easy to repair
If an electronic component fails, an aviation plug can quickly replace the failed component.
2. Improve the production process
The use of aviation plugs simplifies the assembly process of electronic products and also simplifies the mass production process.
3. Easy to upgrade
With the advancement of technology, new components can be replaced when aviation plugs are installed, and old components can be replaced with new and more complete components.
4. Improve design flexibility
The use of aviation plugs allows engineers to have greater flexibility when designing and integrating new products and when composing systems with components. Because the structure of aviation plugs is becoming more and more diversified, new structures and application fields continue to appear.
