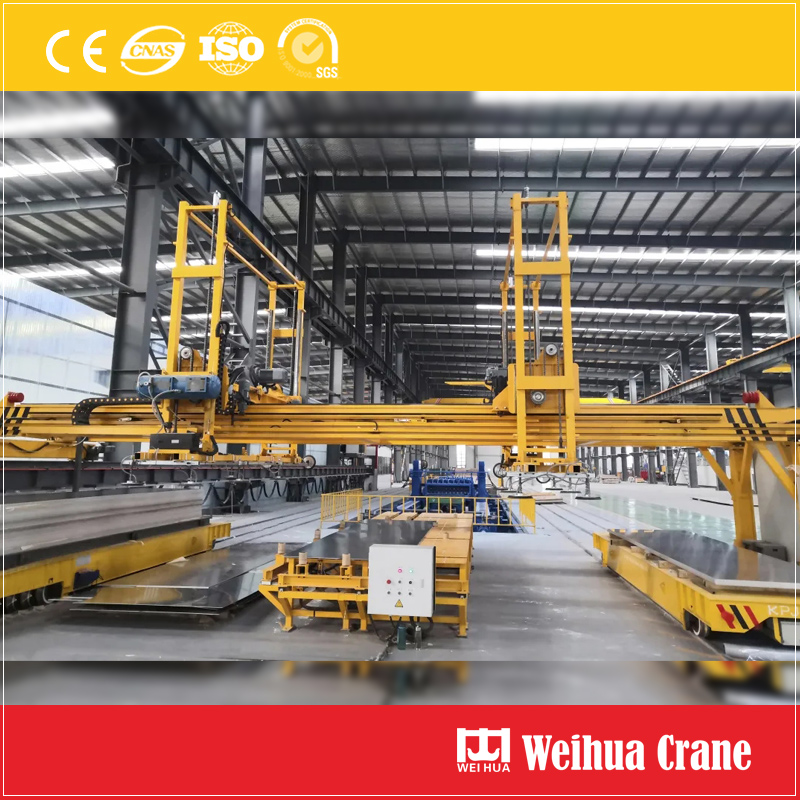

Automatic Sheet Handling Crane

Weihua made a Fully Automatic Sheet Handling Workstation crane for a new material company. This equipment has been praised by customers since its commissioning stage, and once it is put into use, it has become the highlight of the entire production line.

The handling crane is composed of a handling system, a centering system, and an automatic control system. It is suitable for automatic handling and palletizing of various sheets/plates/boards. This crane is widely used in steel, aluminum, concrete prefabrication, aircraft manufacturing, oil and gas pipelines, wind power blades, tunnel engineering and other fields.

Features:

1. No damage:

The crane is with sensing function and vacuum suction cups can protect the surface of the board.

2. Stable:

Rigid lifting and traveling mechanism are stable and reliable.

3. Precision:

Servo drive, linear guide and rack and pinion drive system with Repeat positioning accuracy 1mm and Repeated palletizing accuracy 3mm

4. Unattended:

PLC control Works online with sheet stretching machines, transfer carts, etc. to realize unattended operation of the production line.

5. Wide Application:

The workstation can be used for the handling and loading and unloading of various plates, sheets, boards, etc.

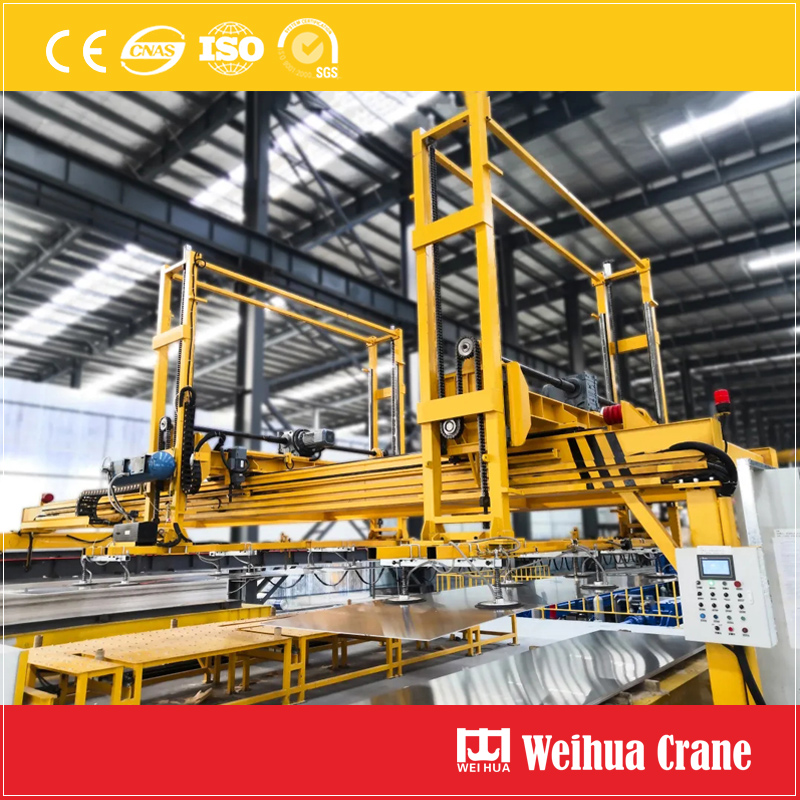

Features of Vacuum Adsorption Spreader:

Weihua vacuum adsorption spreader relies on a vacuum pump to extract the air inside the suction cup to generate vacuum.

Safe: Maintenance of suction force after power off)

1. High Efficiency: Quick adsorption and release

2. Low Power Consumption: System constant pressure opening function

3. Zero Pollution: The air medium is green and environmentally friendly

4. Less Noise: No impact on the surrounding environment
