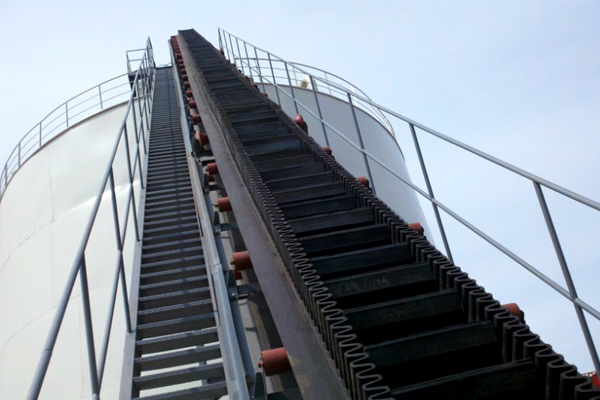

The undulating guard-band conveyor is widely applied to transporting the materials in the port, metallurgy, mine, electricity, coal, casting, building materials, grain, chemical fertilizer and other fields. As a kind of optimal alternate product for the chain hoister and bucket hoister, the above-mentioned undulating guard-band conveyor can make all kinds of bulk materials operate in 0-90° with the following advantages, such as, large inclination angle, wide application range, small occupation area, transshipment point absence, civil engineering investment reduction, low maintenance expenses and large transport capacity, besides, which can also reduce the overall design costs of the engineering by a large margin.

1. Baseband width: B300~B2000mm

2. Maximum hoisting height Single machine: 500m, however, many machines can be connected in series.

3. Inclination: 0~90°

4. Maximum transport capacity: 4000t/h

5. Belt speed 0.1~4.0m/s

Structure Principle:

1. Discharge hopper 2. Head cover 3. Transmission Roller 4. Flap cleaner 5. Guard band 6. Rack on the convex section 7. pressure roller 8. Retaining roller 9. intermediate stand 10. Support legs of middle frame 11. Upper roller 12. Rack on the concave section 13. Redirection roller 14. Lower supporting roller 15. Guard chute 16. Cleaner on the empty section 17. Tail roller 18. Tension device 19. Tail
