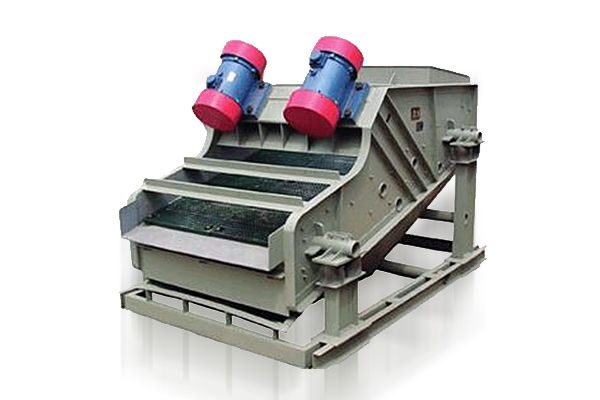

Product Name: DZS Linear Vibrating Screen
Capacity: 10-200t/h, 30-500t/h
Feeding Size: <250mm, <400mm
DZS Linear Vibrating Screen is widely applied to classifying the large-block materials, the medium and small particles substances in the mining, coal, electricity, metallurgy, building materials and fire-resistant.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
Read More >DZS linear vibrating screen is composed of excitation device, screen box, dust remover, blanking hopper, damping device and foundation. As a kind of new-type screening equipment, it is widely applied to classifying the large-block materials, the medium and small particles substances in the mining, coal, electricity, metallurgy, building materials, fire-resistant and other industries.
Structural Features:
1. It has small volume and large screening capacity.
2. Due to the light weight, it is convenient to make installation and process arrangement.
3. Due to the less energy consumption, it can save a lot of resources.
4. It only needs low price with very few spare parts.
5. It has simple structure and beautiful appearance.
6. The screen cloth is assembled by the small pieces, therefore, it is extremely simple to make replacement.
| Model specification | ZSG-1020 | ZSG-1030 | ZSG-1530 | ZSG-1540 | ZSG-1550 | ZSG-1850 |
| Screening capacity (t/h) | 10-200 | 15-250 | 20-350 | 25-400 | 30-500 | 30-500 |
| Feeding degree (mm) | <250 | <350 | <400 | <400 | <400 | <400 |
| Screening area (m2) | 2 | 3 | 4.5 | 6 | 7.5 | 7.5 |
| Screen mesh sizes (mm) | 3-50 | 3-150 | 3-200 | 3-200 | 3-200 | 3-200 |
|
Vibration frequency (r / min) |
960 | 960 | 960 | 960 | 960 | 960 |
| Double vibration amplitude (mm) | 8—12 | 8—12 | 8—12 | 6—10 | 6—10 | 6—10 |
| Motor power (KW) | 2.2x2 | 2.2x2 | 3.7x2 | 3.7x2 | 5.5x2 | 7.5x2 |
Links: Portal Crane | CNC Crane with Precise Positioning | Movable Ship Loader | Wire Rope Reel | Belt Conveyor
MQ Portal Crane
.jpg)
L Type Single Girder Gantry Crane
Boat and Yacht Handling Crane
.jpg)

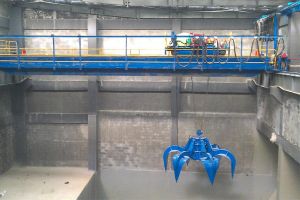

Double Girder Overhead Crane with Grab
Gantry Crane with Lift Height 190m for Vertical Shaft Construction

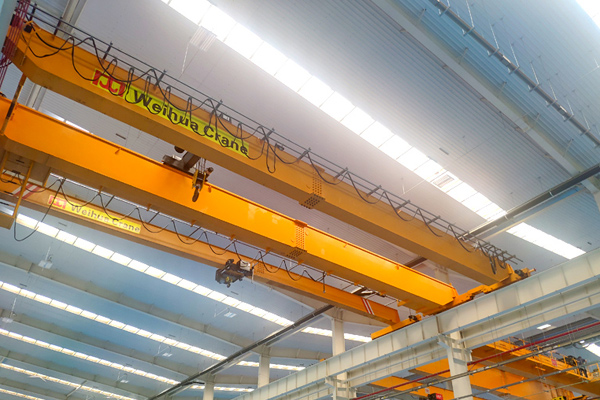

Overhead Crane Installation for Mexico Manufacturing Plant
