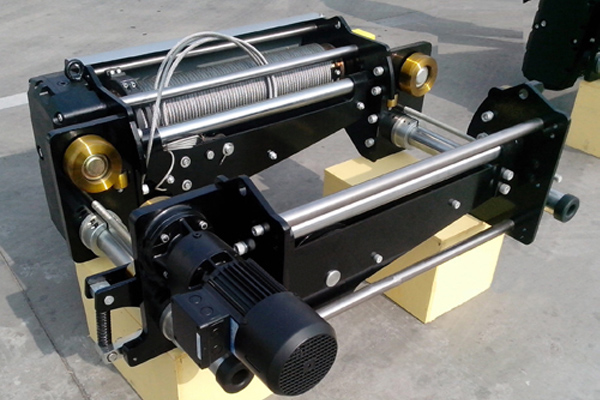

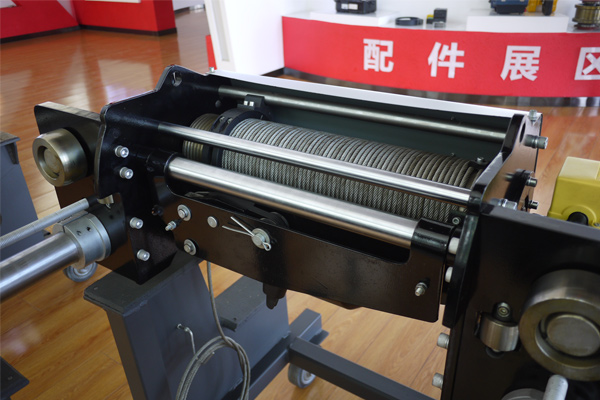

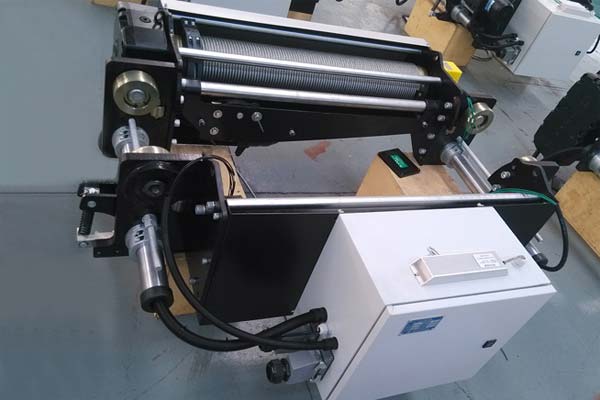

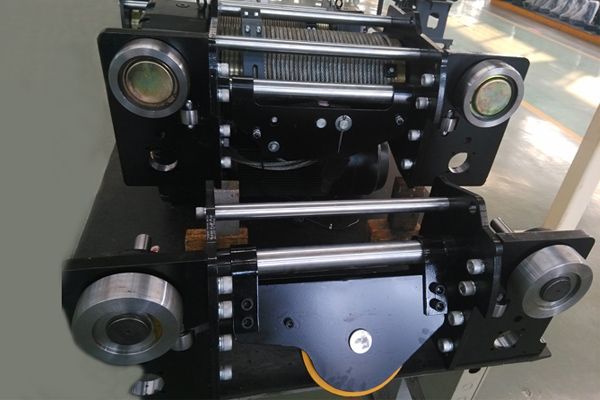

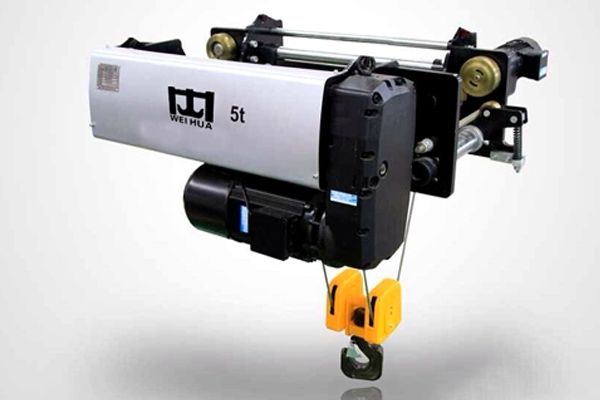

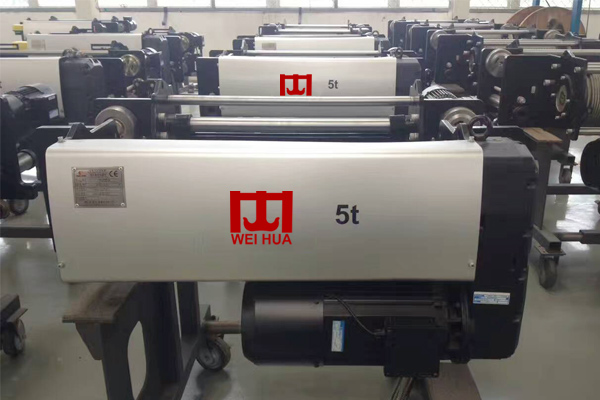

Product Name: ND Wire-Rope Electric Hoist
Lifting Weight: 1t-12.5t
Lifting Height: 6m, 9m, 12m, 15m
Working Level: A5
Equipped with intelligent safe operation monitoring recorder like the “black box” on plane which can uninterruptedly record working status and prevent unprofessional operations.
Maintenance-free design of whole body and less wearing parts make it convenient to maintain.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
Read More >1. Product Name/Model: Wire-rope electric hoist ND.
2. Designed and developed with the FEM standard, advanced idea and beautiful exterior.
3. The gear motor use China's advanced point-line meshing gear structure. ND wire rope electric hoist is easy and convenient to handle with the compact and reasonable whole structure.
4. It is safe and efficient to operate, and meet current requirements of low noise and environmental protection.
5. Using 13 proprietary technologies and utilize frequency control design to reduce the impact force to accomplish precise positioning.
6. Equipped with intelligent safe operation monitoring recorder like the 'black box' on plane which can uninterruptedly record working status and prevent unprofessional operations.
7. Maintenance-free design of whole body and less wearing parts make ND wire rope electric hoist convenient to maintain.
.jpg)
|
Model |
Lifting Weight |
Lifting Height |
Lifting Speed |
Running Speed |
Working Level |
Rope |
Weight |
|
t |
m |
m/min |
m/min |
|
|
kgs |
|
|
ND 1.6T-12M |
1.6 |
12 |
1.6/10 |
2~20 |
M5 |
1/2 |
370 |
|
ND 2.5T-12M |
2.5 |
12 |
0.8/5.0 |
2~20 |
M5 |
1/4 |
385 |
|
ND 3.2T-12M |
3.2 |
12 |
0.8/5.0 |
2~20 |
M5 |
1/4 |
405 |
|
ND 6.3T-12M |
6.3 |
12 |
0.8/5.0 |
2~20 |
M5 |
1/4 |
500 |
|
ND 8T-12M |
8 |
12 |
0.8/5.0 |
2~20 |
M5 |
1/4 |
640 |
|
ND 10T-12M |
10 |
12 |
0.8/5.0 |
2~20 |
M5 |
1/4 |
640 |
|
NH 10T-12M |
10 |
12 |
0.66/4.0 |
2~20 |
M5 |
1/4 |
730 |
|
ND 12.5T-12M |
12.5 |
12 |
0.66/4.0 |
2~20 |
M5 |
1/4 |
740 |
|
Note: Lifting height can be customized i.e. 6m, 9m, 20m. |
|||||||
