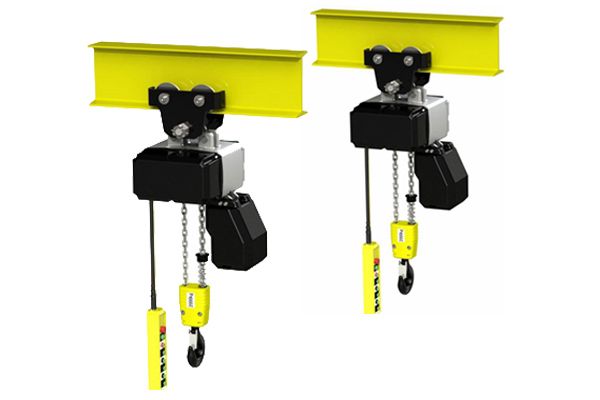

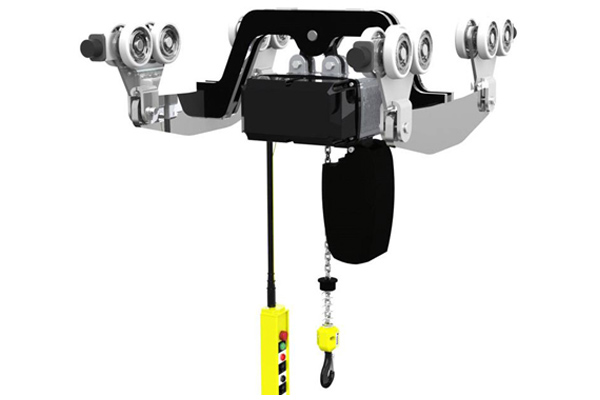

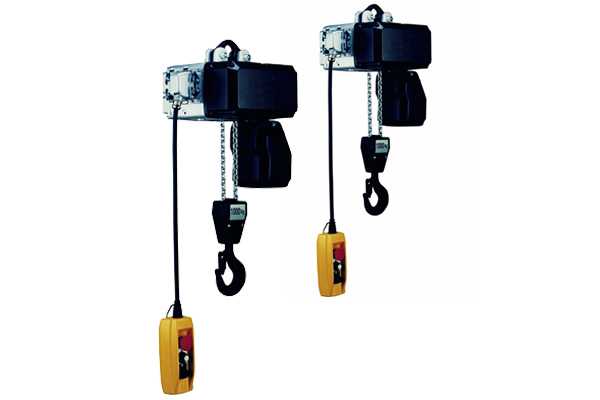

Product Name: NL Electric Chain Hoist
Lifting Capacity: 0.1t ~5t.
Lifting Height: 3-8m
Power: 0.9-4.8Kw
NL electric chain hoist is designed and produced according to FEM/DIN standard with modularized design of motor and reducer, which makes this hoist can be operated with different lifting speeds.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
Read More >NL electric chain hoist is designed and produced according to FEM/DIN standard with modularized design of motor and reducer, which makes this electric chain hoist can be operated with different lifting speeds. It adopts high quality German low noise motor, aluminum alloy shell and hardened surface reducer. This electric chain hoist is mainly employed to lift small size goods in the processing line of auto parts manufacturing, packing and painting.
Lifting capacity: 0.1t ~5t
Characters of NL electric chain hoist: advanced performance structure, small volume, light weight, reliable performance, easy to handle, wide using scope, convenient to lift heavies, load and unload, maintain equipment, and lift cargos, and it also can be installed on a suspended I-beam, curve track, cantilever crane track and fixed point to lift heavies. This electric chain hoist is the best helper for contemporary enterprises to manufacture products and carry materials.
.jpg)
|
Capacity (t) |
Model |
Lifting Speed (m/min) |
Power (Kw) |
Lifting Height (m) |
Lifting Rate |
Working Level FEM/ISO |
|
0.25 |
NLG20250 |
2.8/8.0 |
0.9/0.36 |
3~8 |
1/1 |
1Am/M4 |
|
0.32 |
NLG20320 |
2.8/8.0 |
1.18/0.75 |
1/1 |
3m/M6 |
|
|
0.5 |
NLG20500 |
2.8/8.0 |
1.18/0.75 |
1/1 |
1Am/M5 |
|
|
0.63 |
NLG20630 |
2.5/10 |
0.45/1.90 |
2/1 |
2m/M5 |
|
|
1 |
NLG31000 |
2.5/10 |
0.45/1.90 |
1/1 |
1Bm/M3 |
|
|
1.5 |
NLG31500 |
1.25/5.0 |
0.75/3.0 |
1/1 |
1Am/M4 |
|
|
2 |
NLG32000 |
1.25/5.0 |
0.45/1.90 |
2/1 |
1Am/M4 |
|
|
2.5 |
NLG32500 |
1.25/5.0 |
1.2/4.8 |
1/1 |
1Am/M4 |
|
|
3 |
NLG33000 |
1.25/5.0 |
0.75/3.0 |
2/1 |
1Am/M4 |
|
|
5 |
NLG35000 |
1.25/5.0 |
1.2/4.8 |
2/1 |
1Am/M4 |
