As the opening work of the construction of the new outlet of Tongzhou Bay
Lu Sigang embraces the river and the sea and was born because of the port
Recently, Weihua rail-mounted container gantry crane
Shore container crane, four-link gantry crane
Successful delivery of many series of port machinery products

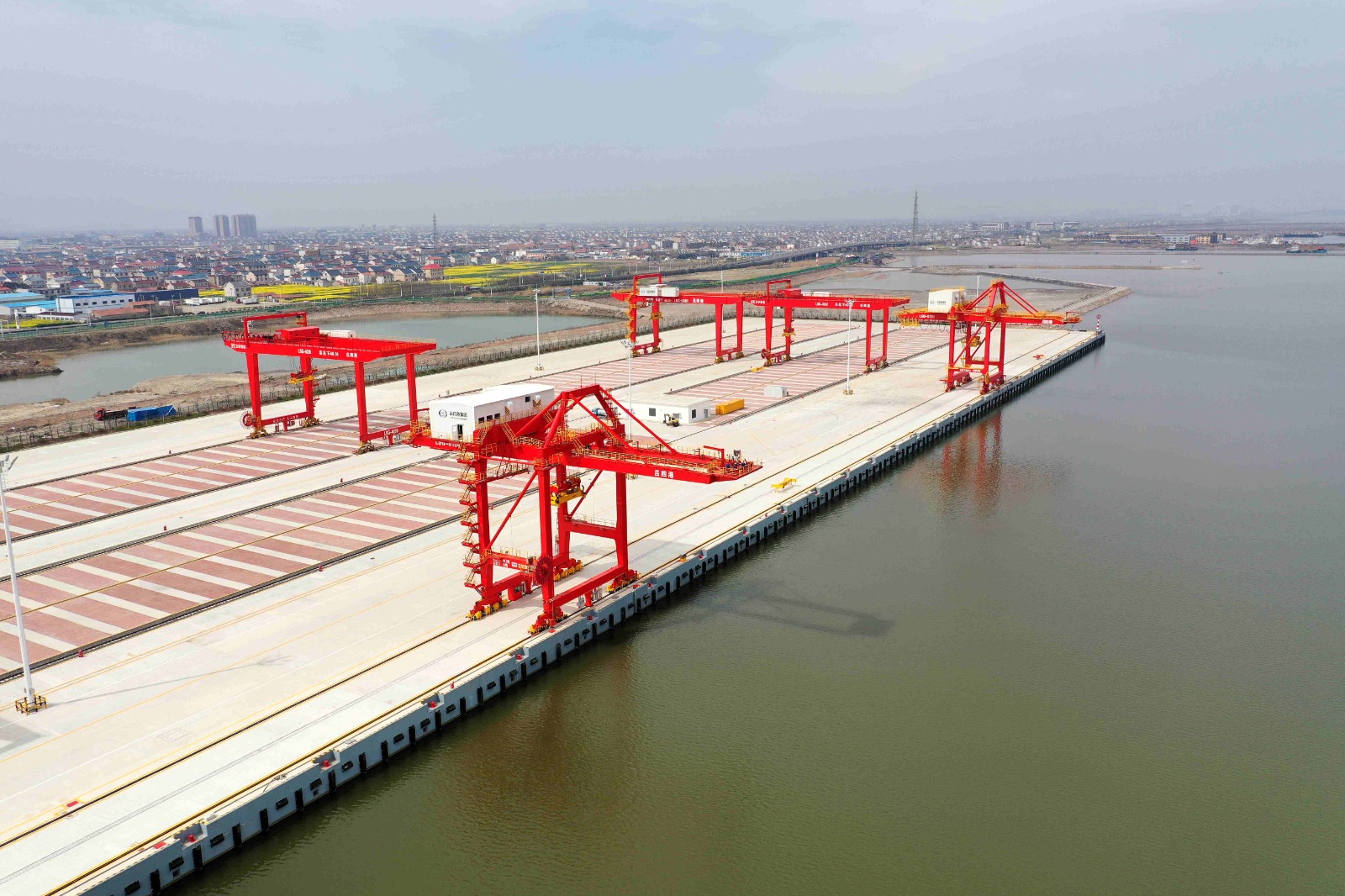

Lusi Starting Port Container Terminal
Hardcore strives for intelligent and green development of ports
Help Lusi Port to build the first seaport in the north wing of Shanghai

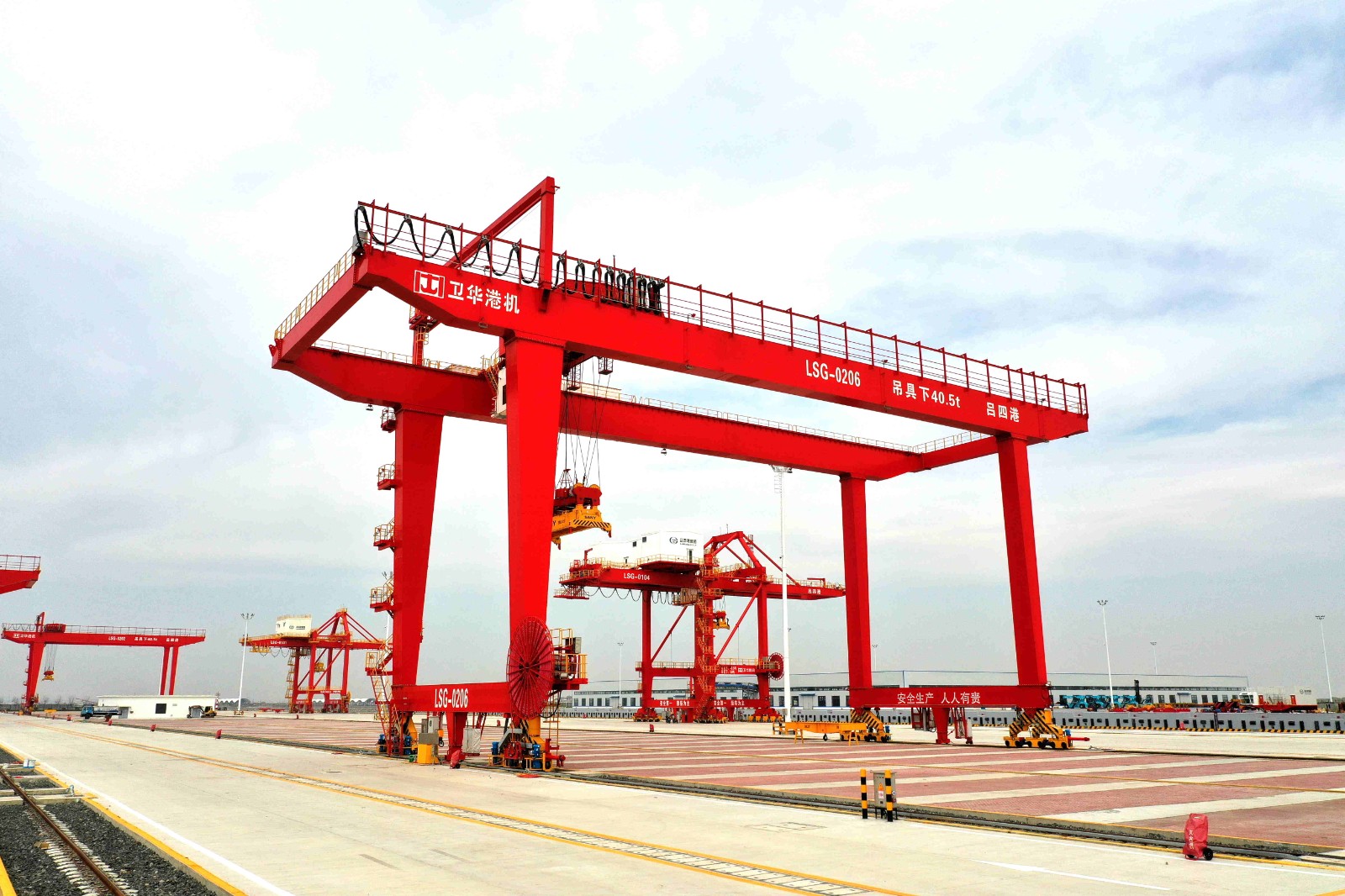

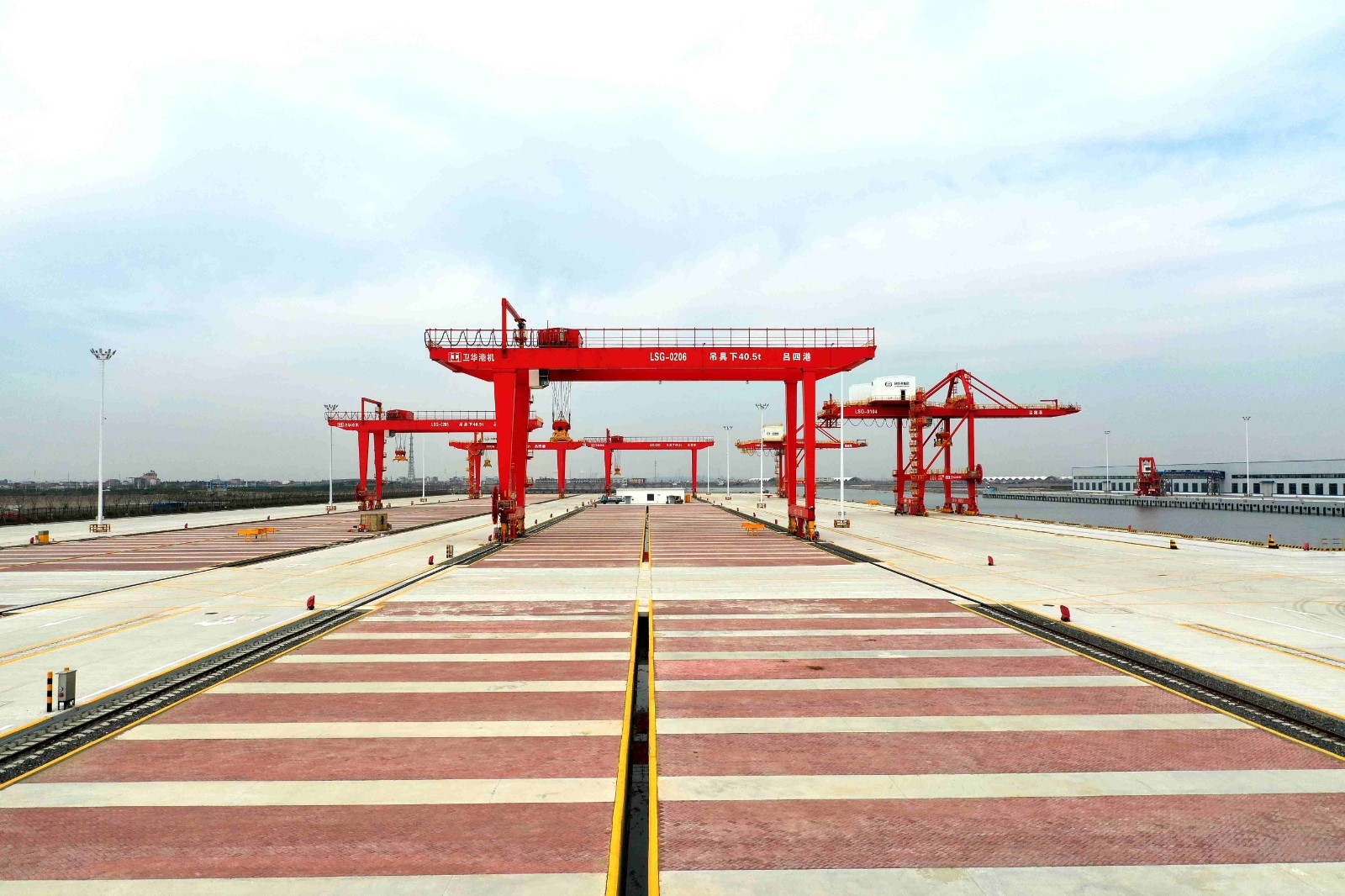

01 Rail-mounted container gantry crane
Application scenarios
The main mechanisms of the product include hoisting mechanism, trolley operation, large truck operation, etc., which are used to undertake container loading, unloading and transshipment work in the back yard of the Lusi Port operation area.
Product features
1. The low-speed braking system of the whole machine adopts a new self-contained backpack hydraulic station brake, which has an ultra-high safety factor and maintenance-free characteristics;
2. The lifting and winding of the wire rope adopts a flexible two-way anti-sway system, which significantly reduces the amount of swing and improves operating efficiency and safety;
3. The main mechanism adopts a variable frequency speed regulation system and is equipped with complete safety protection devices, which has high operating efficiency, safety and reliability;
4. From transformers to motors, products with higher energy efficiency are selected. At the same time, the vector control inverter system can convert excess energy into the power grid, saving more than 15% energy than ordinary crane products;
5. The driver's cab and electrical room can monitor the crane's operating data in real time, and have functions such as operation information query, weighing data query, fault record query, and fault history record retrieval.

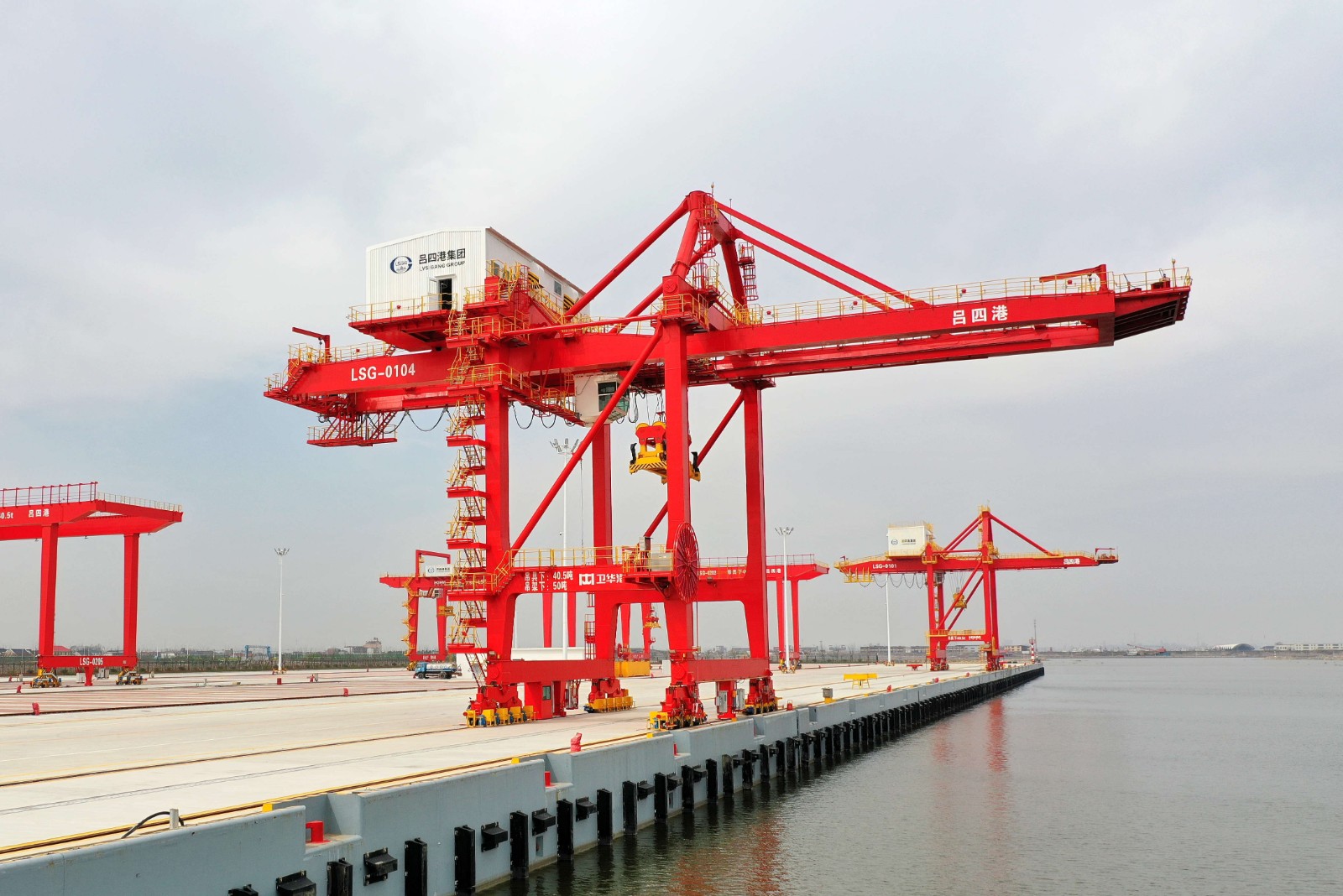

02 Shore Container Crane
Application scenarios
The main mechanisms of this product include a lifting mechanism, trolley traction, tilting device, cart operation, and emergency mechanism. The machine room is equipped with a full-scale maintenance crane for parts maintenance, and is used to undertake container loading, unloading and transshipment work at the front of the terminal in the Lvsi Port operation area.
Product features
1. The whole machine adopts PLC control system, full frequency stepless speed regulation and fault monitoring system;
2. Reserve the electronic control remote control interface for the later modification and addition of the terminal's remote control system and its supporting auxiliary systems to realize the needs of remote control and automated intelligent loading and unloading operations;
3. The cab is equipped with an intelligent all-Chinese "status monitoring control screen" to implement fault monitoring and provide troubleshooting assistance; to realize dynamic monitoring of operating status and provide dynamically changing graphic and text display; and it also has functions such as safety information alarm and lubrication maintenance management.

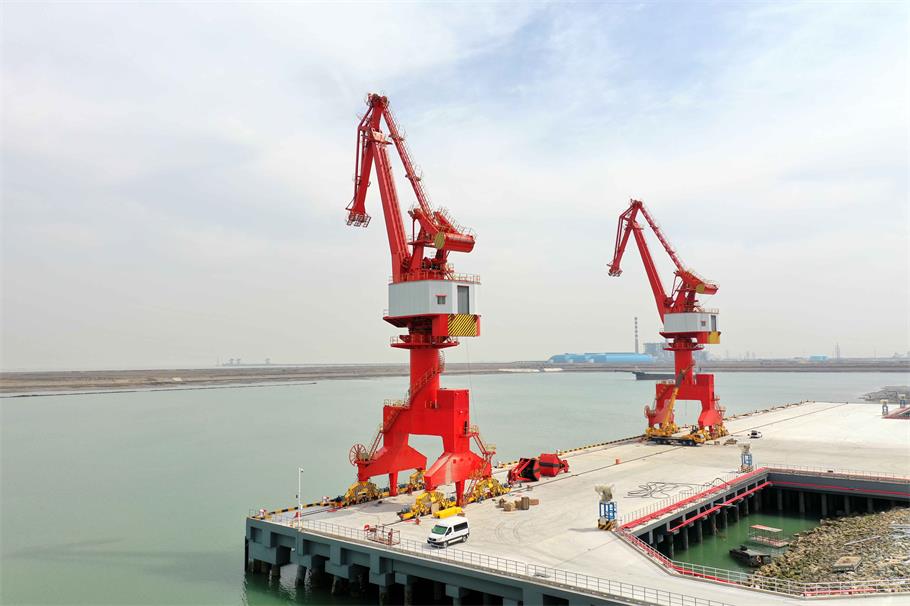

03 Four-link gantry crane
Application scenarios
This product is a multi-purpose gantry crane with a four-link combined boom structure. It is installed on the special track of Lusi Port Terminal and is used for unloading operations of ore, coal and other bulk materials from bulk carriers and loading and unloading of general cargo at the terminal.
Technical features
1. The product adopts a boom structure design with high stability and minimum horizontal drop of heavy objects when changing amplitude;
2. The hook and bulk cargo grab are integrated into one, which can be realizedNow one machine has multiple functions;
3. Each main working mechanism adopts fully digital AC frequency conversion, PLC control speed regulation, and applies intelligent path optimization technology. Each working mechanism operates quickly, works stably, saves energy and reduces consumption, and has high equipment loading and unloading efficiency;
4. It can monitor the pitch, rotation, walking position of the boom and the relative coordinates of the grab in real time, and complete safety protection such as emergency control, pedestrian collision avoidance, co-rail collision avoidance, grab collision avoidance, and over-limit detection to ensure safe and reliable operations.
The Lusi starting port area at the new outlet of Tongzhou Bay in Nantong, Jiangsu Province is a major landmark project in building a new gateway for the "One Belt and One Road" opening to the outside world, a new river-sea intermodal transport hub in the Yangtze River Economic Belt, and a new model for high-quality coastal development in Jiangsu Province. It is the first fully intelligent and unmanned container terminal in Jiangsu Province.
Weihua relies on high-quality port machinery products and lifting butler smart services, and independently developed multiple series of port machinery products to serve the front-end terminal and back-end container loading work of Lvsi Port. With its hard core strength, Weihua helps the new outlet of Tongzhou Bay, Shanghai Yangshan Port and Ningbo Zhoushan Port Group to form a new pattern of "one body and two wings" for the Yangtze River Delta port group, creating a new important growth pole for Jiangsu coastal development.
